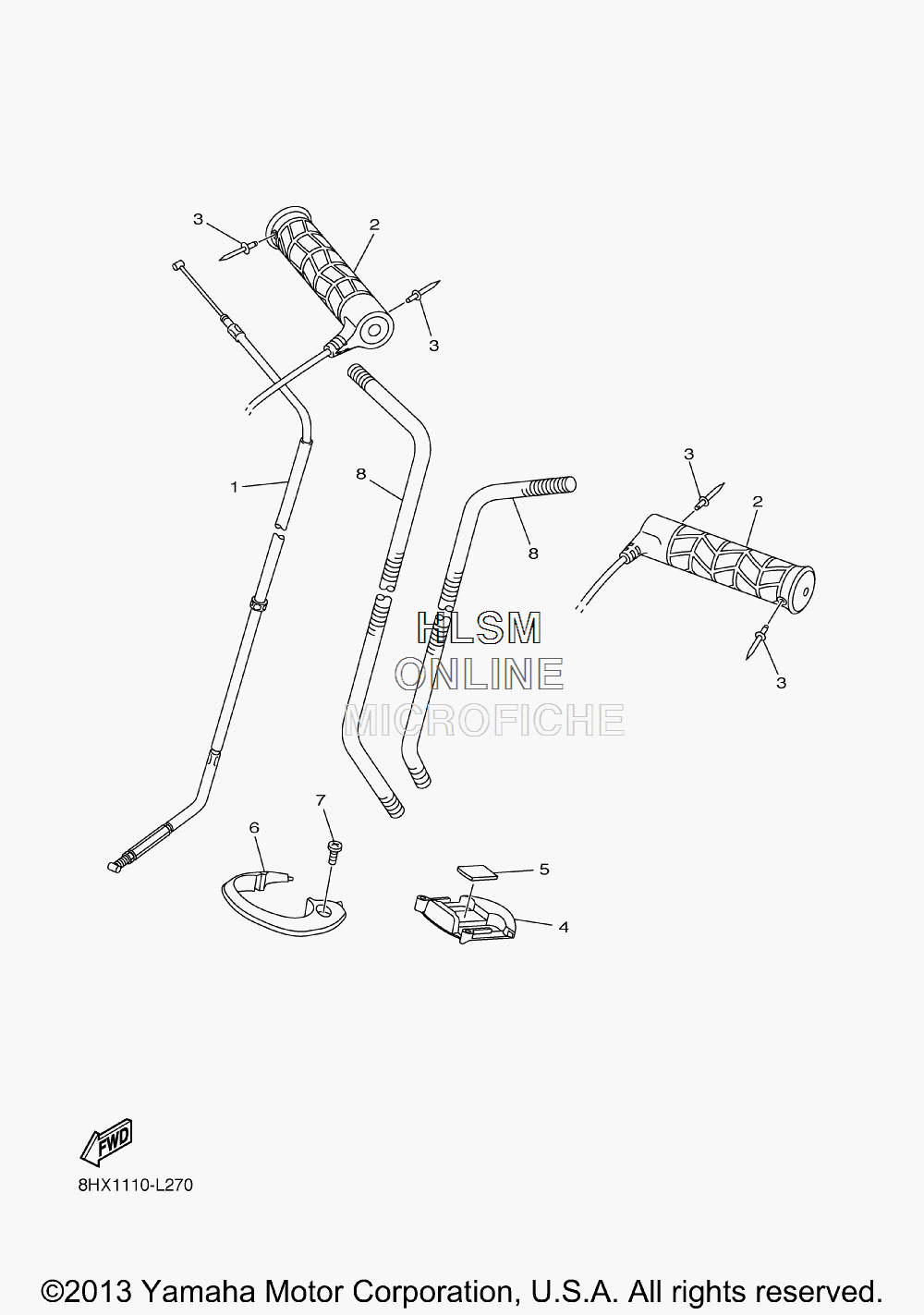

HANDLEBAR - CABLES AND GRIPS для Yamaha RS VENTURE GT - 2014 года выпуска`
-
№АртикулНазвание
-
18HX-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28GC-26240-01-00 GRIP ASSYGRIP ASSY
-
390267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
48FP-26144-00-00 COVER, HANDLEBAR LOWER 1COVER, HANDLEBAR LOWER 1
-
58FP-26113-00-00 DAMPERDAMPER
-
68FP-26146-00-00 COVER, HANDLEBAR LOWER 2COVER, HANDLEBAR LOWER 2
-
790154-05041-00 SCREW, BINDINGSCREW, BINDING
-
88FP-82351-00-00 TUBE, CORDTUBE, CORD
