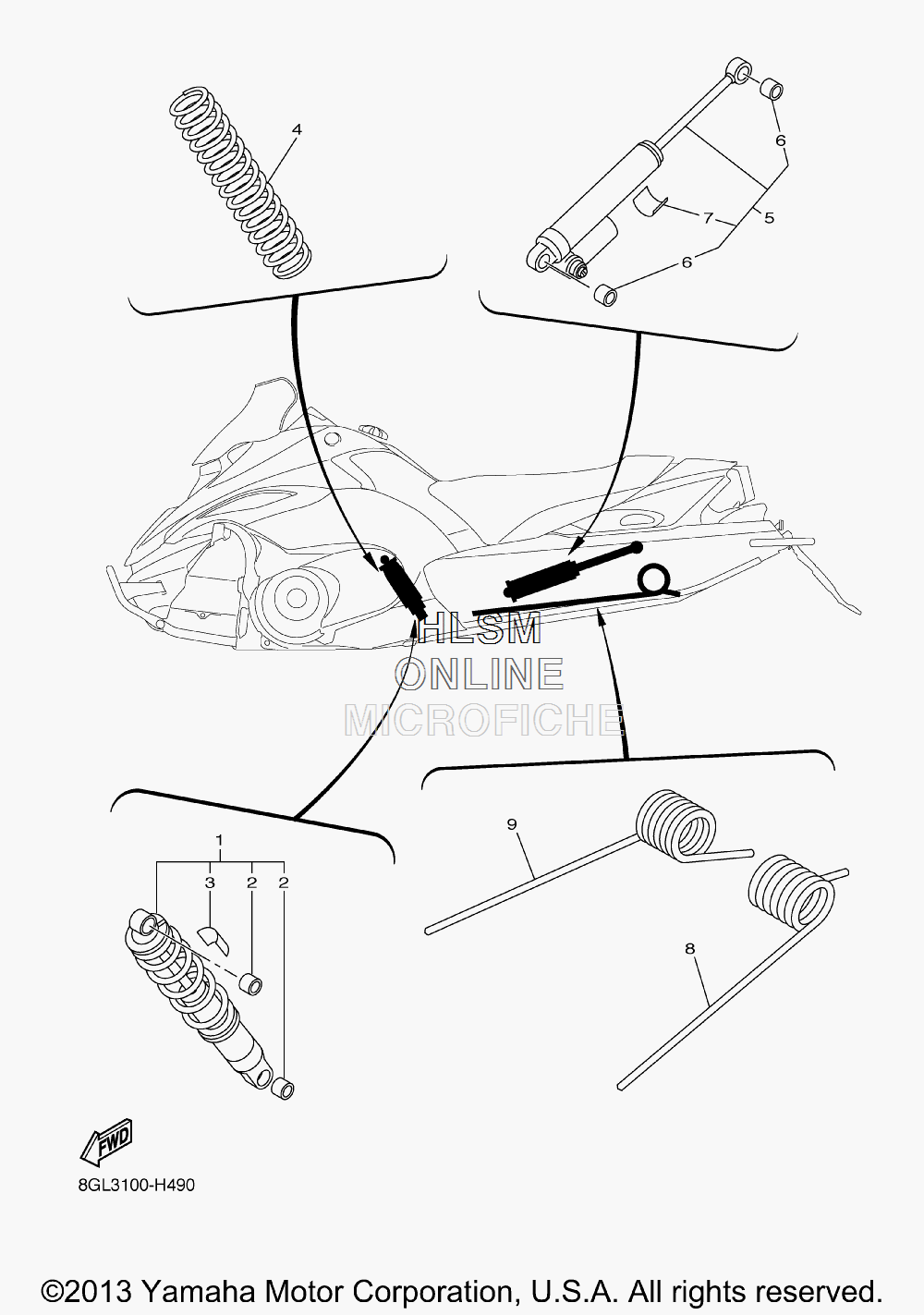

SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS для Yamaha FX NYTRO - 2014 года выпуска`
-
№АртикулНазвание
-
18GL-47481-A0-00 SHOCK ABSORBER 2 (OPT)SHOCK ABSORBER 2 (OPT)
-
18GL-47481-30-00 SHOCK ABSORBER 2 (OPT)SHOCK ABSORBER 2 (OPT)
-
290384-17N50-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
34AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
48GL-47336-10-00 SPRING, 2 (K=30N/MM)SPRING, 2 (K=30N/MM)
-
58GL-47480-A0-00 SHOCK ABSORBER (OPT)SHOCK ABSORBER (OPT)
-
58GL-47480-60-00 SHOCK ABSORBER (OPT)SHOCK ABSORBER (OPT)
-
690384-17N50-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
74AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
88GL-47473-00-00 SPRING, REAR 1 (K=1900NMM/DEG) (OPT)SPRING, REAR 1 (K=1900NMM/DEG) (OPT)
-
88GL-47473-10-00 SPRING, REAR 1 (K=2100NMM/DEG) (OPT)SPRING, REAR 1 (K=2100NMM/DEG) (OPT)
-
88GL-47473-20-00 SPRING, REAR 1 (K=1400NMM/DEG) (OPT)SPRING, REAR 1 (K=1400NMM/DEG) (OPT)
-
98GL-47474-00-00 SPRING, REAR 2 (K=1900NMM/DEG) (OPT)SPRING, REAR 2 (K=1900NMM/DEG) (OPT)
-
98GL-47474-10-00 SPRING, REAR 2 (K=2100NMM/DEG) (OPT)SPRING, REAR 2 (K=2100NMM/DEG) (OPT)
-
98GL-47474-20-00 SPRING, REAR 2 (K=1400NMM/DEG) (OPT)SPRING, REAR 2 (K=1400NMM/DEG) (OPT)
