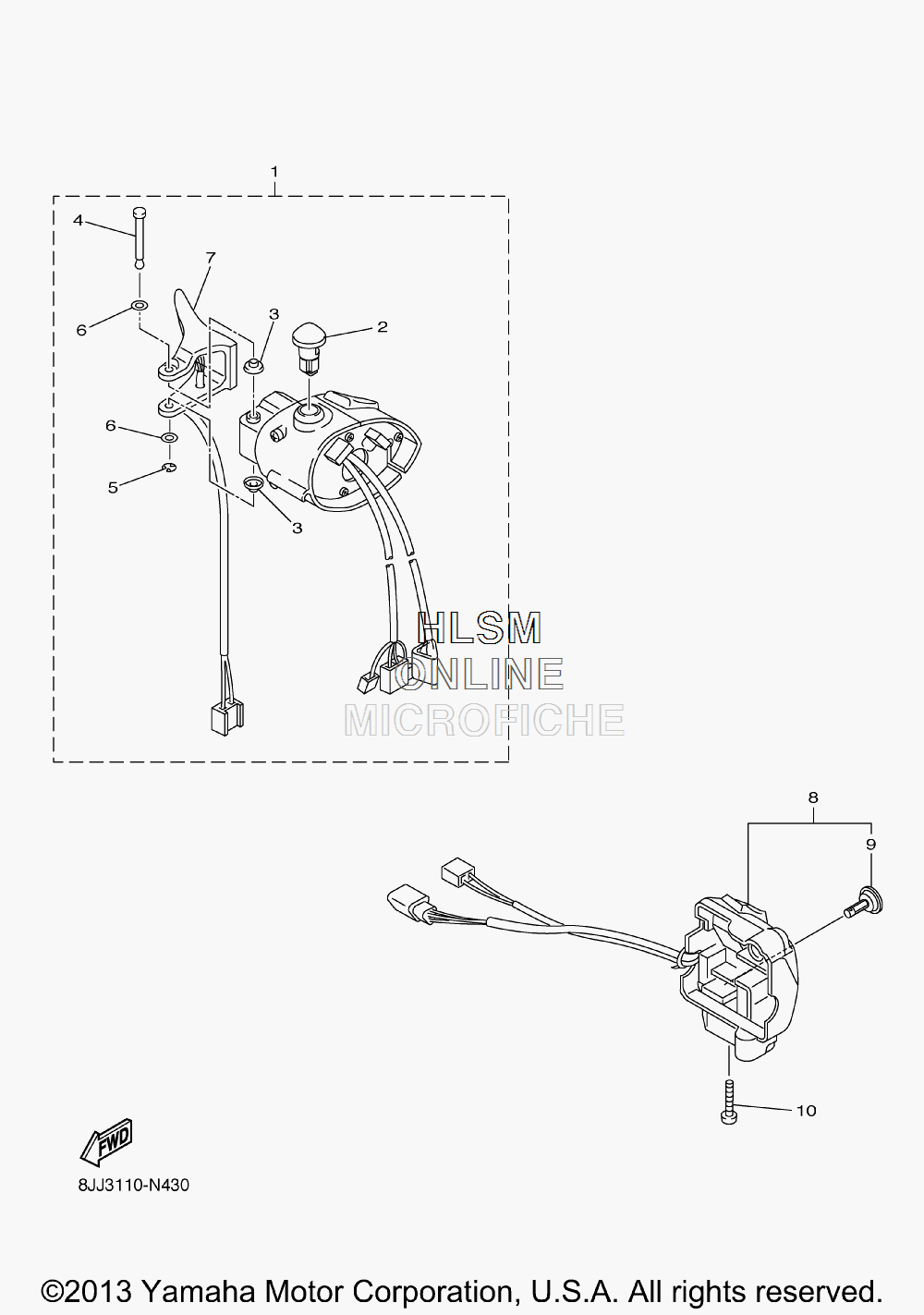

HANDLEBAR - SWITCHES AND LEVERS для Yamaha FX NYTRO - 2014 года выпуска`
-
№АртикулНазвание
-
18GL-82720-10-00 LEVER HOLDER ASSY (RIGHT)LEVER HOLDER ASSY (RIGHT)
-
28GL-86284-09-00 ...STOP SWITCH...STOP SWITCH
-
385G-83956-00-00 ...CAP 1...CAP 1
-
48R6-8399F-00-00 ...SHAFT...SHAFT
-
599001-04600-00 ...CIRCLIP...CIRCLIP
-
68FP-82558-00-00 ...WASHER...WASHER
-
78GL-82970-00-00 ...THUMB WARMER ASSY...THUMB WARMER ASSY
-
88FS-83973-00-00 SWITCH, HANDLE 3SWITCH, HANDLE 3
-
98GL-82526-09-00 ...SWITCH, LAMP...SWITCH, LAMP
-
1098502-05016-00 SCREW, PAN HEADSCREW, PAN HEAD
