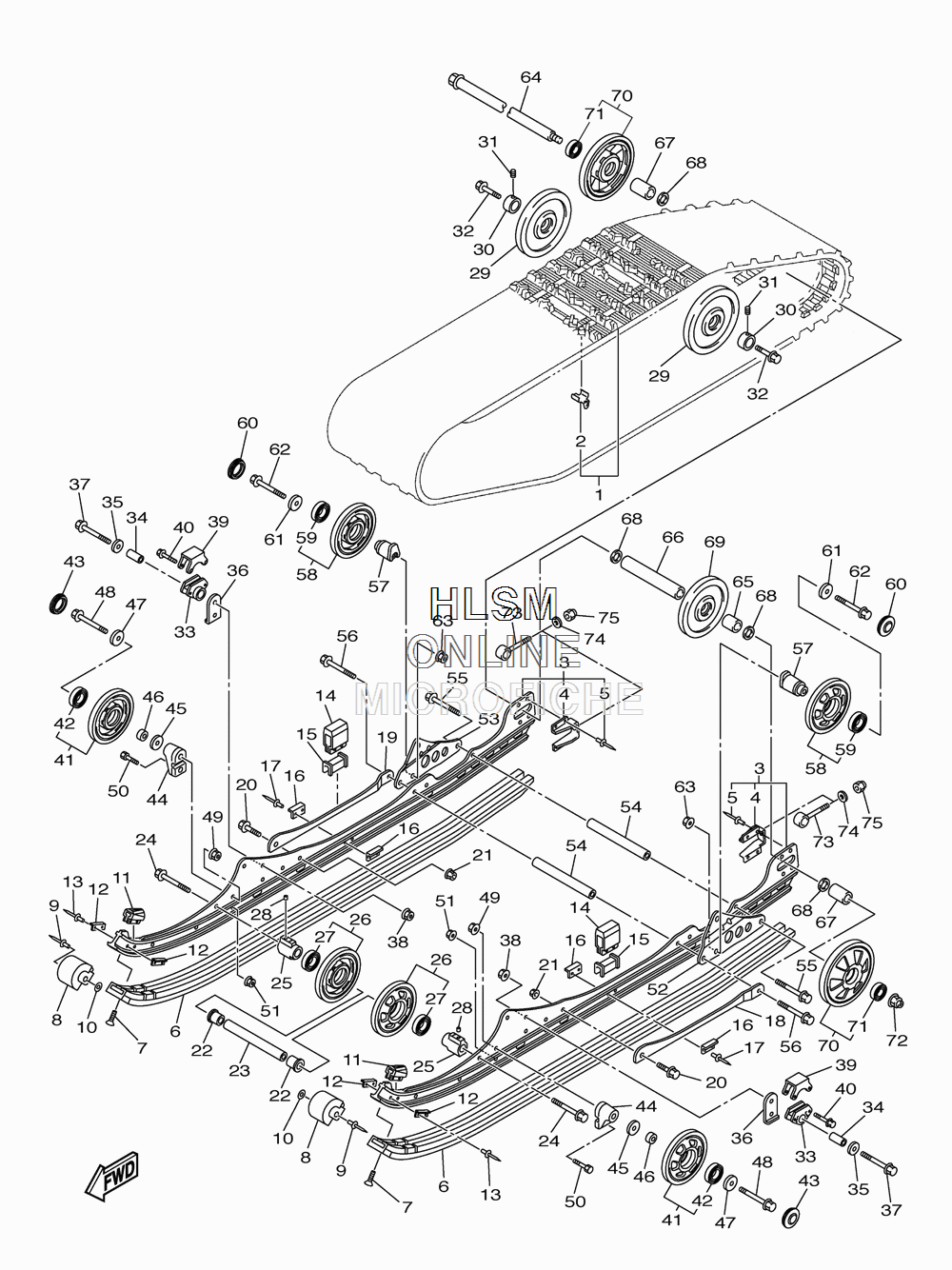

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO XTX - 2013 года выпуска`
-
№АртикулНазвание
-
18ET-47110-10-00 TRACK ASSYTRACK ASSY
-
28FA-47115-09-00 ...METAL, SLIDE...METAL, SLIDE
-
38HL-W4741-10-00 FRAME, SLIDINGFRAME, SLIDING
-
48DM-4741B-00-00 ...BRACKET...BRACKET
-
58V0-47468-00-00 ...RIVET...RIVET
-
68HL-47421-10-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
790151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
88GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
990267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
1090201-047R8-00 WASHER, PLATEWASHER, PLATE
-
118ES-47456-00-00 DAMPER 1DAMPER 1
-
128K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1390267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
148CM-47457-00-00 DAMPER 2DAMPER 2
-
158HL-47341-00-00 SPACERSPACER
-
168AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1790267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
188HL-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
198HL-4741D-00-00 FRAME, SLIDING DFRAME, SLIDING D
-
2095812-10025-00 .BOLT, FLANGE.BOLT, FLANGE
-
2195602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
2290386-20001-00 BUSHBUSH
-
238GN-47487-00-00 SHAFT 5SHAFT 5
-
2490105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
258ES-47319-10-00 COLLARCOLLAR
-
268HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2793306-00507-00 ...BEARING...BEARING
-
2890113-06039-00 BOLT, SETBOLT, SET
-
298CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
308ES-47365-00-00 COLLAR 1COLLAR 1
-
3190113-06039-00 BOLT, SETBOLT, SET
-
3290105-103A1-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
338JJ-47446-00-00 HOOK 1HOOK 1
-
3490387-10081-00 COLLARCOLLAR
-
3590201-100S0-00 WASHER, PLATEWASHER, PLATE
-
368HL-47374-00-00 WASHER 1WASHER 1
-
3795812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
398JJ-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
4097022-05030-00 BOLTBOLT
-
418HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4293306-00507-00 ...BEARING...BEARING
-
438HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
448CM-47419-10-00 BRACKET 7BRACKET 7
-
4590201-10714-00 WASHER, PLATEWASHER, PLATE
-
4690387-10031-00 COLLARCOLLAR
-
4790201-101U2-00 WASHER, PLATEWASHER, PLATE
-
4890105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
4995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
5090101-08063-00 BOLTBOLT
-
5195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
528HL-47463-00-00 BRACKET 5BRACKET 5
-
538HL-47464-00-00 BRACKET 6BRACKET 6
-
548HL-47485-00-00 SHAFT 3SHAFT 3
-
5590105-08150-00 BOLT, FLANGEBOLT, FLANGE
-
5690105-08228-00 BOLT, FLANGEBOLT, FLANGE
-
578ES-47419-00-00 BRACKET 7BRACKET 7
-
588HF-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
5993306-00507-00 ...BEARING...BEARING
-
608HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
6190201-101U2-00 WASHER, PLATEWASHER, PLATE
-
6290105-10233-00 BOLT, FLANGEBOLT, FLANGE
-
6395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
648L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
6590387-20015-00 COLLARCOLLAR
-
6690387-20016-00 COLLARCOLLAR
-
6790387-20019-00 COLLARCOLLAR
-
6890201-205R6-00 WASHER, PLATEWASHER, PLATE
-
698CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
708HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
7193306-00444-00 ...BEARING...BEARING
-
7295602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
738DM-47479-00-00 COLLAR 3COLLAR 3
-
7492902-10600-00 WASHER, PLATEWASHER, PLATE
-
7595702-10300-00 NUT, NYLONNUT, NYLON
