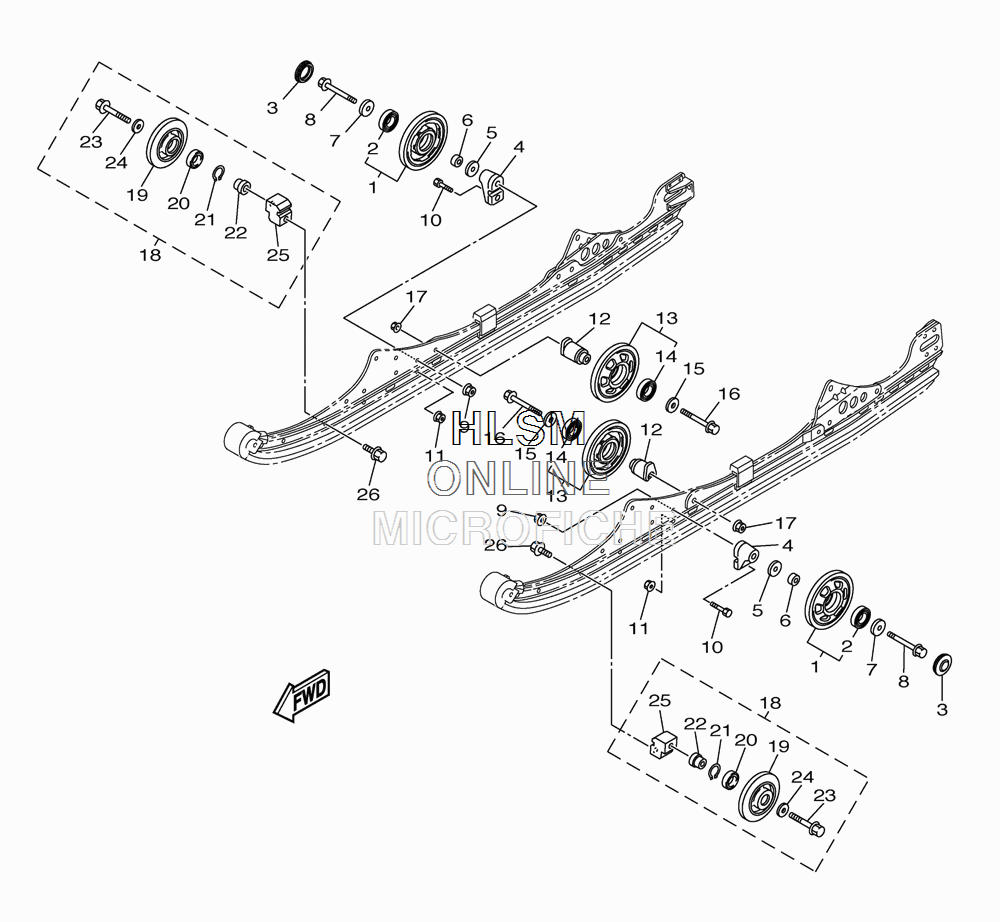

ALTERNATE (TRACK SUSPENSION) для Yamaha FX NYTRO XTX - 2013 года выпуска`
-
№АртикулНазвание
-
18HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
293306-00507-00 ...BEARING...BEARING
-
38HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
48CM-47419-10-00 BRACKET 7BRACKET 7
-
590201-10714-00 WASHER, PLATEWASHER, PLATE
-
690387-10031-00 COLLARCOLLAR
-
790201-101U2-00 WASHER, PLATEWASHER, PLATE
-
890105-10241-00 BOLT, FLANGEBOLT, FLANGE
-
995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1090101-08063-00 BOLTBOLT
-
1195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
128ES-47419-00-00 BRACKET 7BRACKET 7
-
138HF-47310-10-00 SUSPENSION WHEEL ASSY (BLACK)SUSPENSION WHEEL ASSY (BLACK)
-
1493306-00507-00 ...BEARING...BEARING
-
1590201-101U2-00 WASHER, PLATEWASHER, PLATE
-
1690105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
1795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
188GP-47320-10-00 SUSPENSION WHEEL COMP.SUSPENSION WHEEL COMP.
-
198AC-47320-00-00 ...SUSPENSION WHEEL COMP....SUSPENSION WHEEL COMP.
-
2093306-00444-00 ...BEARING...BEARING
-
2199009-42500-00 ...CIRCLIP...CIRCLIP
-
228GP-47319-00-00 ...COLLAR...COLLAR
-
2395812-10045-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2490201-10052-00 ...WASHER, PLATE...WASHER, PLATE
-
258GP-47419-10-00 ...BRACKET 7...BRACKET 7
-
2690105-10237-00 BOLT, FLANGEBOLT, FLANGE
