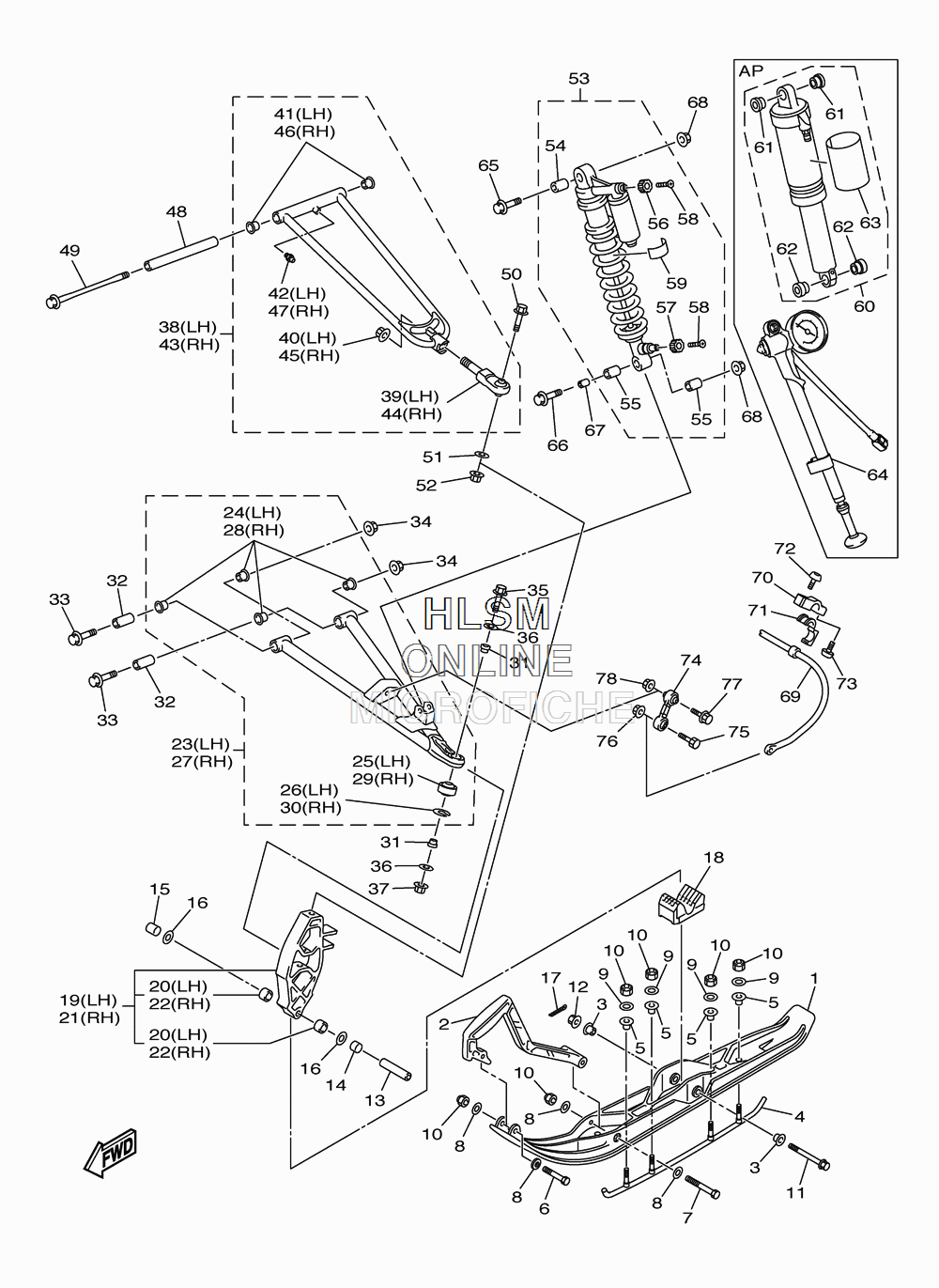

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO - 2012 года выпуска`
-
№АртикулНазвание
-
18HV-F3711-00-00 SKI 1SKI 1
-
28HG-F3712-20-00 REINFORCEMENT, HEADREINFORCEMENT, HEAD
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48HG-F3731-00-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
68HG-F3755-00-00 BOLT, REINFORCEMENT HEAD 1BOLT, REINFORCEMENT HEAD 1
-
78HG-F3756-10-00 BOLT, REINFORCEMENT HEAD 2BOLT, REINFORCEMENT HEAD 2
-
88HG-F3737-00-00 WASHER 1WASHER 1
-
98HG-F3738-00-00 WASHER 2WASHER 2
-
108HG-F3778-00-00 NUTNUT
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16018-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188HL-23743-10-00 STOPPER 1STOPPER 1
-
198HK-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
218HK-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238HK-23570-10-P0 FRONT LOWER ARM COMP. (LEFT) (SILVER)FRONT LOWER ARM COMP. (LEFT) (SILVER)
-
2490381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
258HK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-35700-00 ...CIRCLIP...CIRCLIP
-
278HK-23580-10-P0 FRONT LOWER ARM COMP. (RIGHT) (SILVER)FRONT LOWER ARM COMP. (RIGHT) (SILVER)
-
2890381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
298HK-23579-00-00 BALL JOINT 2BALL JOINT 2
-
3099009-35700-00 CIRCLIPCIRCLIP
-
318HK-23754-00-00 COLLAR, 1COLLAR, 1
-
3290387-10065-00 COLLARCOLLAR
-
3390105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3495602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3590105-10318-00 BOLT, FLANGEBOLT, FLANGE
-
3690201-10052-00 WASHER, PLATEWASHER, PLATE
-
3795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
388HK-23540-10-P0 FRONT UPPER ARM COMP. (LEFT) (SILVER)FRONT UPPER ARM COMP. (LEFT) (SILVER)
-
398GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4095602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4190381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4293700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
438HK-23550-10-P0 FRONT UPPER ARM COMP. (RIGHT) (SILVER)FRONT UPPER ARM COMP. (RIGHT) (SILVER)
-
448GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4595602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4690381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
4793700-06004-00 ...NIPPLE, GREASE...NIPPLE, GREASE
-
488HK-23373-00-00 COLLAR 1COLLAR 1
-
4990105-10353-00 BOLT, FLANGEBOLT, FLANGE
-
5091312-10045-00 BOLTBOLT
-
5190201-10052-00 WASHER, PLATEWASHER, PLATE
-
5295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
538GL-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
548FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
5590384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
565EA-22464-00-00 ...KNOB (COMP)...KNOB (COMP)
-
575JW-2319W-00-00 ...KNOB (TEN)...KNOB (TEN)
-
5890142-03N01-00 ...SCREW, COUNTERSUNK...SCREW, COUNTERSUNK
-
594AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
608HB-F376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
618HR-2376B-09-00 ...BUSH...BUSH
-
628HR-2376B-19-00 ...BUSH...BUSH
-
638GT-F2259-50-00 ...LABEL, WARNING...LABEL, WARNING
-
648GT-F3703-00-00 ADJUSTERADJUSTER
-
6590105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
6690105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
6790387-10N59-00 COLLARCOLLAR
-
6895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
698GN-2386E-10-00 BAR, STABILIZER FRONT (15MM WHITE)BAR, STABILIZER FRONT (15MM WHITE)
-
708GL-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
718GN-2386G-10-00 BUSH, STABILIZER FRONT (15.1MM)BUSH, STABILIZER FRONT (15.1MM)
-
7292012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
7392012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
748GN-2385L-10-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7597012-10035-00 BOLTBOLT
-
7695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
7795812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
7895602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
