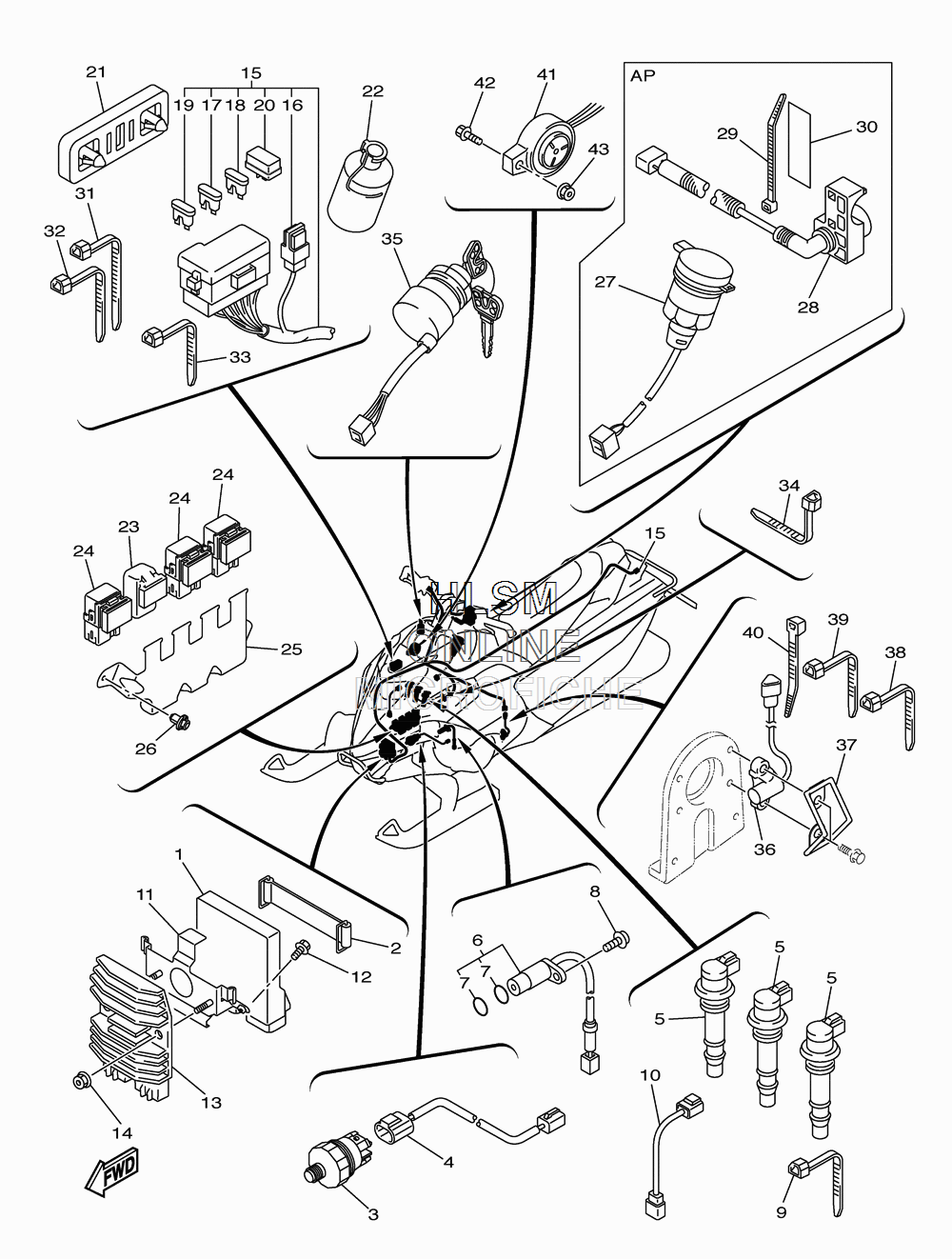

ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES для Yamaha FX NYTRO - 2012 года выпуска`
-
№АртикулНазвание
-
18GL-8591A-10-00 ENGINE CONTROL UNIT ASSYENGINE CONTROL UNIT ASSY
-
22T4-82131-00-00 BAND, BATTERYBAND, BATTERY
-
38FP-82504-00-00 OIL PRESSURE SWITCH ASSYOIL PRESSURE SWITCH ASSY
-
48GL-82318-00-00 WIRE, SUB-LEADWIRE, SUB-LEAD
-
58ES-82310-00-00 IGNITION COIL ASSYIGNITION COIL ASSY
-
68GL-81670-00-00 PICK-UP ASSYPICK-UP ASSY
-
75VY-8A8E1-00-00 ...O-RING 1...O-RING 1
-
890110-06218-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
990464-13073-00 CLAMPCLAMP
-
108GL-81515-00-00 LEAD WIRE ASSYLEAD WIRE ASSY
-
118GL-85991-00-00 BRACKET, UNITBRACKET, UNIT
-
1295022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
131D7-81960-00-00 RECTIFIER AND REGULATOR ASSYRECTIFIER AND REGULATOR ASSY
-
1495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
158HK-82590-20-00 WIRE HARNESS ASSYWIRE HARNESS ASSY
-
165PS-82151-00-00 ...FUSE (40A)...FUSE (40A)
-
175JJ-82151-30-00 ...FUSE (10A-BL)...FUSE (10A-BL)
-
185JJ-82151-20-00 ...FUSE (20A-BL)...FUSE (20A-BL)
-
195JJ-82151-50-00 ...FUSE (3A-BL)...FUSE (3A-BL)
-
204WA-81980-00-00 ...DIODE ASSY...DIODE ASSY
-
218FA-83614-00-00 BRACKETBRACKET
-
228GL-8252U-00-00 COVERCOVER
-
235DM-81950-00-00 RELAY ASSY (G8HN-1C4T-DJ-Y52)RELAY ASSY (G8HN-1C4T-DJ-Y52)
-
248HG-81950-09-00 RELAY ASSYRELAY ASSY
-
258GL-81952-00-00 HOLDER, RELAYHOLDER, RELAY
-
2690269-08006-00 RIVETRIVET
-
278FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
288HK-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
2990464-35132-00 CLAMPCLAMP
-
308HF-84527-00-00 DAMPERDAMPER
-
3190464-15195-00 CLAMPCLAMP
-
3290464-13073-00 CLAMPCLAMP
-
3390464-13077-00 CLAMPCLAMP
-
3490464-12045-00 CLAMPCLAMP
-
358HK-82510-00-00 MAIN SWITCH ASSYMAIN SWITCH ASSY
-
368GL-83755-00-00 SENSOR, SPEEDSENSOR, SPEED
-
378GC-2198G-00-00 COVER 2COVER 2
-
3890464-13073-00 CLAMPCLAMP
-
3990464-35132-00 CLAMPCLAMP
-
4090464-15195-00 CLAMPCLAMP
-
418GL-83383-00-00 BUZZERBUZZER
-
4290159-05035-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
4395702-05500-00 NUT, FLANGENUT, FLANGE
