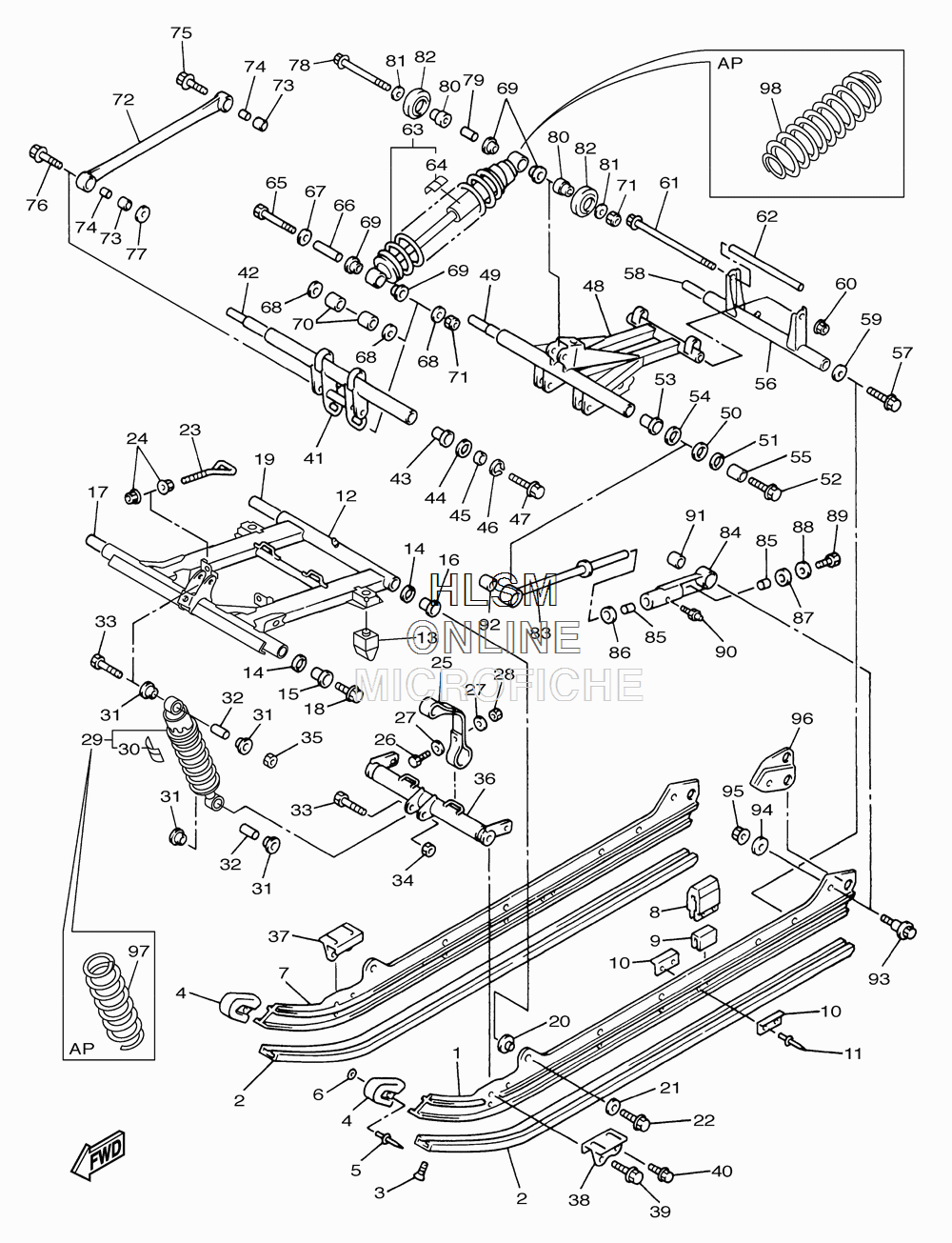

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha VK PRO - 2011 года выпуска`
-
№АртикулНазвание
-
18AC-47411-10-00 FRAME, SLIDING 1FRAME, SLIDING 1
-
28AC-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
390151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
48ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
590267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
690201-047R8-00 WASHER, PLATEWASHER, PLATE
-
78AC-47414-10-00 FRAME, SLIDING 4FRAME, SLIDING 4
-
88AC-47457-00-00 DAMPER 2DAMPER 2
-
98AC-47341-00-00 SPACERSPACER
-
108AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128GS-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
138FN-47456-00-00 DAMPER 1DAMPER 1
-
1490201-210U0-00 WASHER, PLATEWASHER, PLATE
-
1590386-25002-00 BUSHBUSH
-
1690381-19111-00 BUSH, SOLIDBUSH, SOLID
-
178GS-47465-00-00 SHAFT 1SHAFT 1
-
1890105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
1983R-47485-02-00 SHAFT 3SHAFT 3
-
2090387-105G6-00 COLLARCOLLAR
-
2190201-100L3-00 WASHER, PLATEWASHER, PLATE
-
2290105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
238CR-47448-00-00 HOOK 3HOOK 3
-
2495707-08500-00 NUT, FLANGENUT, FLANGE
-
258CV-47495-00-00 STOPPER 1STOPPER 1
-
2697007-06025-00 BOLTBOLT
-
2790201-06747-00 WASHER, PLATEWASHER, PLATE
-
2895707-06300-00 NUT, NYLONNUT, NYLON
-
298FN-47481-30-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
304AA-22259-60-00 LABEL, WARNINGLABEL, WARNING
-
3190381-14101-00 BUSH, SOLIDBUSH, SOLID
-
3290387-105G5-00 COLLARCOLLAR
-
3390101-10738-00 BOLTBOLT
-
3490185-10110-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
3595607-10100-00 NUT, UNUT, U
-
368AC-47418-00-00 BRACKET 4BRACKET 4
-
378DF-47463-01-00 BRACKET 5BRACKET 5
-
388DF-47464-01-00 BRACKET 6BRACKET 6
-
3990105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
4090105-08450-00 BOLT, FLANGEBOLT, FLANGE
-
418AC-47416-01-00 BRACKET 2BRACKET 2
-
428FN-47488-00-00 SHAFT 6SHAFT 6
-
4390381-22099-00 BUSH, SOLIDBUSH, SOLID
-
4490201-207J5-00 WASHER, PLATEWASHER, PLATE
-
4590387-2004V-00 COLLARCOLLAR
-
4699009-20400-00 CIRCLIPCIRCLIP
-
4790105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
488GS-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
498AC-47475-00-00 SHAFT 2SHAFT 2
-
5090201-266L1-00 WASHER, PLATEWASHER, PLATE
-
5190201-250T6-00 WASHER, PLATEWASHER, PLATE
-
5290105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
5390381-28108-00 BUSH, SOLIDBUSH, SOLID
-
5490201-286K9-00 WASHER, PLATE (T1.0)WASHER, PLATE (T1.0)
-
5590387-2515E-00 COLLARCOLLAR
-
568AC-47417-00-00 BRACKET 3BRACKET 3
-
5790105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
5883R-47485-02-00 SHAFT 3SHAFT 3
-
5990201-10136-00 WASHER, PLATEWASHER, PLATE
-
6095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6195827-08220-00 BOLT, FLANGEBOLT, FLANGE
-
6290387-083G6-00 COLLARCOLLAR
-
638FN-47480-30-00 SHOCK ABSORBERSHOCK ABSORBER
-
644AA-22259-60-00 LABEL, WARNINGLABEL, WARNING
-
658AC-4631K-00-00 BOLT, ADJUSTINGBOLT, ADJUSTING
-
6690387-1009S-00 COLLARCOLLAR
-
6790201-103U4-00 WASHER, PLATEWASHER, PLATE
-
6890201-100U1-00 WASHER, PLATEWASHER, PLATE
-
6990381-14101-00 BUSH, SOLIDBUSH, SOLID
-
7090387-1404R-00 COLLARCOLLAR
-
7195607-10100-00 NUT, UNUT, U
-
728CR-47494-01-00 ROD, RELAYROD, RELAY
-
7390381-14109-00 BUSH, SOLIDBUSH, SOLID
-
7490387-100X3-00 COLLARCOLLAR
-
7590105-10739-00 BOLT, FLANGEBOLT, FLANGE
-
7690105-10436-00 BOLT, FLANGEBOLT, FLANGE
-
7790201-100U1-00 WASHER, PLATEWASHER, PLATE
-
7890105-10105-00 BOLT, FLANGEBOLT, FLANGE
-
7990387-105G5-00 COLLARCOLLAR
-
808AC-47366-00-00 COLLAR 2COLLAR 2
-
8190201-10136-00 WASHER, PLATEWASHER, PLATE
-
828AC-47310-10-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
838AC-4745A-10-00 ROD, CONTROL 1ROD, CONTROL 1
-
848CR-4745B-00-00 ROD, CONTROL 2ROD, CONTROL 2
-
8590384-16251-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
8690202-16229-00 WASHER, PLATEWASHER, PLATE
-
8790202-16232-00 WASHER, PLATEWASHER, PLATE
-
8890201-106F2-00 WASHER, PLATEWASHER, PLATE
-
8997027-10025-00 BOLT, HEXAGONBOLT, HEXAGON
-
9093700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
9190380-22232-00 BUSH, SOLIDBUSH, SOLID
-
9290380-28235-00 BUSH, SOLIDBUSH, SOLID
-
938DF-47367-00-00 SCREW, REAR PIVOTSCREW, REAR PIVOT
-
9490201-101U2-00 WASHER, PLATEWASHER, PLATE
-
9595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
968AC-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
978FN-47336-00-00 SPRING 1 (K=14.7N/MM) (AP)SPRING 1 (K=14.7N/MM) (AP)
-
978FN-47336-10-00 SPRING 1 (K=17.7N/MM) (AP)SPRING 1 (K=17.7N/MM) (AP)
-
978FN-47336-20-00 SPRING 1 (K=20.6N/MM) (AP)SPRING 1 (K=20.6N/MM) (AP)
-
988FN-47489-00-00 SPRING 1 (K=63.7N/MM) (AP)SPRING 1 (K=63.7N/MM) (AP)
