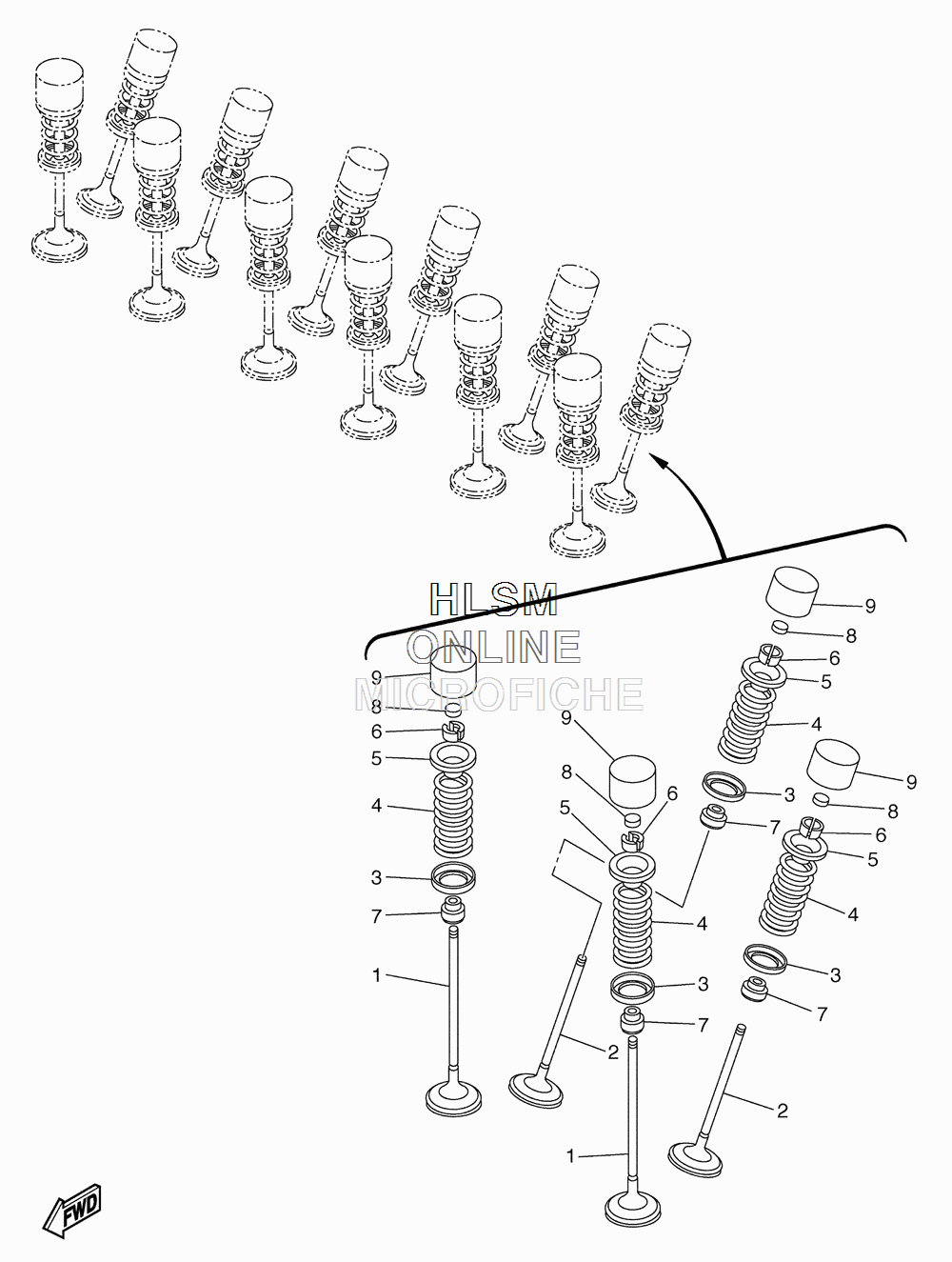

VALVE ASSY для Yamaha VK PRO - 2011 года выпуска`
-
№АртикулНазвание
-
15JW-12111-00-00 VALVE, INTAKEVALVE, INTAKE
-
25JW-12121-01-00 VALVE, EXHAUSTVALVE, EXHAUST
-
35JW-12116-00-00 SEAT, VALVE SPRINGSEAT, VALVE SPRING
-
45JW-12113-00-00 SPRING, VALVE INNERSPRING, VALVE INNER
-
55JW-12117-00-00 RETAINER, VALVE SPRINGRETAINER, VALVE SPRING
-
61AA-12118-00-00 COTTER, VALVECOTTER, VALVE
-
73P6-12129-00-00 SEAL, VALVE STEMSEAL, VALVE STEM
-
83LD-12169-50-00 PAD, ADJUSTING (2.00) (UR)PAD, ADJUSTING (2.00) (UR)
-
83LD-12169-70-00 PAD, ADJUSTING (2.05) (UR)PAD, ADJUSTING (2.05) (UR)
-
83LD-12168-F0-00 PAD, ADJUSTING (1.50) (UR)PAD, ADJUSTING (1.50) (UR)
-
83LD-12168-A0-00 PAD, ADJUSTING (1.45) (UR)PAD, ADJUSTING (1.45) (UR)
-
83LD-12168-80-00 PAD, ADJUSTING (1.40) (UR)PAD, ADJUSTING (1.40) (UR)
-
83LD-12168-60-00 PAD, ADJUSTING (1.35) (UR)PAD, ADJUSTING (1.35) (UR)
-
83LD-12168-40-00 PAD, ADJUSTING (1.30) (UR)PAD, ADJUSTING (1.30) (UR)
-
83LD-12168-20-00 PAD, ADJUSTING (1.25) (UR)PAD, ADJUSTING (1.25) (UR)
-
83LD-12168-00-00 PAD, ADJUSTING (1.20) (UR)PAD, ADJUSTING (1.20) (UR)
-
83LD-12169-90-00 PAD, ADJUSTING (2.10) (UR)PAD, ADJUSTING (2.10) (UR)
-
83LD-12169-31-00 PAD, ADJUSTING (1.95) (UR)PAD, ADJUSTING (1.95) (UR)
-
83LD-12169-E0-00 PAD, ADJUSTING (2.15) (UR)PAD, ADJUSTING (2.15) (UR)
-
83LD-12169-G0-00 PAD, ADJUSTING (2.20) (UR)PAD, ADJUSTING (2.20) (UR)
-
83LD-12169-J0-00 PAD, ADJUSTING (2.25) (UR)PAD, ADJUSTING (2.25) (UR)
-
83LD-12169-L0-00 PAD, ADJUSTING (2.30) (UR)PAD, ADJUSTING (2.30) (UR)
-
83LD-12169-N0-00 PAD, ADJUSTING (2.35) (UR)PAD, ADJUSTING (2.35) (UR)
-
83LD-12169-T0-00 PAD, ADJUSTING (2.40) (UR)PAD, ADJUSTING (2.40) (UR)
-
83LD-12168-H1-00 PAD, ADJUSTING (1.55) (UR)PAD, ADJUSTING (1.55) (UR)
-
83LD-12168-K1-00 PAD, ADJUSTING (1.60) (UR)PAD, ADJUSTING (1.60) (UR)
-
83LD-12168-M1-00 PAD, ADJUSTING (1.65) (UR)PAD, ADJUSTING (1.65) (UR)
-
83LD-12168-R1-00 PAD, ADJUSTING (1.70) (UR)PAD, ADJUSTING (1.70) (UR)
-
83LD-12168-U1-00 PAD, ADJUSTING (1.75) (UR)PAD, ADJUSTING (1.75) (UR)
-
83LD-12168-W1-00 PAD, ADJUSTING (1.80) (UR)PAD, ADJUSTING (1.80) (UR)
-
83LD-12168-Y1-00 PAD, ADJUSTING (1.85) (UR)PAD, ADJUSTING (1.85) (UR)
-
83LD-12169-11-00 PAD, ADJUSTING (1.90) (UR)PAD, ADJUSTING (1.90) (UR)
-
95EB-12153-09-00 LIFTER, VALVE (O/S) (UR) (GREEN)LIFTER, VALVE (O/S) (UR) (GREEN)
-
95EB-12153-10-00 LIFTER, VALVE (UR) (YELLOW)LIFTER, VALVE (UR) (YELLOW)
