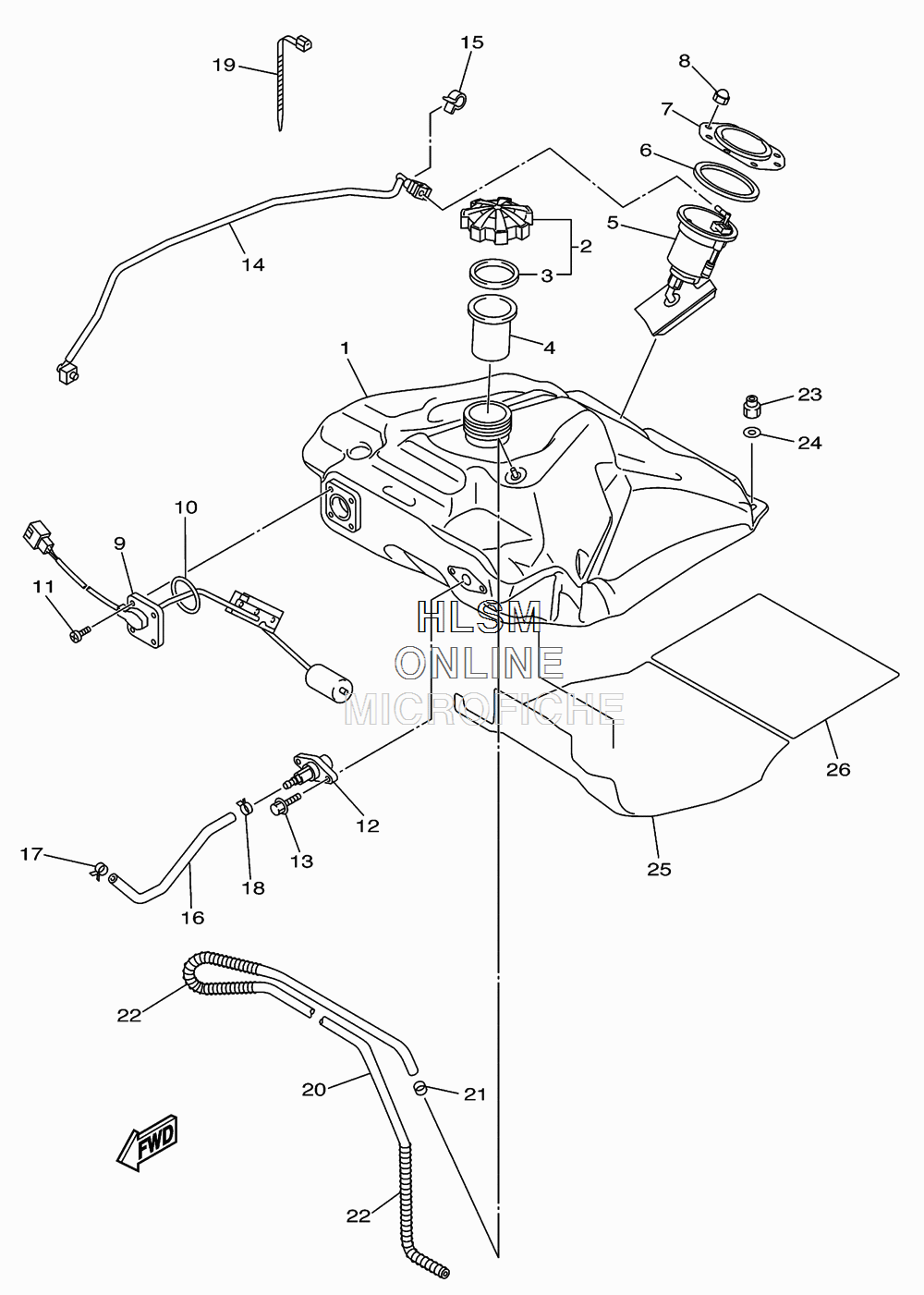

FUEL TANK ASSY для Yamaha VENTURE LITE - 2011 года выпуска`
-
№АртикулНазвание
-
18GJ-24111-10-00 TANK, FUELTANK, FUEL
-
28FG-24610-00-00 CAP ASSYCAP ASSY
-
38FG-24641-00-00 GASKET, CAP 1GASKET, CAP 1
-
48FN-24114-00-00 TUBE, FILLERTUBE, FILLER
-
58GC-13907-01-00 FUEL PUMP COMP.FUEL PUMP COMP.
-
68FP-24486-00-00 O-RINGO-RING
-
78FP-24491-00-00 BRACKET, FUEL PUMPBRACKET, FUEL PUMP
-
895302-06800-00 NUT, CROWNNUT, CROWN
-
98GK-85752-00-00 SENDER UNIT ASSY, FUEL METERSENDER UNIT ASSY, FUEL METER
-
1093210-41041-00 O-RINGO-RING
-
1198902-05008-00 SCREW, BINDSCREW, BIND
-
128FP-24362-00-00 VALVE, CHECK 1VALVE, CHECK 1
-
1395822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
148GJ-24311-10-00 PIPE, FUEL 1PIPE, FUEL 1
-
1590464-14004-00 CLAMPCLAMP
-
168GC-24312-10-00 PIPE 2PIPE 2
-
1790467-13083-00 CLIPCLIP
-
1890467-13071-00 CLIPCLIP
-
1990464-13077-00 CLAMPCLAMP
-
208GJ-24313-00-00 PIPE 3PIPE 3
-
2190468-02078-00 CLIPCLIP
-
2290501-08668-00 SPRING, COMPRESSIONSPRING, COMPRESSION
-
2395702-08300-00 NUT, NYLONNUT, NYLON
-
2490201-08784-00 WASHER, PLATEWASHER, PLATE
-
258GJ-2416F-00-00 INSULATOR, FUEL TANK 1INSULATOR, FUEL TANK 1
-
268GJ-2416G-01-00 INSULATOR, FUEL TANK 2INSULATOR, FUEL TANK 2
