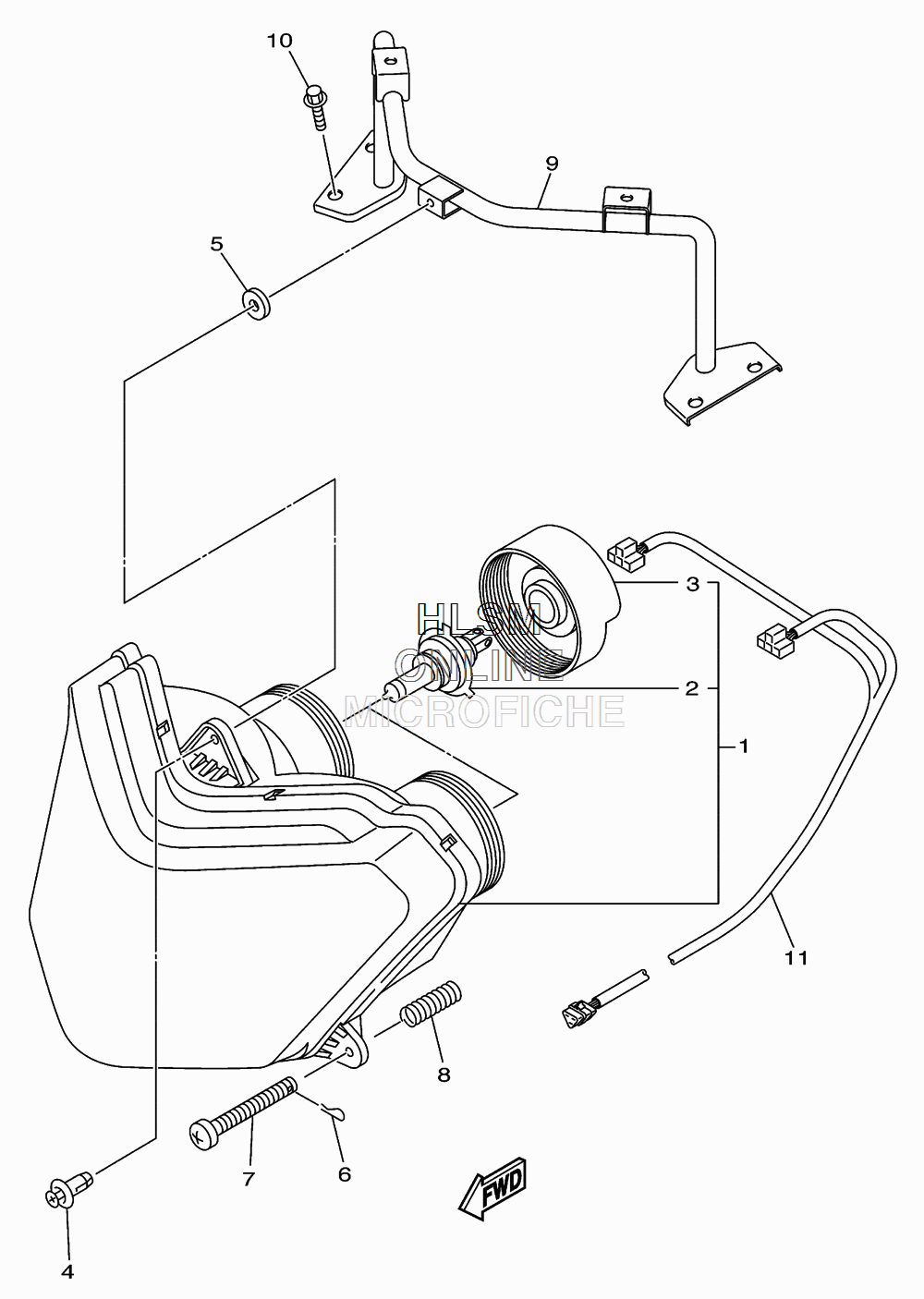

ELECTRICAL - HEADLIGHT ASSY для Yamaha VENTURE LITE - 2011 года выпуска`
-
№АртикулНазвание
-
18GK-84310-00-00 HEADLIGHT UNIT ASSYHEADLIGHT UNIT ASSY
-
28G9-84314-00-00 BULB (12V-60/55W)BULB (12V-60/55W)
-
38GK-84397-01-00 COVER, SOCKETCOVER, SOCKET
-
490269-06046-00 RIVETRIVET
-
590202-06008-00 WASHER, PLATEWASHER, PLATE
-
68K4-84374-00-00 CLIPCLIP
-
78A5-84331-00-00 SCREW, RIM ADJUSTINGSCREW, RIM ADJUSTING
-
88A5-84332-00-00 SPRING, SCREWSPRING, SCREW
-
98GJ-84118-00-00 STAY, HEADLIGHT 1STAY, HEADLIGHT 1
-
1095822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
118GJ-84359-00-00 CORD, HEADLIGHTCORD, HEADLIGHT
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- • ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - MANUALS
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR SET
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
