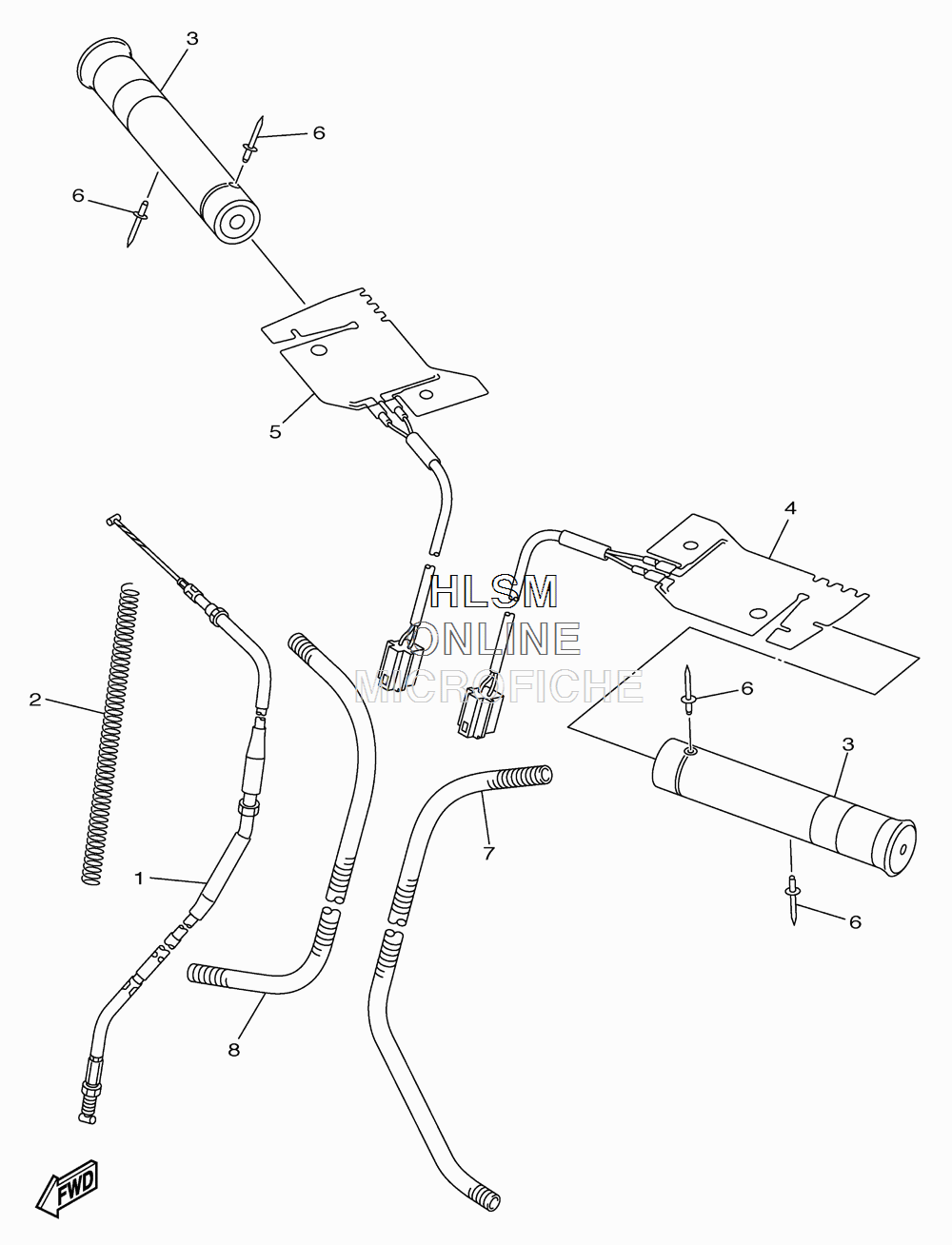

HANDLEBAR - CABLES AND GRIPS для Yamaha PHAZER GT - 2011 года выпуска`
-
№АртикулНазвание
-
18GC-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28GC-26314-00-00 SPRINGSPRING
-
38HR-26241-01-00 GRIPGRIP
-
48HR-2626A-00-00 GRIP, WARMERGRIP, WARMER
-
58HR-2626A-10-00 GRIP, WARMERGRIP, WARMER
-
690267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
78FP-82351-00-00 TUBE, CORDTUBE, CORD
-
88GC-82351-00-00 TUBE, CORDTUBE, CORD
