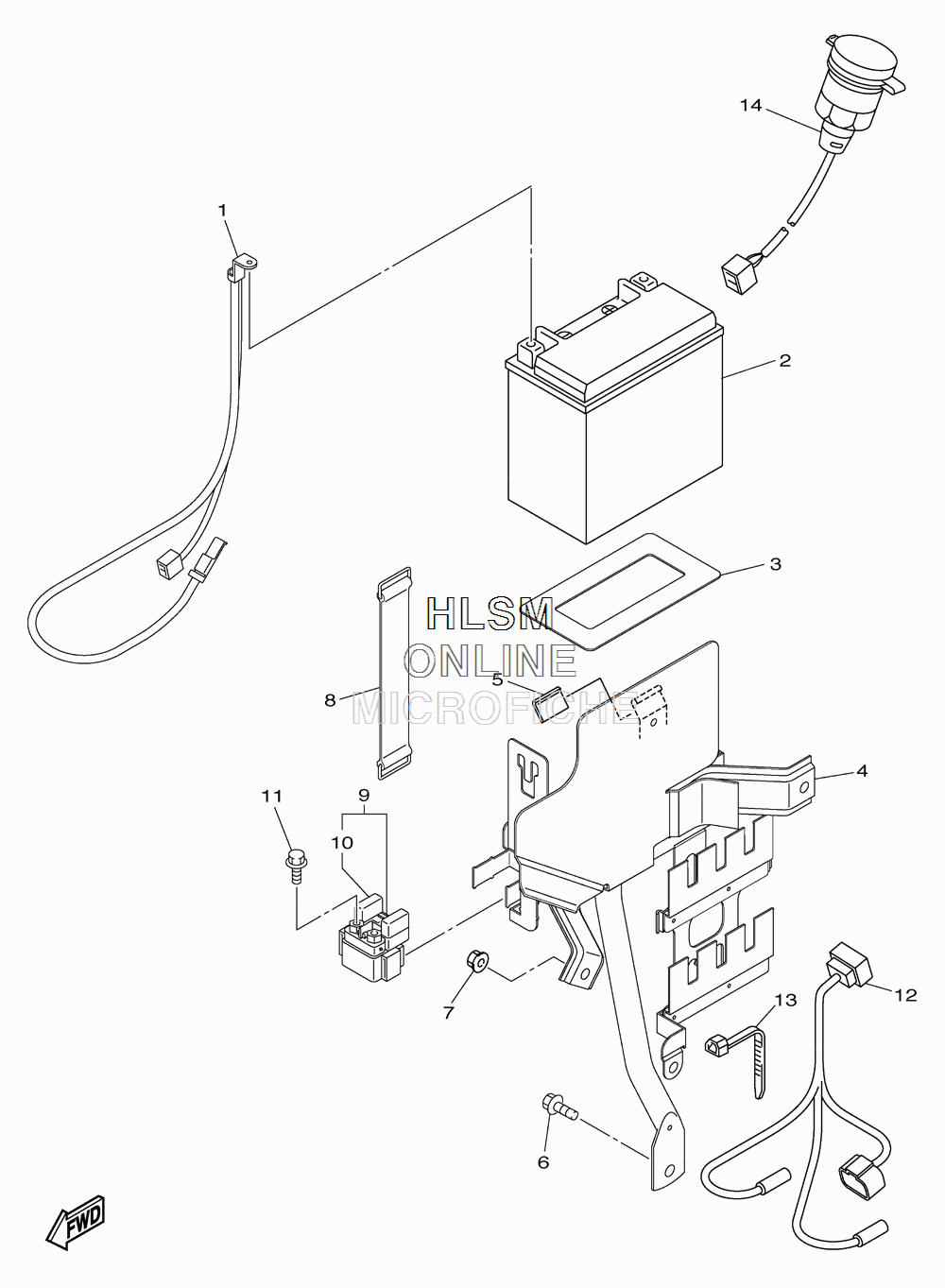

ELECTRICAL - BATTERY ASSY для Yamaha PHAZER GT - 2011 года выпуска`
-
№АртикулНазвание
-
18GC-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
23XW-82100-01-00 BATTERY ASSY (YUASA YTX14-BS)BATTERY ASSY (YUASA YTX14-BS)
-
35LP-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
48GK-2199G-01-00 BRACKET, BATTERYBRACKET, BATTERY
-
58GC-77151-00-00 PAD 1PAD 1
-
695822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
795702-08500-00 NUT,FLANGE (JN5)NUT,FLANGE (JN5)
-
88DM-82131-10-00 BAND, BATTERYBAND, BATTERY
-
98GL-81940-00-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1042X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
1195022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
128GK-82509-01-00 WIRE, SUB LEADWIRE, SUB LEAD
-
1390464-13077-00 CLAMPCLAMP
-
148FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
