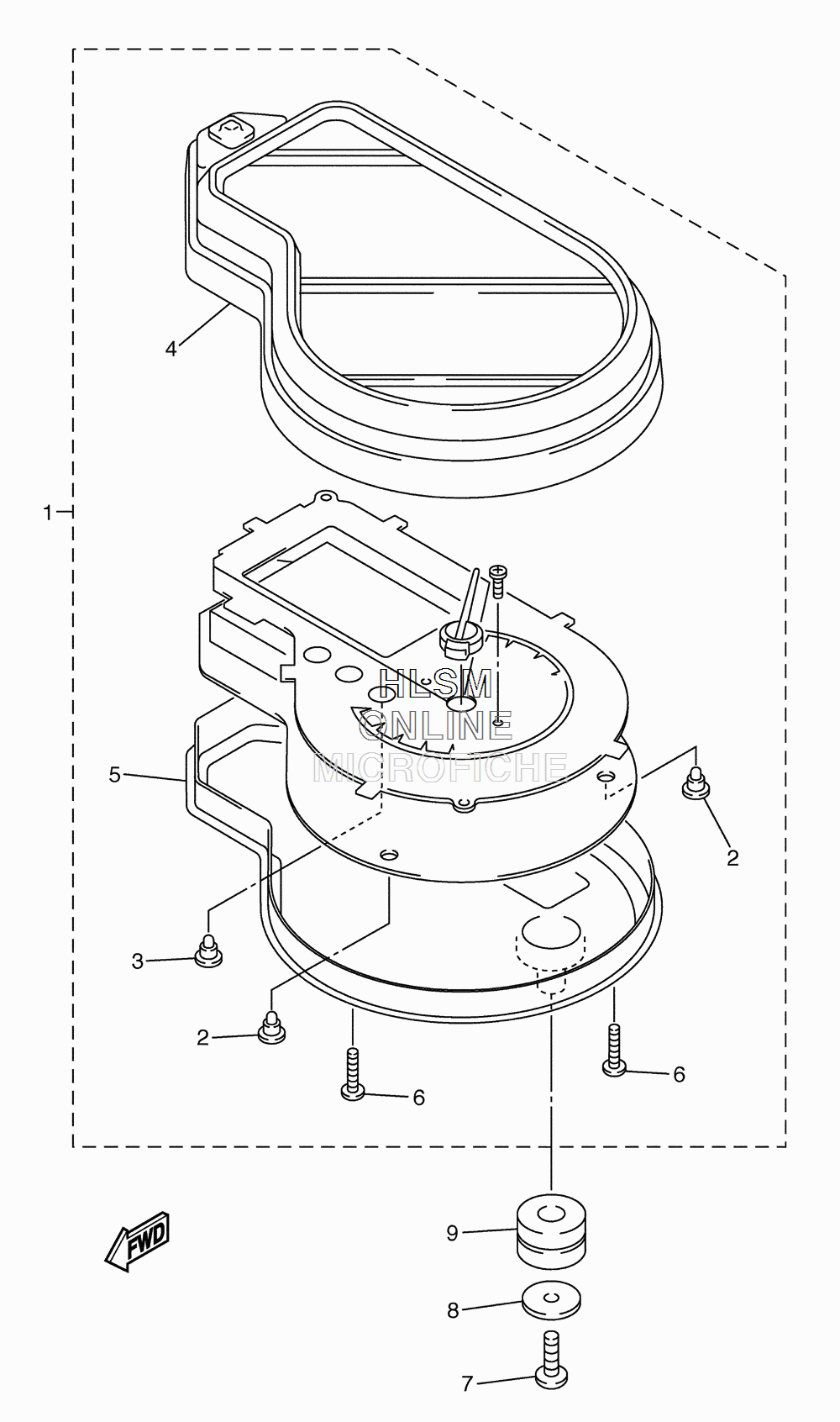

ELECTRICAL - INSTRUMENTS для Yamaha RS VIKING PRO - 2010 года выпуска`
-
№АртикулНазвание
-
18FN-83500-11-00 SPEEDOMETER ASSY (MPH)SPEEDOMETER ASSY (MPH)
-
25JA-83517-00-00 BULB (T3 14V-50MA)BULB (T3 14V-50MA)
-
34WM-83517-10-00 BULB (T3.4 14V-80MA)BULB (T3.4 14V-80MA)
-
48EK-8353E-01-00 CASE, METER UPPERCASE, METER UPPER
-
58EK-83572-01-00 CASE, SPEEDOMETER LOWERCASE, SPEEDOMETER LOWER
-
65PW-8352S-00-00 SCREW, PANEL FTTINGSCREW, PANEL FTTING
-
797702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
890201-05725-00 WASHER, PLATEWASHER, PLATE
-
94XV-83513-00-00 DAMPERDAMPER
