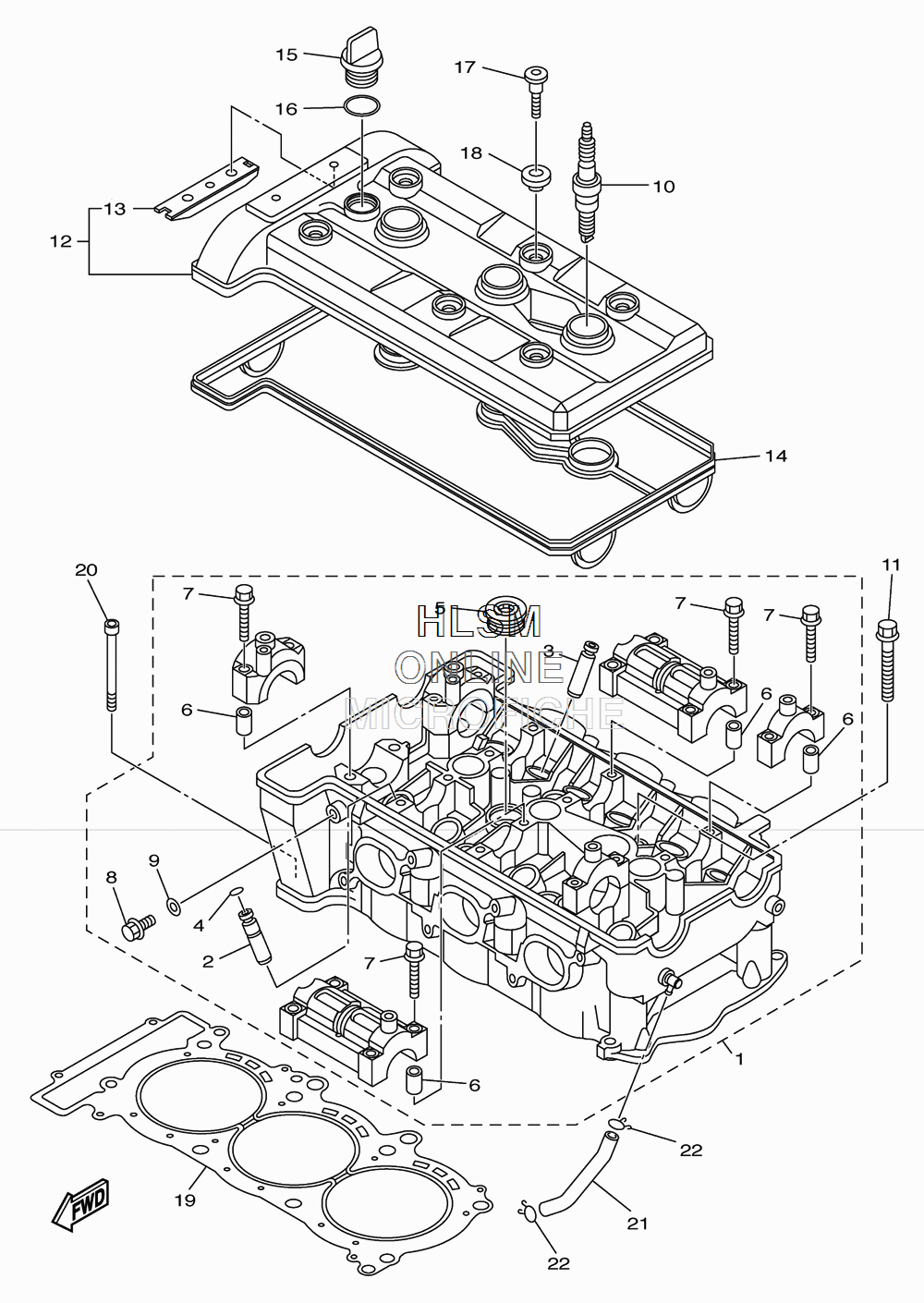

CYLINDER W/ HEAD ASSY для Yamaha RS VIKING PRO - 2010 года выпуска`
-
№АртикулНазвание
-
18ES-11101-02-00 CYLINDER HEAD ASSYCYLINDER HEAD ASSY
-
25JW-11133-10-00 GUIDE, VALVE 1GUIDE, VALVE 1
-
33P6-11134-10-00 GUIDE, VALVE 2GUIDE, VALVE 2
-
493440-09141-00 CIRCLIPCIRCLIP
-
590340-27001-00 PLUG, STRAIGHT SCREWPLUG, STRAIGHT SCREW
-
691808-16023-00 PIN, DOWELPIN, DOWEL
-
790105-06026-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
895022-08012-00 BOLT, FLANGEBOLT, FLANGE
-
990430-08119-00 GASKETGASKET
-
10NGK-CR8E0-00-00 PLUG, SPARK (NGK R CR8E) STDPLUG, SPARK (NGK R CR8E) STD
-
1190119-10004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
128ES-11191-01-00 COVER, CYLINDER HEAD 1COVER, CYLINDER HEAD 1
-
135BE-12241-00-00 GUIDE, STOPPER 2GUIDE, STOPPER 2
-
148ES-11193-00-00 GASKET, HEAD COVER 1GASKET, HEAD COVER 1
-
153Y1-15363-10-00 PLUG, OILPLUG, OIL
-
1693210-19123-00 O-RINGO-RING
-
1790109-066F0-00 BOLTBOLT
-
184KG-1111G-00-00 RUBBER, MOUNT 1RUBBER, MOUNT 1
-
198ES-11181-00-00 GASKET, CYLINDER HEAD 1GASKET, CYLINDER HEAD 1
-
2091312-06065-00 BOLTBOLT
-
218ES-13416-00-00 PIPE, OIL 1PIPE, OIL 1
-
2290467-100A1-00 CLIPCLIP
