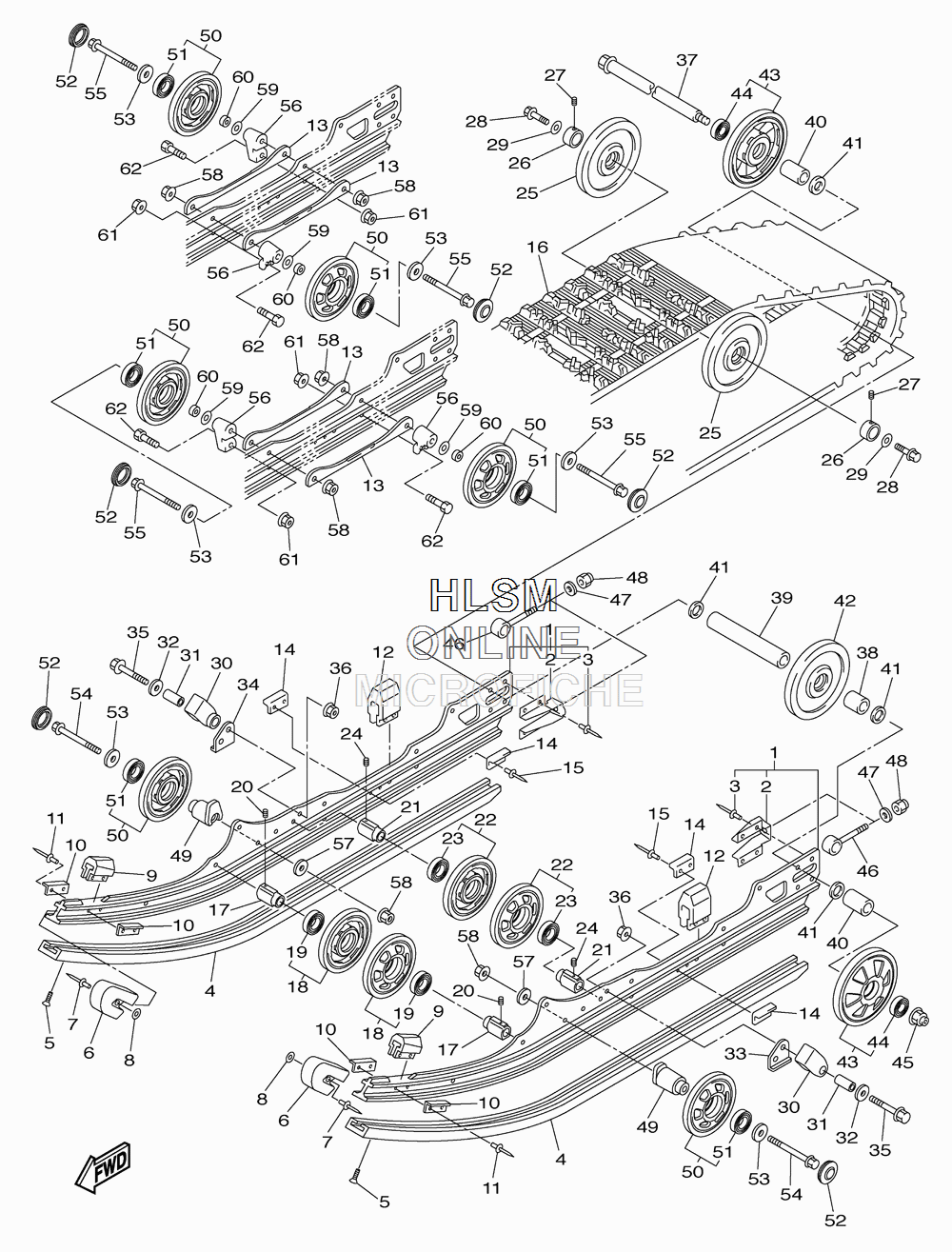

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha RS VENTURE GT - 2010 года выпуска
-
№АртикулНазвание
-
18HF-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48ET-47421-00-00 SLIDE RUNNER BLK 144SLIDE RUNNER BLK 144
-
590151-06010-00 SCREW, CROSSRECESSSCREW, CROSSRECESS
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128FP-47457-00-00 DAMPER 2DAMPER 2
-
138HF-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168ET-47110-20-00 TRACK ASSYTRACK ASSY
-
178ES-47319-01-00 COLLARCOLLAR
-
188HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
1993306-00507-00 BEARINGBEARING
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218ES-47319-01-00 COLLARCOLLAR
-
228HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
2393306-00507-00 BEARINGBEARING
-
2490113-06039-00 BOLT, SETBOLT, SET
-
258CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
268ES-47365-00-00 COLLAR 1COLLAR 1
-
2790113-06039-00 BOLT, SETBOLT, SET
-
2890109-10030-00 BOLTBOLT
-
2990201-10039-00 WASHER, PLATEWASHER, PLATE
-
308HF-47446-00-00 HOOK 1HOOK 1
-
3190387-10081-00 COLLARCOLLAR
-
3290201-100S0-00 WASHER, PLATEWASHER, PLATE
-
338HF-47374-00-00 WASHER 1WASHER 1
-
348HF-47375-00-00 WASHER 2WASHER 2
-
3595812-10055-00 BOLT, FLANGEBOLT, FLANGE
-
3695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
378L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
3890387-20015-00 COLLARCOLLAR
-
3990387-20016-00 COLLARCOLLAR
-
4090387-20019-00 COLLARCOLLAR
-
4190201-20022-00 WASHER, PLATEWASHER, PLATE
-
428CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
438HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
4493306-00444-00 BEARINGBEARING
-
4595602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
468DM-47479-00-00 COLLAR 3COLLAR 3
-
4792902-10600-00 WASHERWASHER
-
4895702-10300-00 NUT, NYLONNUT, NYLON
-
498ES-47419-00-00 BRACKET 7BRACKET 7
-
508HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
5193306-00507-00 BEARINGBEARING
-
528HF-47317-00-00 CAP, WHEELCAP, WHEEL
-
5390201-10038-00 WASHER, PLATEWASHER, PLATE
-
5495812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
5590105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
568CM-47419-30-00 BRACKET 7BRACKET 7
-
5790201-106F2-00 WASHER, PLATEWASHER, PLATE
-
5895602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
5990201-100S0-00 WASHER, PLATEWASHER, PLATE
-
6090387-10031-00 COLLARCOLLAR
-
6195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6290101-08774-00 BOLTBOLT
