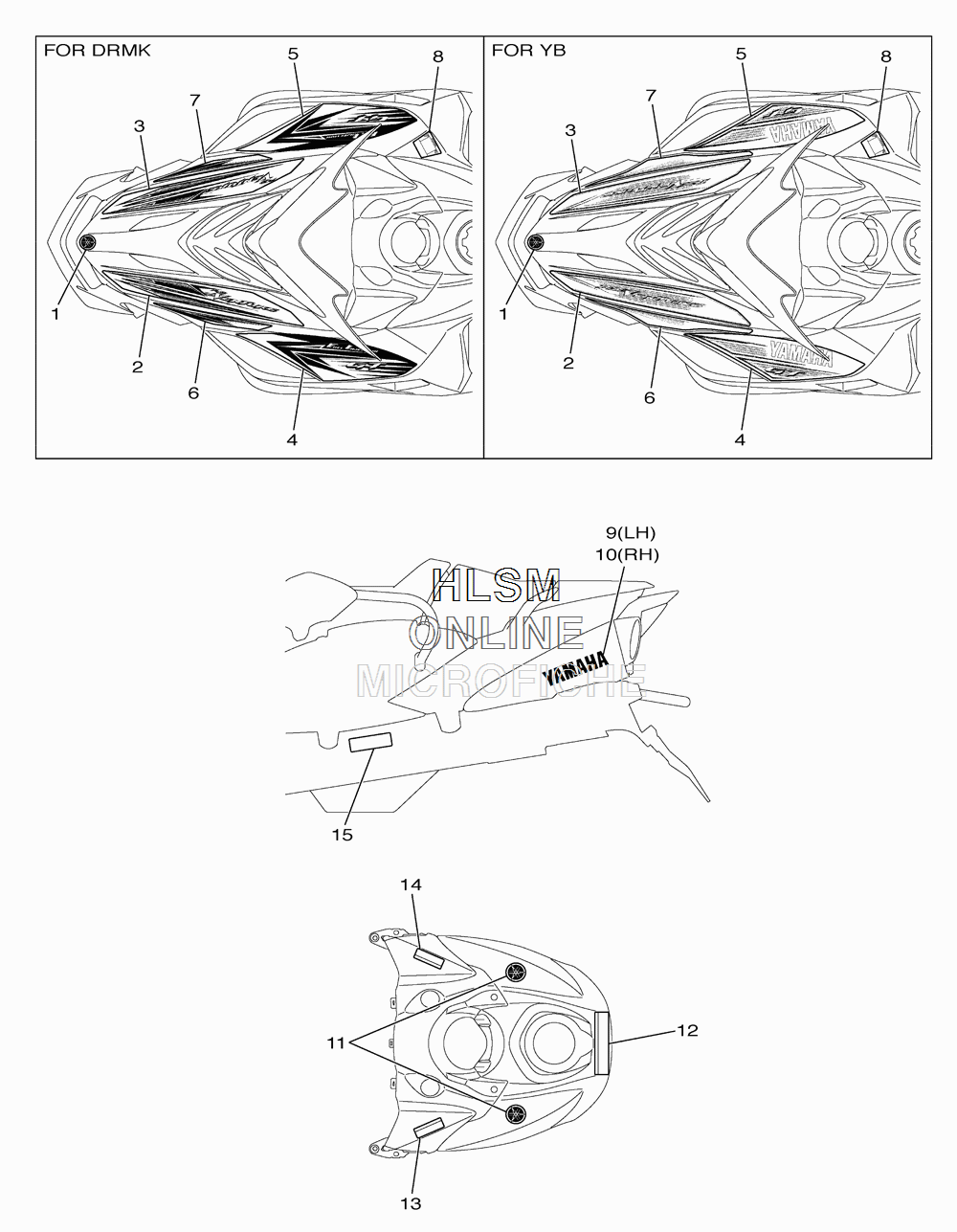

DECALS для Yamaha RS VENTURE GT - 2010 года выпуска`
-
№АртикулНазвание
-
18AC-2414B-01-00 EMBLEMEMBLEM
-
28HF-7711L-10-00 GRAPHIC, SHROUD (YB)GRAPHIC, SHROUD (YB)
-
28HF-7711L-00-00 GRAPHIC, SHROUD (DRMK)GRAPHIC, SHROUD (DRMK)
-
38HF-7711M-10-00 GRAPHIC, SHROUD (YB)GRAPHIC, SHROUD (YB)
-
38HF-7711M-00-00 GRAPHIC, SHROUD (DRMK)GRAPHIC, SHROUD (DRMK)
-
48HF-7711A-20-00 GRAPHIC 1 (DRMK)GRAPHIC 1 (DRMK)
-
48HF-7711A-30-00 GRAPHIC 1 (YB)GRAPHIC 1 (YB)
-
58HF-7711B-20-00 GRAPHIC 2 (DRMK)GRAPHIC 2 (DRMK)
-
58HF-7711B-30-00 GRAPHIC 2 (YB)GRAPHIC 2 (YB)
-
68HF-7711N-10-00 GRAPHIC, SHROUD 3 (YB)GRAPHIC, SHROUD 3 (YB)
-
68HF-7711N-00-00 GRAPHIC, SHROUD 3 (DRMK)GRAPHIC, SHROUD 3 (DRMK)
-
78HF-7711P-00-00 GRAPHIC, SHROUD 4 (DRMK)GRAPHIC, SHROUD 4 (DRMK)
-
78HF-7711P-10-00 GRAPHIC, SHROUD 4 (YB)GRAPHIC, SHROUD 4 (YB)
-
88HF-77763-E0-00 LABEL, WARNING 3LABEL, WARNING 3
-
999246-00140-00 EMBLEM, YAMAHA (YB)EMBLEM, YAMAHA (YB)
-
999244-00140-00 EMBLEM, YAMAHA (DRMK)EMBLEM, YAMAHA (DRMK)
-
1099244-00140-00 EMBLEM, YAMAHA (DRMK)EMBLEM, YAMAHA (DRMK)
-
1099246-00140-00 EMBLEM, YAMAHA (YB)EMBLEM, YAMAHA (YB)
-
115PW-2413B-00-00 EMBLEMEMBLEM
-
128HF-77761-E0-00 LABEL, WARNING 1LABEL, WARNING 1
-
138ET-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
148ET-2815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
158HF-2179D-10-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
