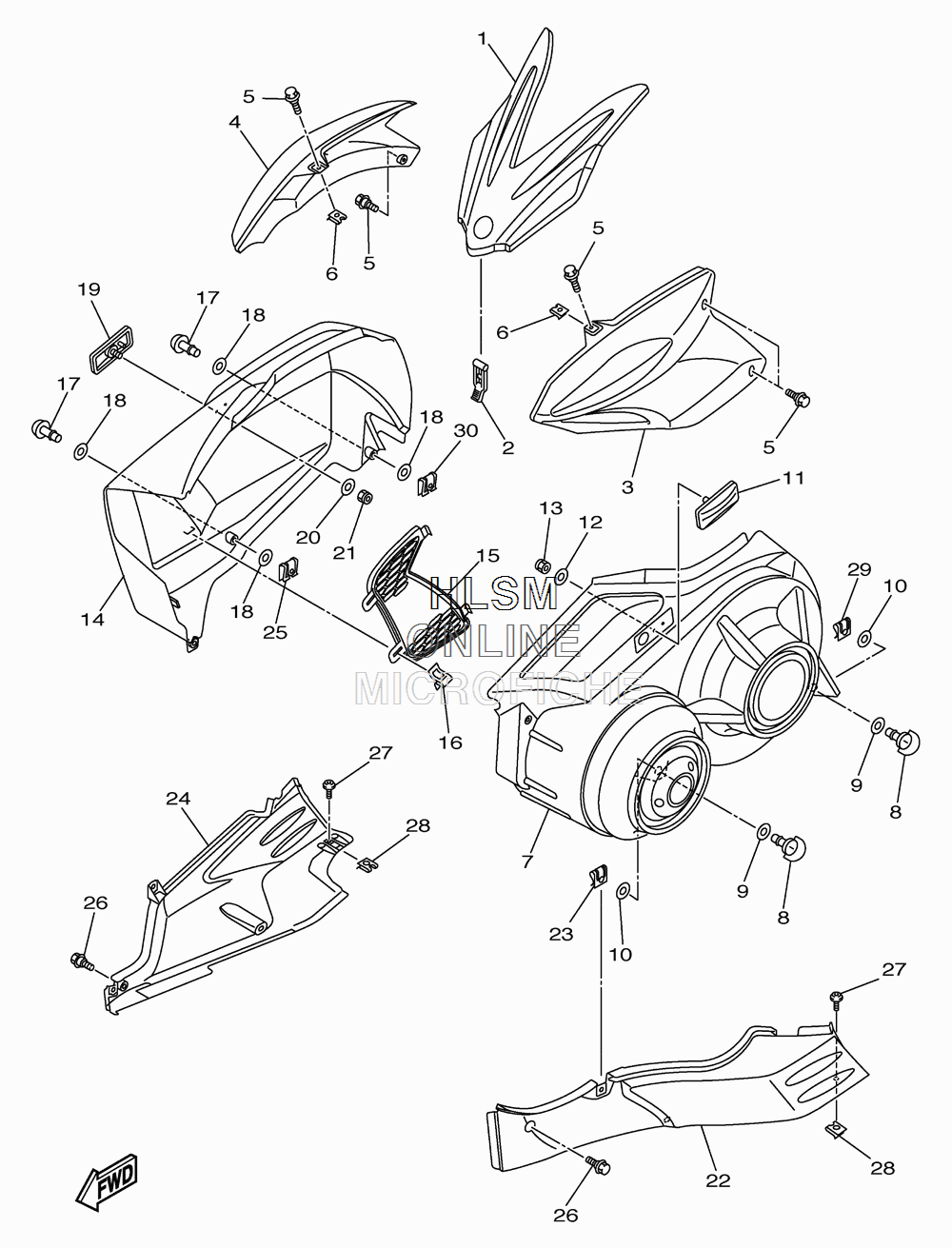

HOOD ASSY для Yamaha PHAZER MTX - 2010 года выпуска`
-
№АртикулНазвание
-
18GC-77111-00-00 SHROUD FOR DPBSESHROUD FOR DPBSE
-
18GC-77111-50-00 SHROUD FOR VYRS4SHROUD FOR VYRS4
-
259V-21646-00-00 BANDBAND
-
38GC-2835U-40-00 PANEL 1 FOR VYRS4PANEL 1 FOR VYRS4
-
38GC-2835U-50-00 PANEL 1 FOR DPBSEPANEL 1 FOR DPBSE
-
48GC-2835V-40-00 PANEL 2 FOR VYRS4PANEL 2 FOR VYRS4
-
48GC-2835V-50-00 PANEL 2 FOR DPBSEPANEL 2 FOR DPBSE
-
590109-06220-00 BOLTBOLT
-
690183-06100-00 NUT, SPRINGNUT, SPRING
-
78GC-2197H-00-00 HOOD 3HOOD 3
-
83FV-28386-00-00 HEADHEAD
-
92TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
105TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
118FR-77185-00-00 PLATE 1PLATE 1
-
1290201-05036-00 WASHER, PLATEWASHER, PLATE
-
1395702-05300-00 NUT, FLANGE (4GB)NUT, FLANGE (4GB)
-
148GC-2198H-01-00 HOOD 4HOOD 4
-
158GC-77134-00-00 LOUVER 4LOUVER 4
-
1690468-06001-00 CLIPCLIP
-
175PW-28386-00-00 HEADHEAD
-
182TK-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
-
198FR-77185-00-00 PLATE 1PLATE 1
-
2090201-05036-00 WASHER, PLATEWASHER, PLATE
-
2195702-05300-00 NUT, FLANGE (4GB)NUT, FLANGE (4GB)
-
228GC-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
234XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
248GC-2196E-00-00 FRAME, UNDER 2FRAME, UNDER 2
-
255PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
-
2690109-06220-00 BOLTBOLT
-
2790149-06105-00 SCREWSCREW
-
2890183-06100-00 NUT, SPRINGNUT, SPRING
-
294XV-2177L-01-00 PLATE, SPRINGPLATE, SPRING
-
305PW-2177L-00-00 PLATE, SPRINGPLATE, SPRING
