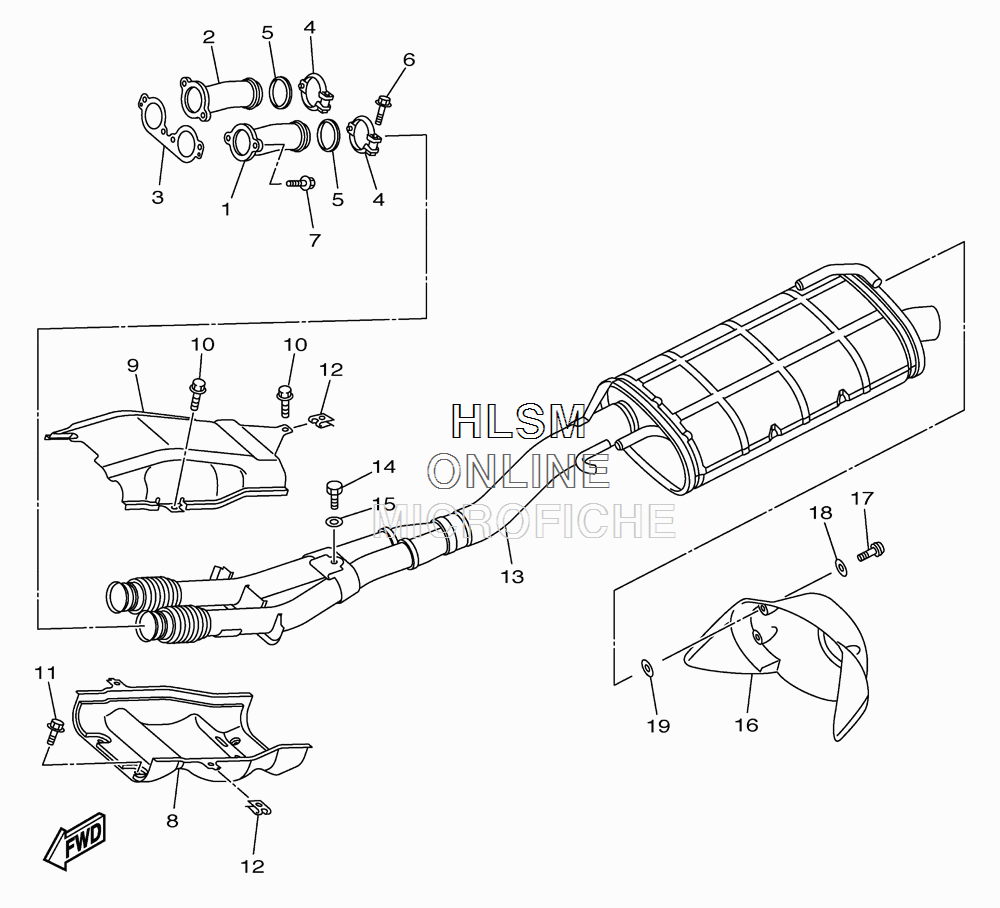

EXHAUST SYSTEM для Yamaha PHAZER MTX - 2010 года выпуска`
-
№АртикулНазвание
-
18GC-14615-01-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28GC-14625-01-00 JOINT, EXHAUST 2JOINT, EXHAUST 2
-
38GC-14613-10-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
48GC-14715-01-00 BAND, MUFFLERBAND, MUFFLER
-
58GC-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
690109-06031-00 BOLTBOLT
-
795022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
88GC-14627-01-00 COVER, EXHAUSTCOVER, EXHAUST
-
98GC-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095022-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1195822-06010-00 BOLT, FLANGEBOLT, FLANGE
-
1290183-060A2-00 NUT, SPRINGNUT, SPRING
-
138GC-14750-02-00 SILENCER ASSYSILENCER ASSY
-
1497012-08016-00 BOLTBOLT
-
1590201-08048-00 WASHER, PLATEWASHER, PLATE
-
168GC-14799-00-00 CAPCAP
-
1790159-06036-00 SCREW, WITH WASHERSCREW, WITH WASHER
-
1890201-05037-00 WASHER, PLATEWASHER, PLATE
-
1990201-05015-00 WASHER, PLATEWASHER, PLATE
