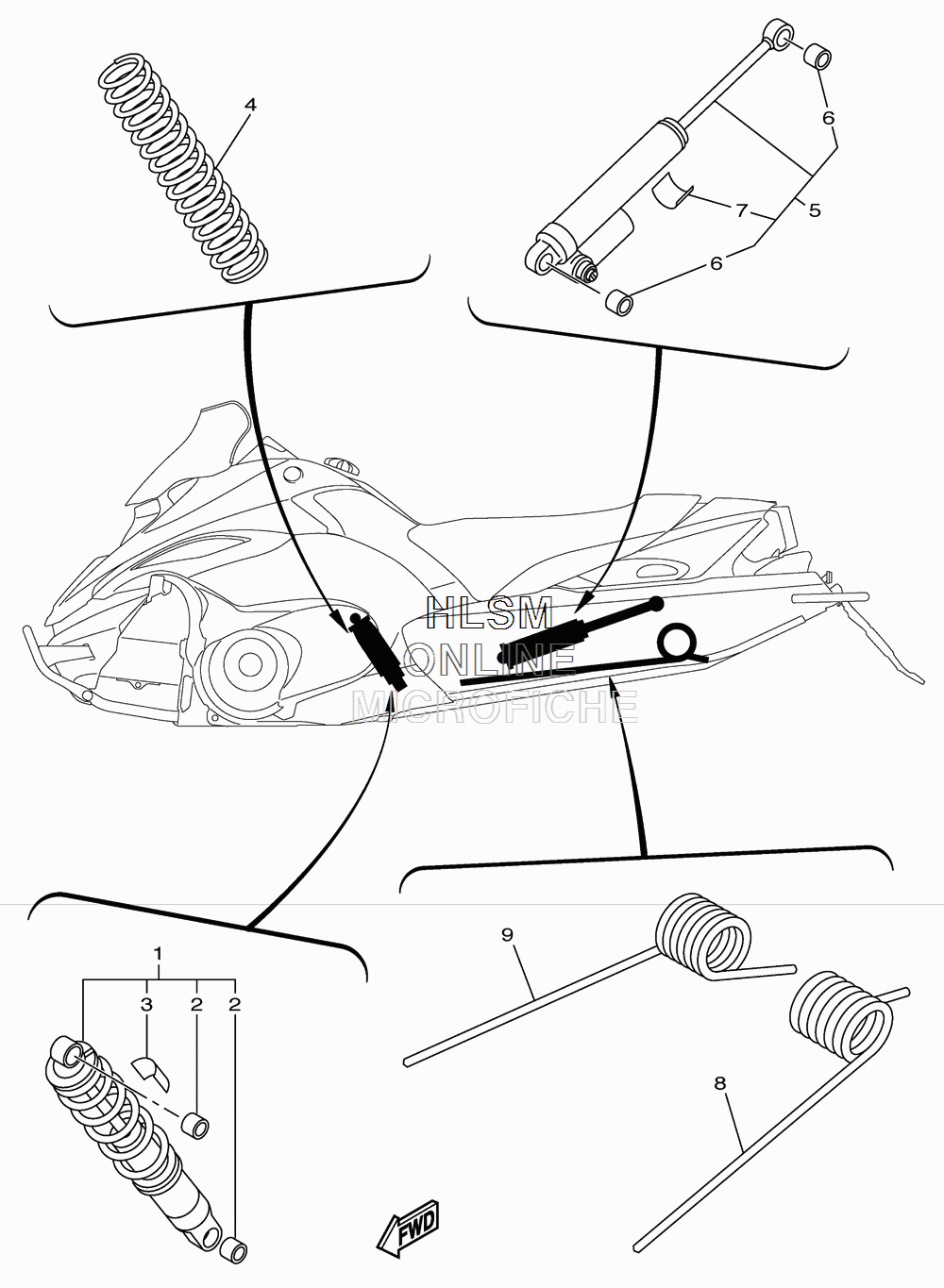

SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS для Yamaha FX NYTRO - 2010 года выпуска`
-
№АртикулНазвание
-
18GL-47481-A0-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
290384-17N50-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
34AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
48GL-47336-10-00 SPRING.,2 (K=30N/MM)SPRING.,2 (K=30N/MM)
-
58GL-47480-A0-00 SHOCK ABSORBERSHOCK ABSORBER
-
690384-17N50-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
74AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
88GL-47473-00-00 SPRING, REAR 1(K=1900NMM/DEG)SPRING, REAR 1(K=1900NMM/DEG)
-
88GL-47473-10-00 SPRING, REAR 1(K=2100NMM/DEG)SPRING, REAR 1(K=2100NMM/DEG)
-
98GL-47474-00-00 SPRING, REAR 2(K=1900NMM/DEG)SPRING, REAR 2(K=1900NMM/DEG)
-
98GL-47474-10-00 SPRING, REAR 2(K=2100NMM/DEG)SPRING, REAR 2(K=2100NMM/DEG)
