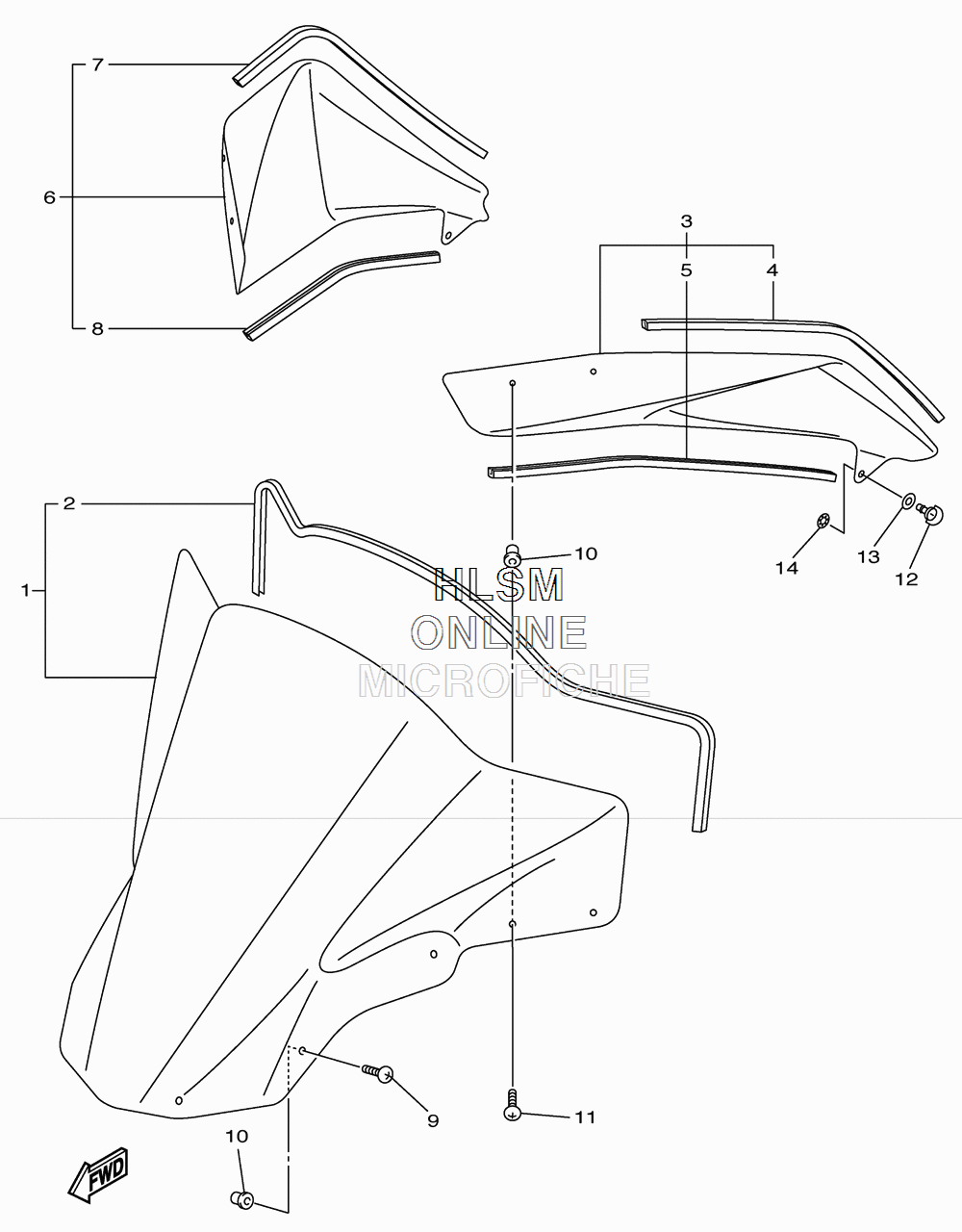

HOOD - WINDSHIELD ASSY для Yamaha FX NYTRO - 2010 года выпуска`
-
№АртикулНазвание
-
18HL-K7210-00-00 WINDSHIELD COMP.WINDSHIELD COMP.
-
28HL-K7213-00-00 TRIM, UPPERTRIM, UPPER
-
38HL-K723A-00-00 FAIRING 2FAIRING 2
-
48HL-K7165-00-00 TRIM 1TRIM 1
-
58HL-K7166-00-00 TRIM 2TRIM 2
-
68HL-K723B-00-00 FAIRING 3FAIRING 3
-
78HL-K7165-00-00 TRIM 1TRIM 1
-
88HL-K7166-00-00 TRIM 2TRIM 2
-
990150-05024-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
1090179-05523-00 NUTNUT
-
1190150-05023-00 SCREW, ROUND HEADSCREW, ROUND HEAD
-
128GL-28386-00-00 HEADHEAD
-
1390202-07186-00 WASHER, PLATEWASHER, PLATE
-
145TJ-21757-00-00 WASHER, SPECIAL 1WASHER, SPECIAL 1
