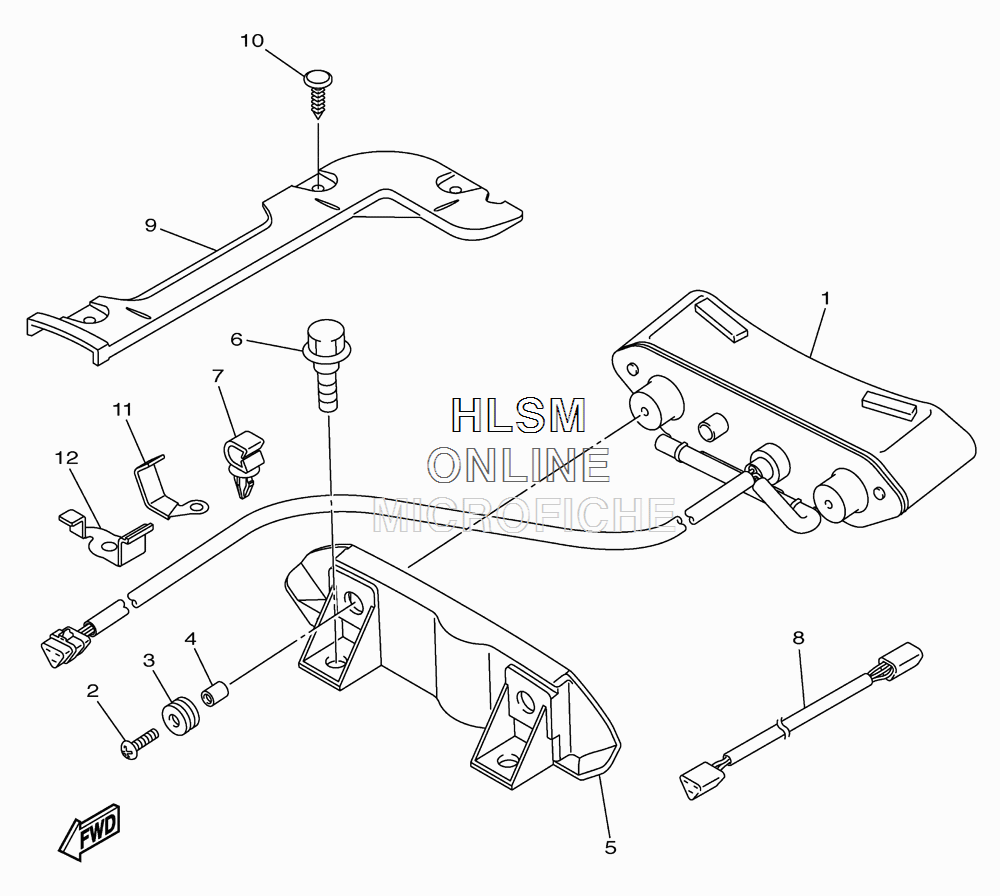

ELECTRICAL - TAILLIGHT ASSY для Yamaha FX NYTRO XTX - 2010 года выпуска
-
№АртикулНазвание
-
18FS-84710-01-00 TAILLIGHT UNIT ASSYTAILLIGHT UNIT ASSY
-
297707-50020-00 SCREW, TAPPINGSCREW, TAPPING
-
390480-12067-00 GROMMETGROMMET
-
490387-053H3-00 COLLARCOLLAR
-
58GL-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
690109-06043-00 BOLTBOLT
-
790464-07011-00 CLAMPCLAMP
-
88HL-84717-10-00 CORD, TAILLIGHTCORD, TAILLIGHT
-
98HL-87228-00-00 COVER HARNESSCOVER HARNESS
-
1090269-06003-00 RIVETRIVET
-
1190462-08045-00 CLAMPCLAMP
-
128GL-84351-00-00 CLAMP, CORDCLAMP, CORD
