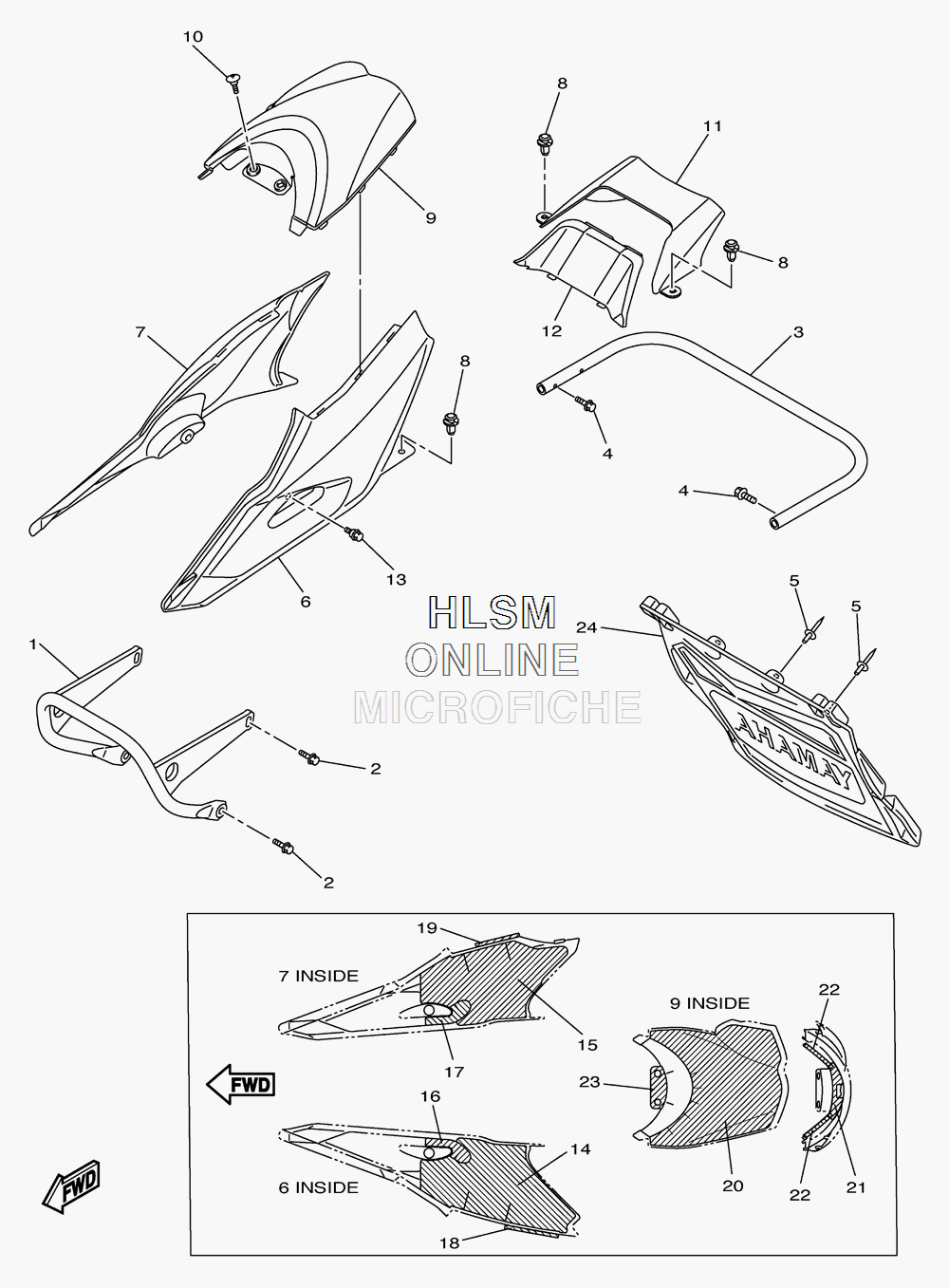

BUMPER - FRONT AND REAR для Yamaha FX NYTRO XTX - 2010 года выпуска
-
№АртикулНазвание
-
18GL-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
38HL-77541-00-00 BUMPER, REAR 1BUMPER, REAR 1
-
495812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
68GL-21731-00-00 COVER, SIDE 3COVER, SIDE 3
-
78GL-21741-00-00 COVER, SIDE 4COVER, SIDE 4
-
890269-08006-00 RIVETRIVET
-
98GL-24756-00-00 COVER, TAILCOVER, TAIL
-
1090154-06009-00 SCREW, BINDINGSCREW, BINDING
-
118GL-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
128FS-84544-00-00 COVERCOVER
-
1390109-06174-00 BOLTBOLT
-
148GL-77551-00-00 PROTECTOR 1PROTECTOR 1
-
158GL-77552-00-00 PROTECTOR 2PROTECTOR 2
-
168GL-77553-00-00 PROTECTOR 3PROTECTOR 3
-
178GL-77554-00-00 PROTECTOR 4PROTECTOR 4
-
188GL-77555-00-00 PROTECTOR 5PROTECTOR 5
-
198GL-77555-10-00 PROTECTOR 5PROTECTOR 5
-
208GL-77556-00-00 PROTECTOR 6PROTECTOR 6
-
218GL-77557-00-00 PROTECTOR 7PROTECTOR 7
-
228GL-7717E-00-00 TAPE 1TAPE 1
-
238GL-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
248GT-K7595-00-00 FLAPFLAP
