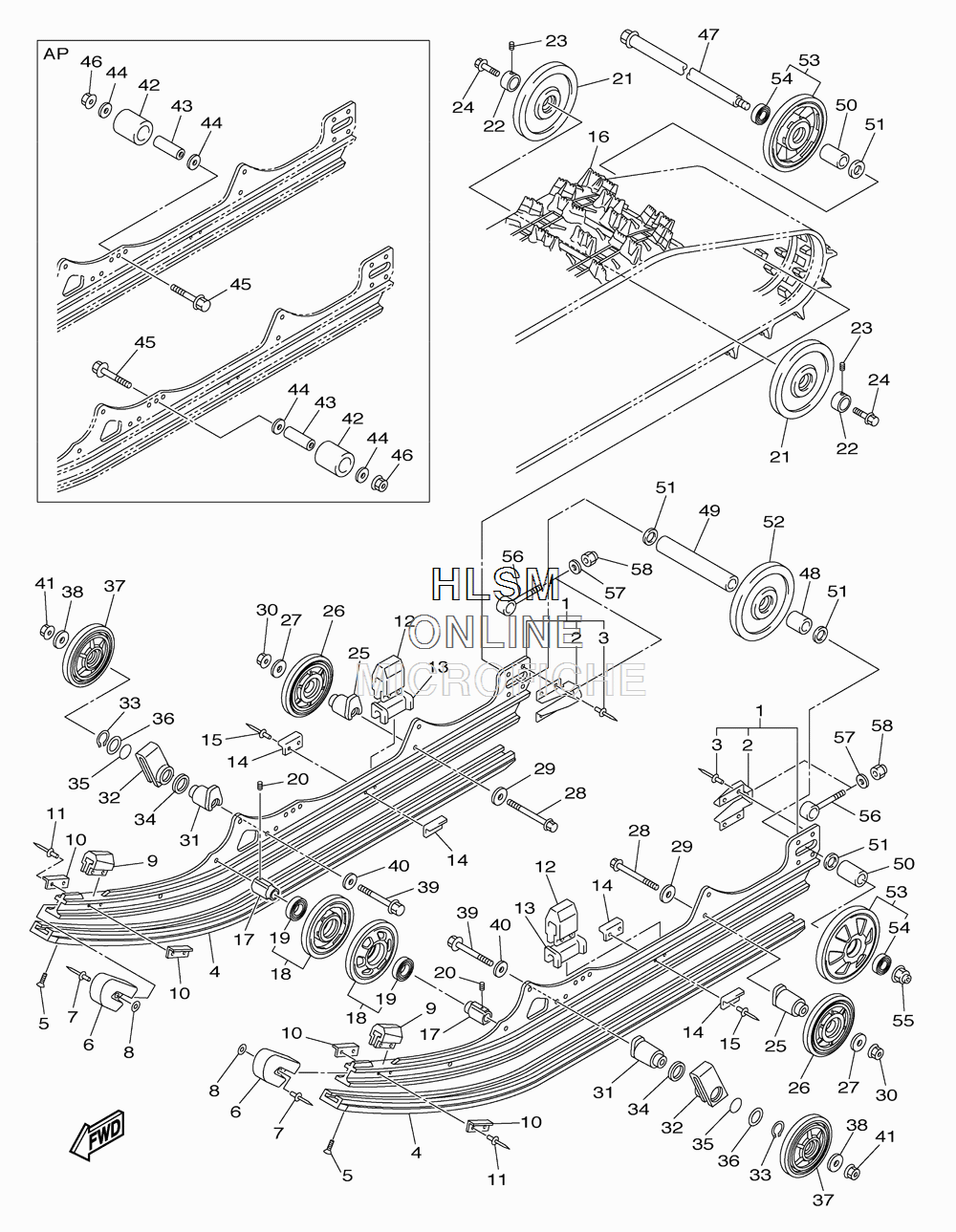

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK для Yamaha FX NYTRO MTX - 2010 года выпуска`
-
№АртикулНазвание
-
18HA-W4741-01-00 FRAME, SLIDINGFRAME, SLIDING
-
28DM-4741B-00-00 BRACKETBRACKET
-
38V0-47468-00-00 RIVETRIVET
-
48HA-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
590151-06010-00 SCREW, CROSSRECESSSCREW, CROSSRECESS
-
68ED-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
790267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
890201-047R8-00 WASHER, PLATEWASHER, PLATE
-
98ES-47456-00-00 DAMPER 1DAMPER 1
-
108K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1190267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
128CM-47457-00-00 DAMPER 2DAMPER 2
-
138CM-47341-00-00 SPACERSPACER
-
148AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1590267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
168HA-47110-00-00 TRACK ASSYTRACK ASSY
-
178ES-47319-01-00 COLLARCOLLAR
-
188HF-47310-10-00 WHEEL BLK 130MMWHEEL BLK 130MM
-
1993306-00507-00 BEARINGBEARING
-
2090113-06039-00 BOLT, SETBOLT, SET
-
218CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
228ES-47365-00-00 COLLAR 1COLLAR 1
-
2390113-06039-00 BOLT, SETBOLT, SET
-
2490105-103A1-00 BOLT, FLANGEBOLT, FLANGE
-
258ES-47419-00-00 BRACKET 7BRACKET 7
-
268FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
2790201-10038-00 WASHER, PLATEWASHER, PLATE
-
2895812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2990201-10052-00 WASHER, PLATEWASHER, PLATE
-
3095602-10200-00 NUT, U FLANGENUT, U FLANGE
-
318ES-47419-10-00 BRACKET 7BRACKET 7
-
328ES-47446-00-00 HOOK 1HOOK 1
-
3399009-35400-00 CIRCLIP (6U2)CIRCLIP (6U2)
-
3493210-35537-00 O-RINGO-RING
-
3593210-34504-00 O-RING (2HF)O-RING (2HF)
-
3690201-35013-00 WASHER, PLATEWASHER, PLATE
-
378FS-47310-01-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
3890201-10038-00 WASHER, PLATEWASHER, PLATE
-
3995812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
4090201-10052-00 WASHER, PLATEWASHER, PLATE
-
4195602-10200-00 NUT, U FLANGENUT, U FLANGE
-
428ES-47429-00-00 ROLLERROLLER
-
4390387-10025-00 COLLARCOLLAR
-
4490201-10052-00 WASHER, PLATEWASHER, PLATE
-
4595812-10060-00 BOLT, FLANGEBOLT, FLANGE
-
4695602-10200-00 NUT, U FLANGENUT, U FLANGE
-
478L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4890387-20015-00 COLLARCOLLAR
-
4990387-20016-00 COLLARCOLLAR
-
5090387-20019-00 COLLARCOLLAR
-
5190201-205R6-00 WASHER, PLATEWASHER, PLATE
-
528CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
538HF-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5493306-00444-00 BEARINGBEARING
-
5595602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
568DM-47479-00-00 COLLAR 3COLLAR 3
-
5792902-10600-00 WASHERWASHER
-
5895702-10300-00 NUT, NYLONNUT, NYLON
