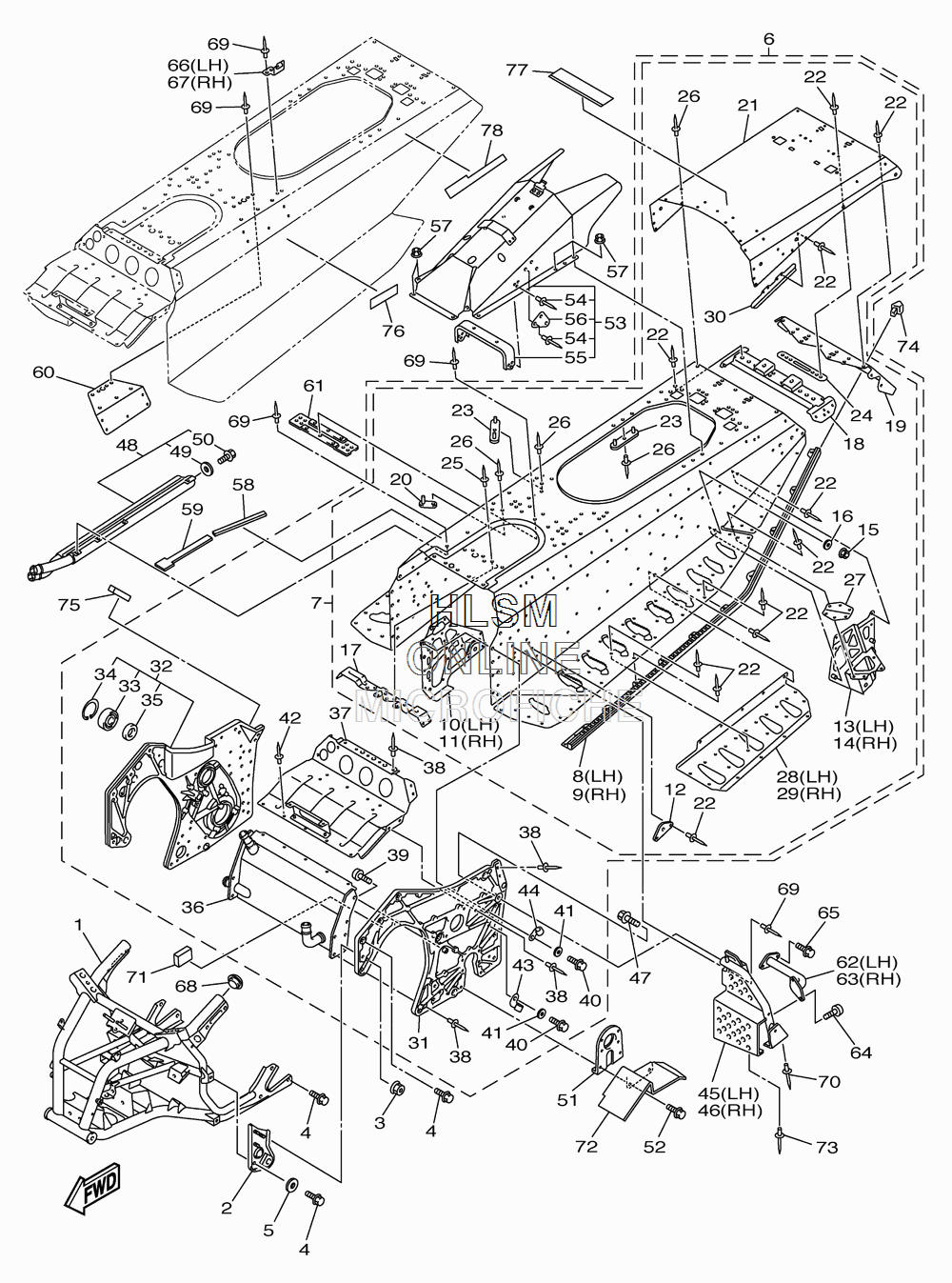

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO MTX - 2010 года выпуска
-
№АртикулНазвание
-
18GL-21940-02-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT,FLANGE (JN5)BOLT,FLANGE (JN5)
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68HR-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
78HR-21950-09-00 REAR FRAME COMP.REAR FRAME COMP.
-
88HK-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
98HK-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
108HR-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
118HR-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
128FU-21919-00-00 BRACKET, MAIN TRACK 3BRACKET, MAIN TRACK 3
-
138HR-21944-00-00 BRACKET, RR.TRACK SUSPENTIOBRACKET, RR.TRACK SUSPENTIO
-
148HR-21954-00-00 BRACKET, RR.TRACK SUSPENTIOBRACKET, RR.TRACK SUSPENTIO
-
1590176-10075-00 NUT, CROWNNUT, CROWN
-
1690201-10035-00 WASHER, PLATEWASHER, PLATE
-
178GL-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
188GL-2197N-00-00 BRACKET 7BRACKET 7
-
198HL-21923-00-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
208CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
218HR-21917-00-00 PANEL, SUB FRAME 6PANEL, SUB FRAME 6
-
2290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
238GL-22512-00-00 BRACKET 8BRACKET 8
-
248GL-21295-00-00 NUTNUT
-
2590267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
2690267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
278HK-21961-00-00 PATCH 1PATCH 1
-
288HR-21963-00-00 PATCH 3PATCH 3
-
298HR-21964-00-00 PATCH 4PATCH 4
-
308HR-2193A-00-00 PROTECTORPROTECTOR
-
318GL-21925-00-00 REINF., HOUSING 1REINF., HOUSING 1
-
328GL-21930-00-00 HOUSING, REINF SUB-ASSY (R.H)HOUSING, REINF SUB-ASSY (R.H)
-
3393306-20601-00 BEARINGBEARING
-
3499009-62500-00 CIRCLIPCIRCLIP
-
3593102-30012-00 OIL SEALOIL SEAL
-
368HA-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
378GL-21915-00-00 PANEL, SUB FRAME 4PANEL, SUB FRAME 4
-
3890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
3992012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
4097012-08016-00 BOLTBOLT
-
4190201-08512-00 WASHER, PLATEWASHER, PLATE
-
4290267-48010-00 RIVET, BLIND (4.8X12 YELLOW)RIVET, BLIND (4.8X12 YELLOW)
-
4390462-08061-00 CLAMPCLAMP
-
4490462-08064-00 CLAMPCLAMP
-
458GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
468GL-21970-01-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
4795827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
488HA-1241A-00-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
4990210-06006-00 WASHER, SEALWASHER, SEAL
-
5097022-06010-00 BOLT(3JP)BOLT(3JP)
-
518GL-21920-00-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
5295812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
538GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
5490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
558GL-2194L-00-00 STAY, MUFFERSTAY, MUFFER
-
568GL-21946-00-00 BRACKET, SEAT FITTINGBRACKET, SEAT FITTING
-
5790176-06016-00 NUT, CAPNUT, CAP
-
588GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
598GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
608GL-21967-00-00 PATCH 7PATCH 7
-
618GL-21988-00-00 PATCH 8PATCH 8
-
628GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
638GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
6492012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6595812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
668GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
678GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
68180-22117-00-00 CAPCAP
-
6990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
7090267-48016-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
718GL-21852-00-00 DAMPERDAMPER
-
728GL-2197B-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
7390267-48023-00 RIVET, BLIND (4.8X12.1 YELLOW)RIVET, BLIND (4.8X12.1 YELLOW)
-
748FS-2312G-00-00 PLUGPLUG
-
7590520-05012-00 DAMPER, PLATEDAMPER, PLATE
-
768GL-2179D-20-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
778HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
788GL-2199A-00-00 GRAPHIC 1GRAPHIC 1
