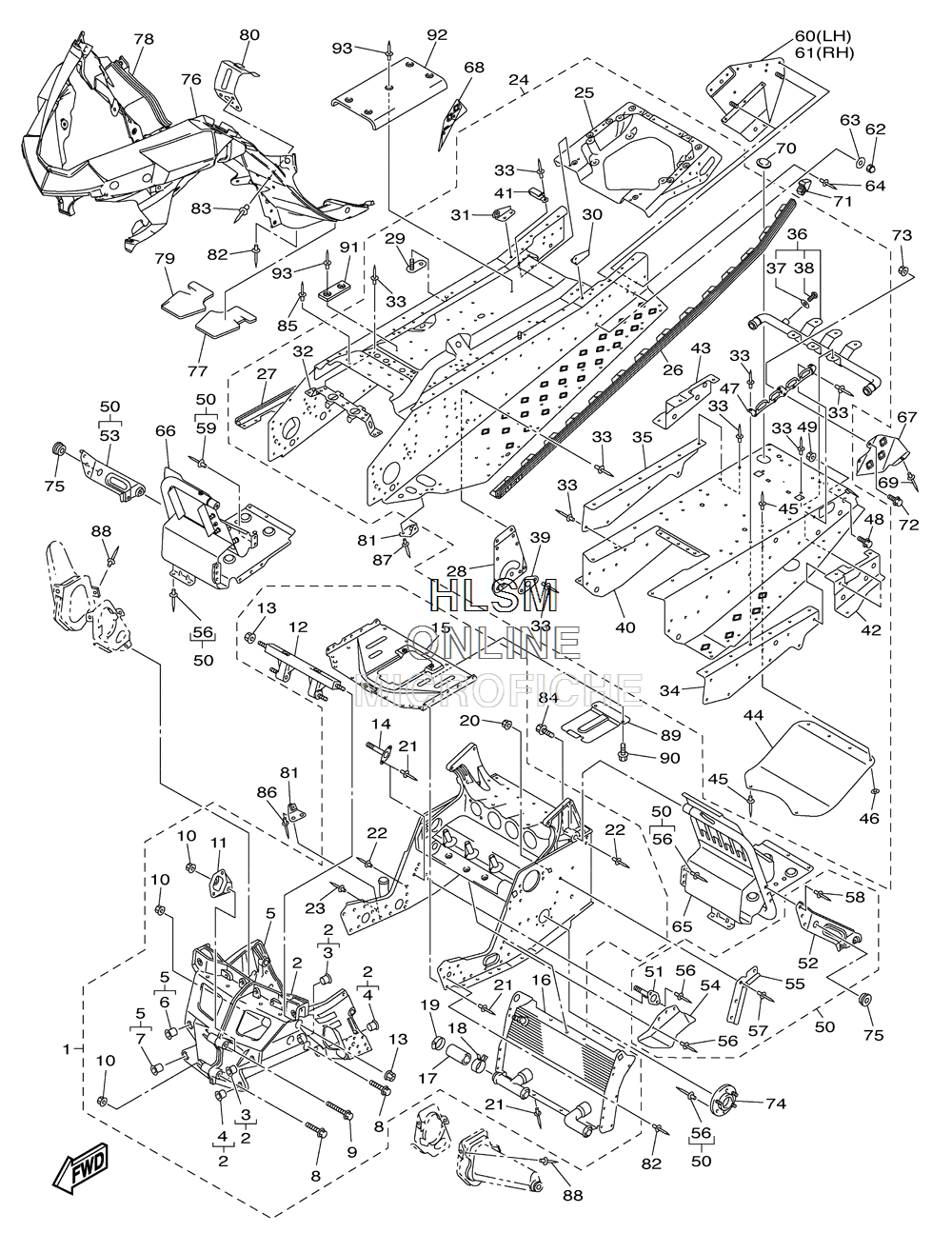

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha APEX MTX - 2010 года выпуска`
-
№АртикулНазвание
-
18GY-21940-10-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-12-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16004-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-12-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16004-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
148FS-21939-00-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
158FR-2193A-01-00 PROTECTORPROTECTOR
-
168GY-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
178FA-12551-00-00 HOSE 7HOSE 7
-
1890467-28046-00 CLIPCLIP
-
1990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
2290267-48176-00 RIVET, BLINDRIVET, BLIND
-
2390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
248FS-21950-30-00 REAR FRAME COMP.REAR FRAME COMP.
-
258FS-W2199-00-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
268FS-21926-20-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
278FS-21936-20-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
288FS-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
298CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
308FA-2194X-00-00 BRACKET 1BRACKET 1
-
318FA-2195X-00-00 BRACKET 2BRACKET 2
-
328FA-2194H-01-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
348FS-21963-01-00 PATCH 3PATCH 3
-
358FS-21964-01-00 PATCH 4PATCH 4
-
368FS-1241A-10-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
3790210-06006-00 WASHER, SEALWASHER, SEAL
-
3898502-06008-00 SCREW, PAN HEADSCREW, PAN HEAD
-
398FK-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
408FS-21916-10-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
4190465-08125-00 CLAMPCLAMP
-
428FS-21961-01-00 PATCH 1PATCH 1
-
438FS-21962-01-00 PATCH 2PATCH 2
-
448FS-2197C-00-00 PROTECTOR, FRAME 3PROTECTOR, FRAME 3
-
4590267-48193-00 RIVET,BLIND (4.7X19.5 SILVER)RIVET,BLIND (4.7X19.5 SILVER)
-
4690201-054K4-00 WASHER, PLATEWASHER, PLATE
-
478FS-2176M-00-00 HOOKHOOK
-
4895022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
4995702-08500-00 NUT, FLANGENUT, FLANGE
-
508JA-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
518FN-21939-00-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
528JA-2196M-00-00 BRACKET, 5BRACKET, 5
-
538JA-2197M-00-00 BRACKET, 6BRACKET, 6
-
548FP-2198G-01-00 COVER 2COVER 2
-
558FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
5690267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
5790267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
5890267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
5990267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
608FS-21944-10-00 BRACKET, RR.TRACK SUSPENTION 1BRACKET, RR.TRACK SUSPENTION 1
-
618FS-21954-10-00 BRACKET, RR.TRACK SUSPENTION 2BRACKET, RR.TRACK SUSPENTION 2
-
6295304-10800-00 NUT, CROWNNUT, CROWN
-
6390201-10038-00 WASHER, PLATEWASHER, PLATE
-
6490267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
658FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
668FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
678FS-2195A-00-00 PROTECTOR, FRAME APROTECTOR, FRAME A
-
688FS-2195B-00-00 PROTECTOR, FRAME BPROTECTOR, FRAME B
-
6990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
708FS-21875-00-00 CAPCAP
-
718FS-2312G-00-00 PLUGPLUG
-
7295022-08016-00 BOLT, FLANGEBOLT, FLANGE
-
7395702-08500-00 NUT,FLANGE (JN5)NUT,FLANGE (JN5)
-
748EK-21920-01-00 HOUSING, REINF SUB-ASSY(L.H)HOUSING, REINF SUB-ASSY(L.H)
-
7590480-13567-00 GROMMETGROMMET
-
768FP-2196A-02-00 FRAME UNDER 1FRAME UNDER 1
-
778FP-77374-00-00 DAMPER 2DAMPER 2
-
788FP-2196E-02-00 FRAME, UNDER 2FRAME, UNDER 2
-
798FP-77375-00-00 DAMPER 3DAMPER 3
-
808FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
818FA-2196F-00-00 BRACKET 3BRACKET 3
-
8290267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
8390267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
8495822-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
8590267-48169-00 RIVET, BLINDRIVET, BLIND
-
8690267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
8790267-48095-00 RIVET,BLIND (4.8X12.6 SILVER)RIVET,BLIND (4.8X12.6 SILVER)
-
8890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
898FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
9092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
918FA-21998-00-00 SPACERSPACER
-
928FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9390267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
