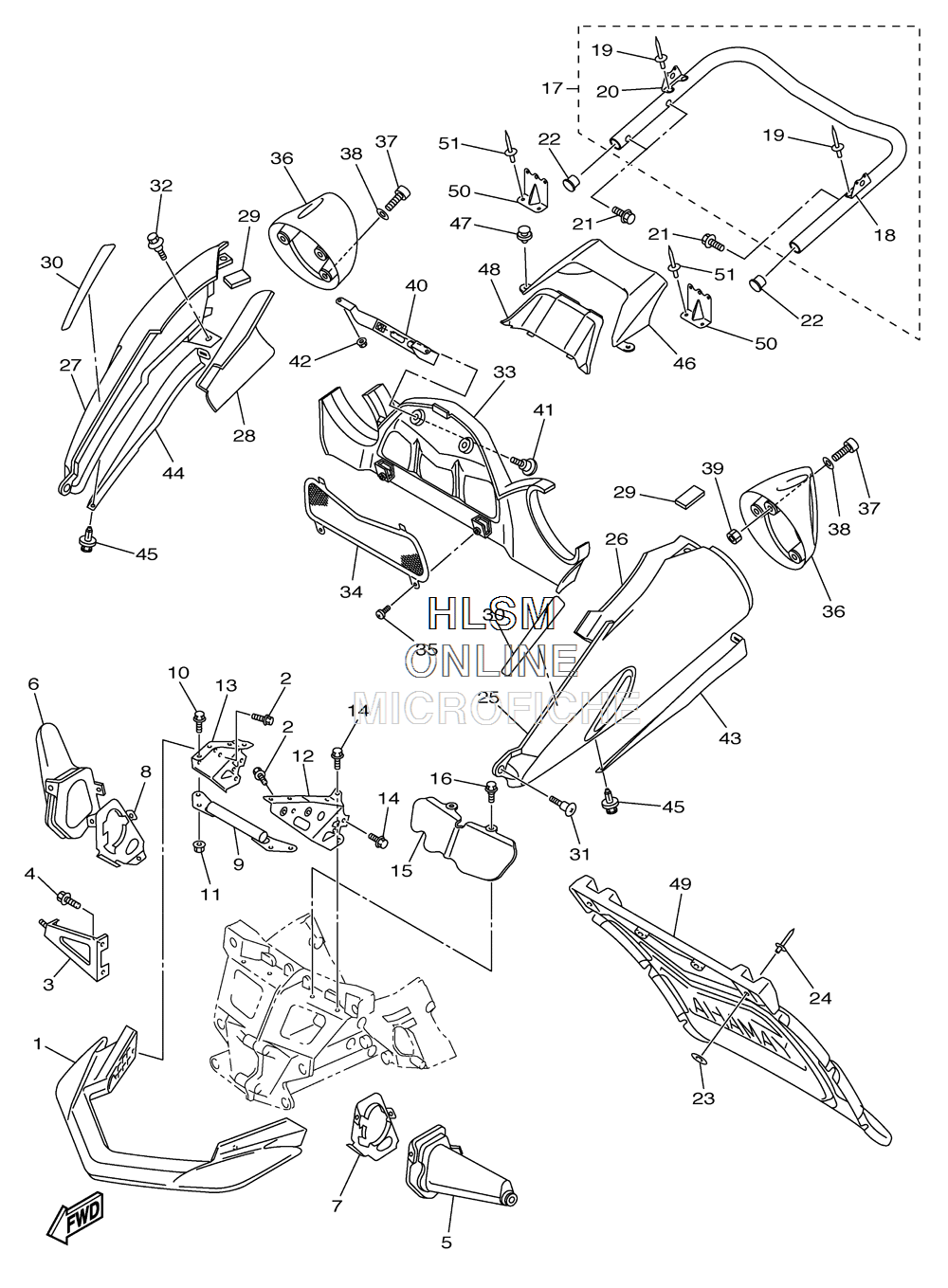

BUMPER - FRONT AND REAR для Yamaha APEX MTX - 2010 года выпуска`
-
№АртикулНазвание
-
18FA-77511-01-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295812-08016-00 BOLT,FLANGE (JN5)BOLT,FLANGE (JN5)
-
38ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
495822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
58FU-2198F-01-00 COVER 1COVER 1
-
68FU-2198J-01-00 COVER 3COVER 3
-
78FU-2195E-01-00 PLATE, STRG BRACKET 1PLATE, STRG BRACKET 1
-
88FU-2195F-01-00 PLATE, STRG BRACKET 2PLATE, STRG BRACKET 2
-
98FP-21979-00-00 BRKT., FR. HOODBRKT., FR. HOOD
-
1095822-06014-00 BOLT, FLANGEBOLT, FLANGE
-
1195702-06500-00 NUT, FLANGENUT, FLANGE
-
128FA-21949-00-00 BRACKET, FRONTBRACKET, FRONT
-
138FA-21959-00-00 BRACKET, FRONT BUMPERBRACKET, FRONT BUMPER
-
1495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
158FP-22865-00-00 COVER, FRONTCOVER, FRONT
-
1690109-06261-00 BOLTBOLT
-
178FS-77540-00-00 REAR BUMPER COMP.REAR BUMPER COMP.
-
188FS-77581-00-00 BRACKET 1BRACKET 1
-
1990267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
208FS-77582-00-00 BRACKET 2BRACKET 2
-
2195822-08020-00 BOLT, FLANGE (8AB)BOLT, FLANGE (8AB)
-
2290338-18122-00 PLUGPLUG
-
2390201-04325-00 WASHER, PLATEWASHER, PLATE
-
2490267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
258FP-77551-01-P5 PROTECTOR 1PROTECTOR 1
-
268FP-77261-00-00 LINING, SHROUD 1LINING, SHROUD 1
-
278FP-77552-01-P5 PROTECTOR 2PROTECTOR 2
-
288FP-77262-00-00 LINING, SHROUD 2LINING, SHROUD 2
-
298FP-77263-00-00 LINING, SHROUD 3LINING, SHROUD 3
-
308FR-77561-00-00 PROTECTOR, SIDE 1PROTECTOR, SIDE 1
-
3190154-06009-00 SCREW, BINDINGSCREW, BINDING
-
3290109-06220-00 BOLTBOLT
-
338FS-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
348FS-77441-00-00 LOUVER 1LOUVER 1
-
3597702-50016-00 SCREW, TAPPINGSCREW, TAPPING
-
368FS-77517-00-00 CAPCAP
-
3791314-06020-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3892990-06200-00 WASHER, PLAINWASHER, PLAIN
-
3995380-06600-00 NUT, HEXAGONNUT, HEXAGON
-
408FS-77533-00-00 BRACKET, REARBRACKET, REAR
-
4190109-06220-00 BOLTBOLT
-
4295602-06200-00 NUT-UNUT-U
-
438FS-77556-00-00 PROTECTOR 6PROTECTOR 6
-
448FS-77557-00-00 PROTECTOR 7PROTECTOR 7
-
4590269-06081-00 RIVETRIVET
-
468GL-84516-00-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
4790269-08006-00 RIVETRIVET
-
488FS-84544-00-00 COVERCOVER
-
498GT-K7595-00-00 FLAPFLAP
-
508FS-83955-00-00 BRACKET 1BRACKET 1
-
5190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
