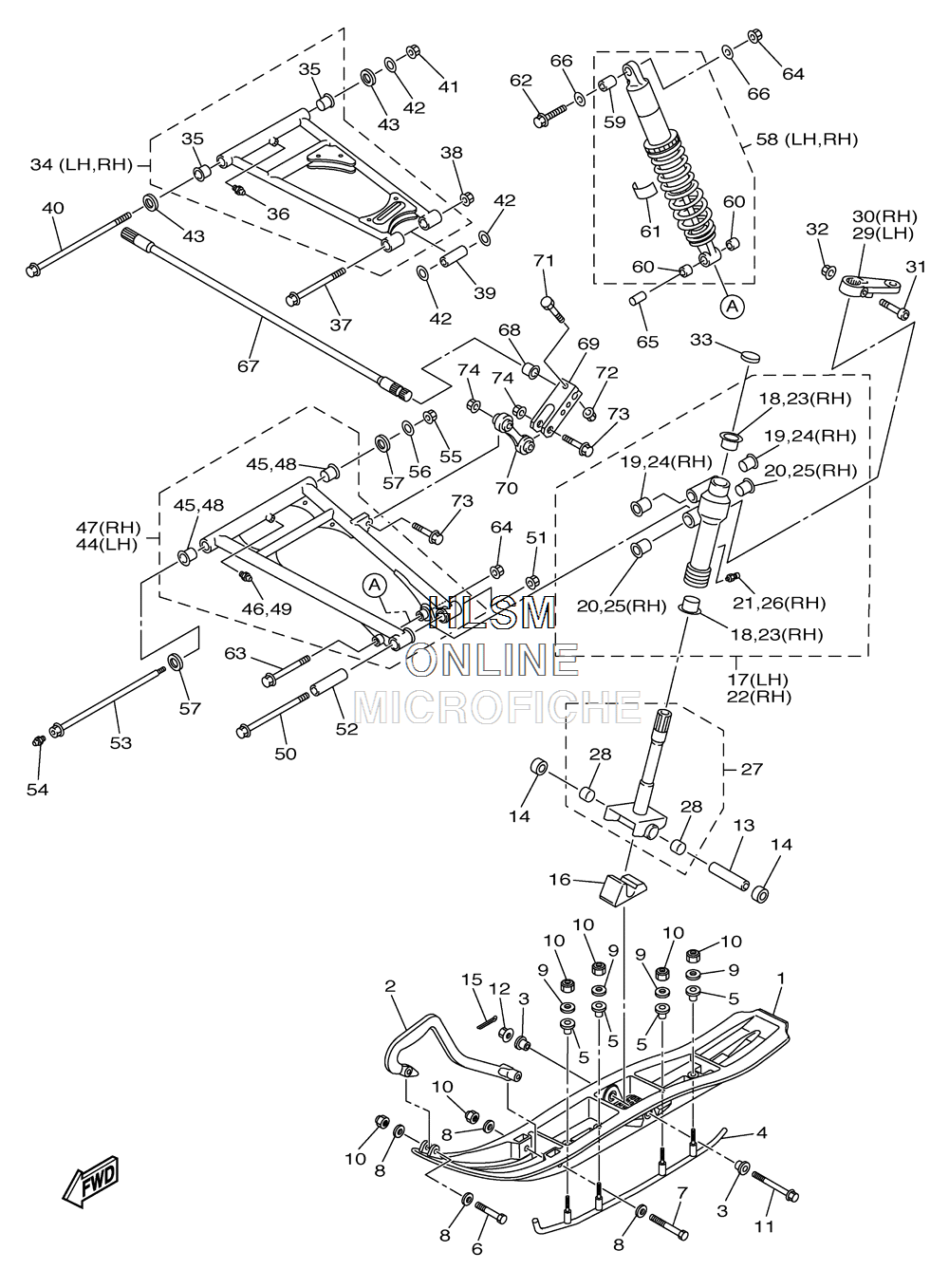

SUSPENSION - FRONT W/ SKI ASSY для Yamaha APEX MTX - 2010 года выпуска`
-
№АртикулНазвание
-
18FK-F3711-00-00 SKI 1SKI 1
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASTICBLUE 8DM HANDLE PLASTIC
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EN-F3731-01-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLT,HEXAGONBOLT,HEXAGON
-
79702M-08100-00 BOLT (83L)BOLT (83L)
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT,LOCKNUT,LOCK
-
1190105-10106-00 BOLT, FLANGEBOLT, FLANGE
-
1295607-10200-00 NUT, U FLANGENUT, U FLANGE
-
1390387-10036-00 COLLARCOLLAR
-
1490387-16013-00 COLLARCOLLAR
-
1591401-20020-00 PIN, COTTERPIN, COTTER
-
168CR-23743-10-00 STOPPER 1STOPPER 1
-
178FA-23501-10-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
1890381-25115-00 BUSH, SOLIDBUSH, SOLID
-
1990381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
2090381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
2193700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
228FA-23502-10-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2390381-25115-00 BUSH, SOLIDBUSH, SOLID
-
2490381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
2590381-18N51-00 BUSH, SOLIDBUSH, SOLID
-
2693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
278FG-23803-00-00 COLUMN, SKI ASSYCOLUMN, SKI ASSY
-
2890384-16N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
298FA-23851-00-00 ARM, OUTSIDE 1ARM, OUTSIDE 1
-
308FA-23852-00-00 ARM, OUTSIDE 2ARM, OUTSIDE 2
-
3190110-08N53-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
3295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
333YK-22472-40-00 CAP, CASECAP, CASE
-
348GY-23540-30-00 FRONT UPPER ARM COMP.FRONT UPPER ARM COMP.
-
3590381-15N50-00 BUSH, SOLIDBUSH, SOLID
-
3693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
3790105-10N56-00 BOLT, FLANGEBOLT, FLANGE
-
3895607-10200-00 NUT, U FLANGENUT, U FLANGE
-
3990387-10N58-00 COLLARCOLLAR
-
4090105-10N54-00 BOLT, FLANGEBOLT, FLANGE
-
4195607-10200-00 NUT, U FLANGENUT, U FLANGE
-
4290201-106F2-00 WASHER, PLATEWASHER, PLATE
-
4390209-15N50-00 WASHERWASHER
-
448GY-23570-30-00 FRONT LOWER ARM COMP. (LEFT)FRONT LOWER ARM COMP. (LEFT)
-
4590381-16N51-00 BUSH, SOLIDBUSH, SOLID
-
4693700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
478GY-23580-30-00 FRONT LOWER ARM COMP. (RIGHT)FRONT LOWER ARM COMP. (RIGHT)
-
4890381-16N51-00 BUSH, SOLIDBUSH, SOLID
-
4993700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5090105-12N54-00 BOLT, FLANGEBOLT, FLANGE
-
5195607-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
5290387-12N54-00 COLLARCOLLAR
-
5390401-10043-00 BOLT, UNIONBOLT, UNION
-
5493700-06004-00 NIPPLE, GREASENIPPLE, GREASE
-
5595607-10200-00 NUT, U FLANGENUT, U FLANGE
-
5690201-106F2-00 WASHER, PLATEWASHER, PLATE
-
5790209-15N50-00 WASHERWASHER
-
588FS-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
598FA-2331R-00-00 DAMPER, BUSH BDAMPER, BUSH B
-
6090384-15N51-00 BUSH, BIMETAL FORMEDBUSH, BIMETAL FORMED
-
614AA-22259-70-00 LABEL, WARNINGLABEL, WARNING
-
6290105-10232-00 BOLT,WASHER BASEDBOLT,WASHER BASED
-
6390105-10392-00 BOLT, FLANGEBOLT, FLANGE
-
6495607-10200-00 NUT, U FLANGENUT, U FLANGE
-
6590387-10N59-00 COLLARCOLLAR
-
6690201-106F2-00 WASHER, PLATEWASHER, PLATE
-
678FA-2386E-00-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
688FA-2386G-00-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
698FA-2386L-10-00 ARM, STABILIZERARM, STABILIZER
-
708ES-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
7190101-06765-00 BOLTBOLT
-
7295604-06200-00 NUT, U FLANGENUT, U FLANGE
-
7395814-08030-00 BOLT, FLANGEBOLT, FLANGE
-
7495604-08200-00 NUT, U FLANGENUT, U FLANGE
