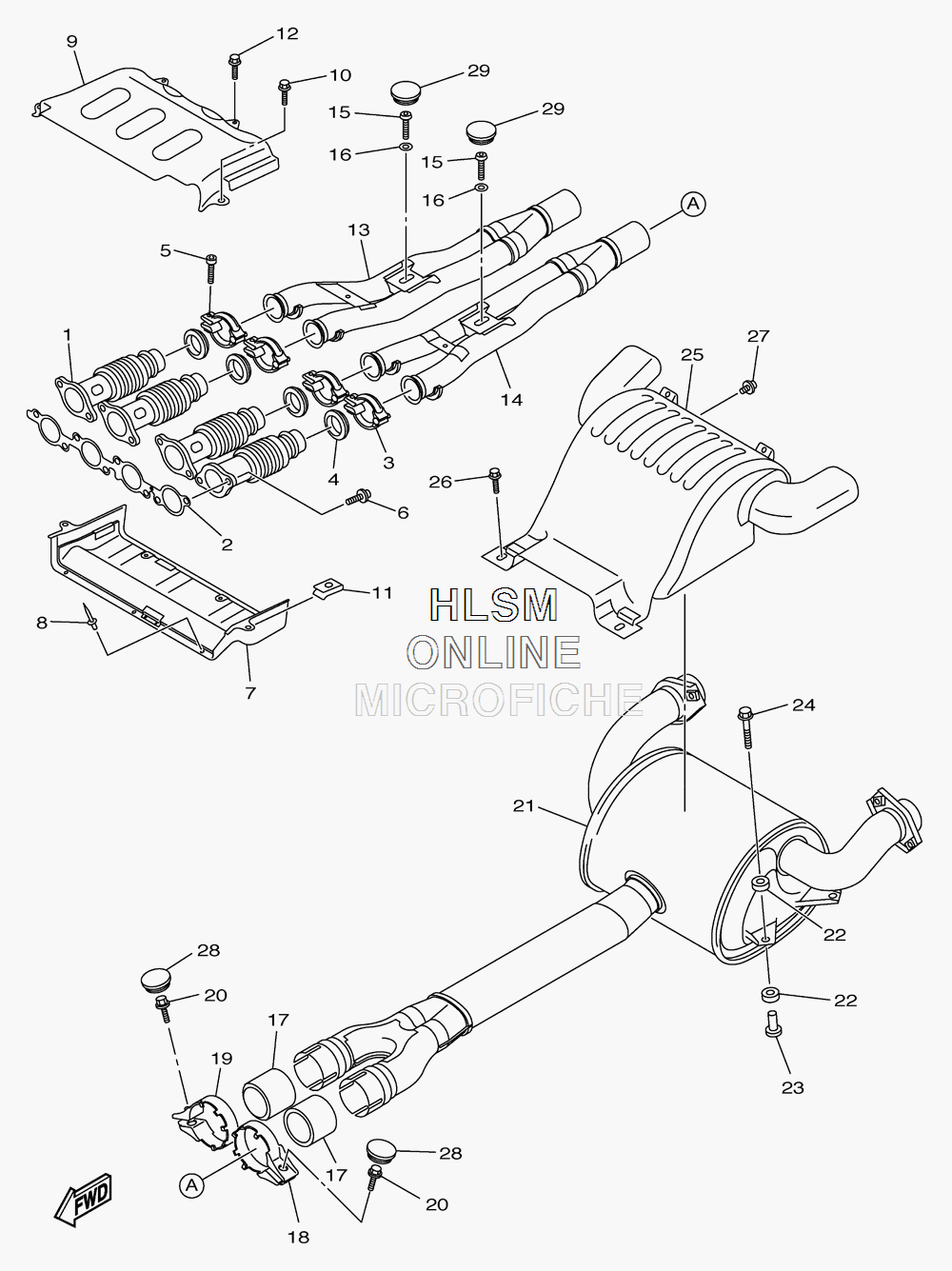

EXHAUST SYSTEM для Yamaha APEX LTX - 2010 года выпуска`
-
№АртикулНазвание
-
18FU-14615-01-00 JOINT, EXHAUST 1JOINT, EXHAUST 1
-
28FA-14613-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
38FA-14715-00-00 BAND, MUFFLERBAND, MUFFLER
-
48FA-14623-00-00 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
-
591312-06030-00 BOLTBOLT
-
695022-08020-00 BOLT, FLANGEBOLT, FLANGE
-
78FU-14627-00-00 COVER, EXHAUSTCOVER, EXHAUST
-
890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
98FP-14637-00-00 EXHAUST COVER ASS'YEXHAUST COVER ASS'Y
-
1095812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
1190183-060A0-00 NUT, SPRINGNUT, SPRING
-
1295812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
138FR-14610-00-00 EXHAUST PIPE ASSY 1EXHAUST PIPE ASSY 1
-
148FR-14620-00-00 EXHAUST PIPE ASSY 2EXHAUST PIPE ASSY 2
-
1592012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1692990-08200-00 WASHERWASHER
-
178FA-14714-10-00 GASKET, MUFFLERGASKET, MUFFLER
-
188FA-14788-00-00 BAND, SILENCERBAND, SILENCER
-
198FA-14789-00-00 BAND, SILENCERBAND, SILENCER
-
2095812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
218FR-14750-00-00 SILENCER ASSYSILENCER ASSY
-
228FA-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
2390387-08071-00 COLLARCOLLAR
-
2490119-08112-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
258FP-14708-01-00 PROTECTOR ASSYPROTECTOR ASSY
-
2690119-06179-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
2795812-06008-00 BOLT, FLANGEBOLT, FLANGE
-
2890338-20004-00 PLUGPLUG
-
2990338-20007-00 PLUGPLUG
