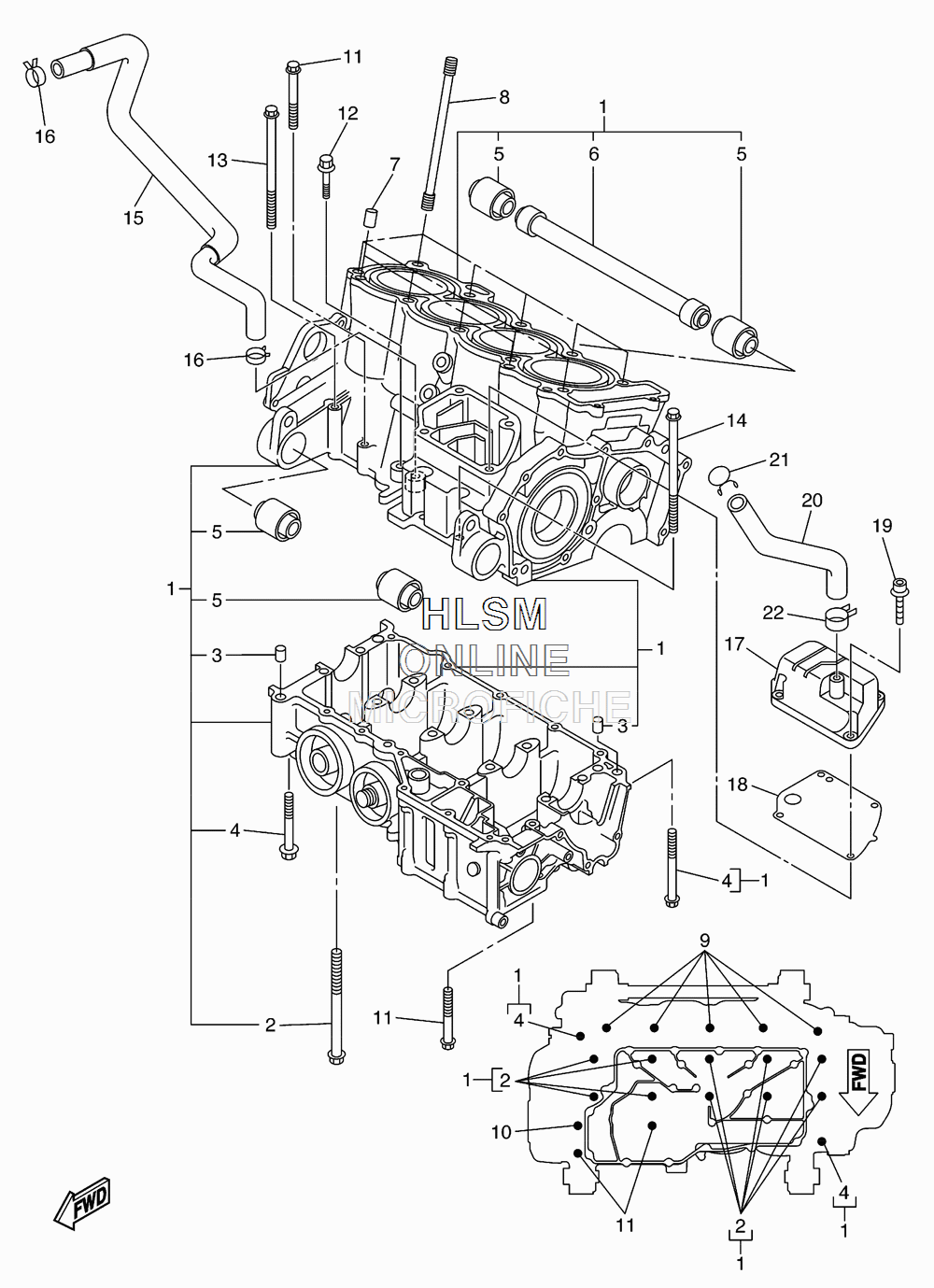

CRANKCASE ASSY для Yamaha APEX LTX - 2010 года выпуска`
-
№АртикулНазвание
-
18FP-15100-03-00 CRANKCASE ASSYCRANKCASE ASSY
-
290119-09004-00 BOLT, WITH WASHERBOLT, WITH WASHER
-
399530-10014-00 PIN, DOWELPIN, DOWEL
-
490109-06100-00 BOLTBOLT
-
58FA-2139X-00-00 DAMPERDAMPER
-
68FA-21459-00-00 SPACERSPACER
-
799530-10114-00 PIN, DOWELPIN, DOWEL
-
890116-10619-00 BOLT, STUDBOLT, STUD
-
995812-06055-00 BOLT, FLANGEBOLT, FLANGE
-
1095812-06025-00 BOLT, FLANGEBOLT, FLANGE
-
1195817-06045-00 BOLT, FLANGEBOLT, FLANGE
-
1290105-06087-00 BOLT, FLANGEBOLT, FLANGE
-
1395812-06080-00 BOLT, FLANGEBOLT, FLANGE
-
1495812-06090-00 BOLT, FLANGEBOLT, FLANGE
-
158FP-11166-00-00 PIPE, BREATHER 1PIPE, BREATHER 1
-
1690467-20050-00 CLIPCLIP
-
178FP-15413-00-00 COVERCOVER
-
188FP-15462-01-00 GASKET, CRANKCASE COVER 3GASKET, CRANKCASE COVER 3
-
1990110-06163-00 BOLT, HEXAGON SOCKET HEADBOLT, HEXAGON SOCKET HEAD
-
208FP-11167-00-00 PIPE, BREATHER 2PIPE, BREATHER 2
-
2190467-220A1-00 CLIPCLIP
-
2290467-220A0-00 CLIPCLIP
