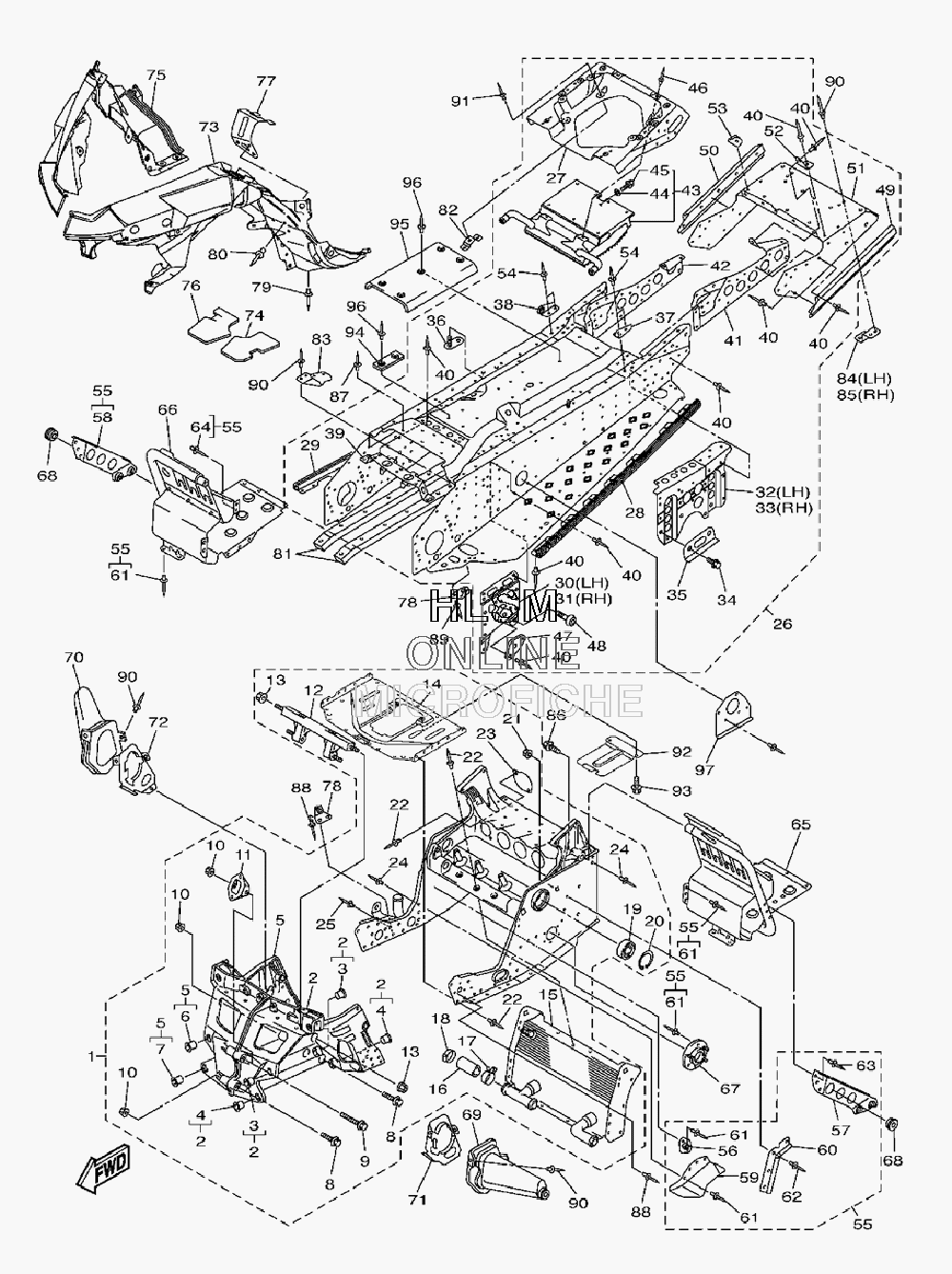

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha RS VECTOR LTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GM-21940-10-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16001-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-11-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16001-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
148FR-2193A-00-00 PROTECTORPROTECTOR
-
158FA-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
168FA-12551-00-00 HOSE 7HOSE 7
-
1790467-28046-00 CLIP, SCISSORCLIP, SCISSOR
-
1890450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
1993306-20650-00 BEARINGBEARING
-
2099009-62500-00 CIRCLIPCIRCLIP
-
2195607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2290267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
238ES-2131D-00-00 PLATE, COVERPLATE, COVER
-
2490267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
2590267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
268FL-21950-10-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FL-21950-20-00 REAR FRAME COMP.REAR FRAME COMP.
-
278FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
288FG-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
288FU-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
298FG-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
298FU-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
308FU-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
318FU-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
328FT-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
338FT-21954-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
3495814-10020-00 BOLT, FLANGEBOLT, FLANGE
-
358FU-21988-01-00 PATCH 8PATCH 8
-
368CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
378FA-2194X-00-00 BRACKET 1BRACKET 1
-
388FA-2195X-00-00 BRACKET 2BRACKET 2
-
398ES-2194H-00-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
4090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
418FT-21963-00-00 PATCH 3PATCH 3
-
428FT-21964-00-00 PATCH 4PATCH 4
-
438FT-1241A-00-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
4490210-06006-00 WASHER, SEALWASHER, SEAL
-
4595812-06012-00 BOLT, FLANGEBOLT, FLANGE
-
4690267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
478FU-21919-00-00 BRACKET, MAIN TRACK 3BRACKET, MAIN TRACK 3
-
4892014-10020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
498FG-2111J-00-00 MEMBER, SIDE 1MEMBER, SIDE 1
-
508FG-2111K-00-00 MEMBER, SIDE 2MEMBER, SIDE 2
-
518FT-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
528FG-21988-00-00 PATCH 8PATCH 8
-
538FG-21989-00-00 PATCH 9PATCH 9
-
5490267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
558FP-W2195-10-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
568CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
578FP-2196M-00-00 BRACKET, 5BRACKET, 5
-
588FP-2197M-00-00 BRACKET, 6BRACKET, 6
-
598FP-2198G-00-00 COVER 2COVER 2
-
608FA-21999-00-00 CLAMP, WIREHARNESSCLAMP, WIREHARNESS
-
6190267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
6290267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
6390267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
6490267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
658FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
668GM-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
678EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6890480-13567-00 GROMMETGROMMET
-
698FU-2198F-00-00 COVER 1COVER 1
-
708FU-2198J-00-00 COVER 3COVER 3
-
718FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
728FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
738GM-2196A-00-00 FRAME UNDER 1FRAME UNDER 1
-
748GM-77374-00-00 DAMPER 2DAMPER 2
-
758FP-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
768FP-77375-00-00 DAMPER 3DAMPER 3
-
778FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
788FA-2196F-00-00 BRACKET 3BRACKET 3
-
7990267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
8090267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
818FT-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
828FT-2197N-00-00 BRACKET 7BRACKET 7
-
838FU-2197N-00-00 BRACKET 7BRACKET 7
-
848FT-2196F-00-00 BRACKET 3BRACKET 3
-
858FT-2196G-00-00 BRACKET 4BRACKET 4
-
8695822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8790267-48169-00 RIVET, BLIND (4.8X14.1 BLACK)RIVET, BLIND (4.8X14.1 BLACK)
-
8890267-48083-00 RIVET,BLIND (4.8X15.2 SILVER)RIVET,BLIND (4.8X15.2 SILVER)
-
8990267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
9090267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
9190267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
928FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
9392012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
948FA-21998-00-00 SPACERSPACER
-
958FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9690267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
978FR-21962-00-00 PATCH 2PATCH 2
