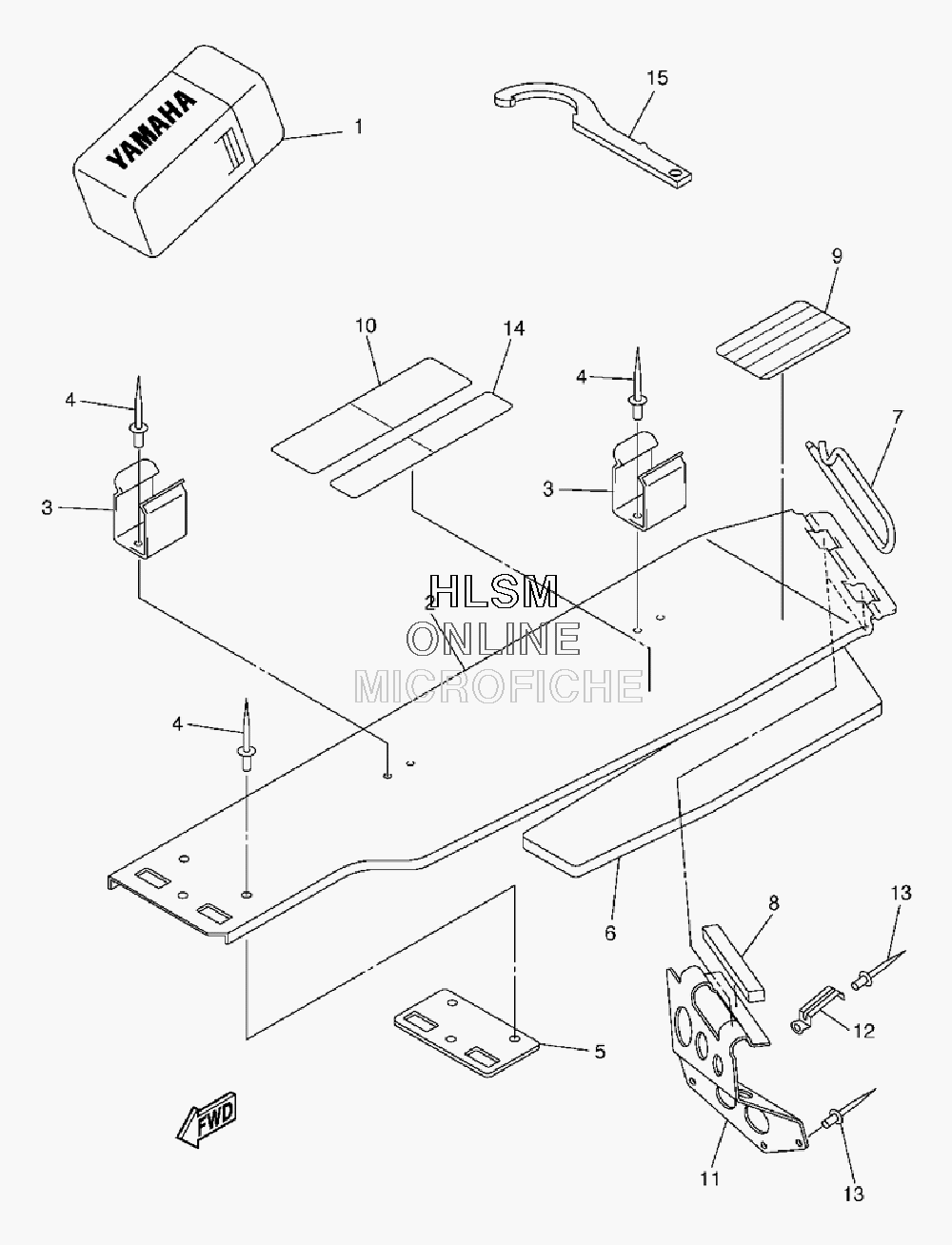

BELT GUARD W/ TOOL BOX для Yamaha RS VECTOR LTX - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-28100-01-00 TOOL KITTOOL KIT
-
28FP-77311-00-00 GUARD, DRIVEGUARD, DRIVE
-
38CR-77338-00-00 STAY, BELTSTAY, BELT
-
490267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
58FP-77373-00-00 PROTECTORPROTECTOR
-
68FP-77461-00-00 DAMPER 1DAMPER 1
-
78CR-77384-01-00 PINPIN
-
88CR-77319-00-00 DAMPER 1DAMPER 1
-
98BD-77762-00-00 LABEL, WARNING 2LABEL, WARNING 2
-
108EK-47578-20-00 LABEL 1LABEL 1
-
118FA-21973-00-00 HOOKHOOK
-
1290465-08048-00 CLAMPCLAMP
-
1390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
148ES-1417E-00-00 LABEL, CAUTIONLABEL, CAUTION
-
152NK-28135-00-00 SPANNER, SPECIALSPANNER, SPECIAL
