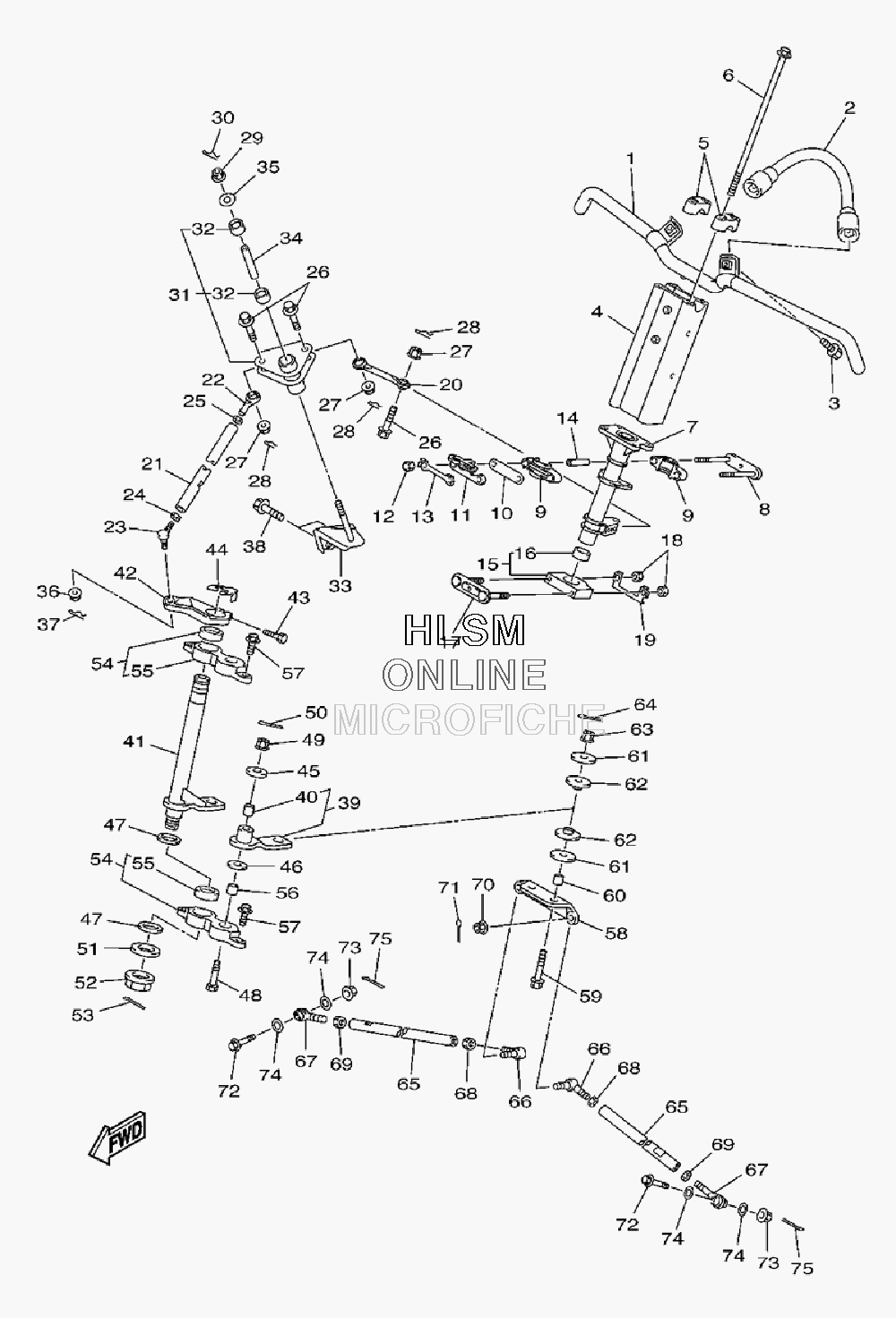

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha PHAZER MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GP-26111-10-00 HANDLEBARHANDLEBAR
-
28GE-23829-00-00 STRAP, STEERINGSTRAP, STEERING
-
392014-06020-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
48GC-2381B-00-00 JOINTJOINT
-
58K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
68GC-23436-00-00 BOLTBOLT
-
78GC-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
88GC-23867-00-00 HOLDER 2HOLDER 2
-
98FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
108FA-23867-00-00 HOLDER 2HOLDER 2
-
118GC-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
1295302-08800-00 NUT, CROWNNUT, CROWN
-
131UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
1490387-09006-00 COLLARCOLLAR
-
158GC-23812-00-00 PLANE BEARING, STEERINGPLANE BEARING, STEERING
-
1693315-42536-00 BEARING, CYL.#15BEARING, CYL.#15
-
178GJ-23857-00-00 HOLDERHOLDER
-
1895312-08600-00 NUTNUT
-
198GJ-23894-00-00 WASHER, LOCK 1WASHER, LOCK 1
-
208GC-23828-00-00 ROD, STEERINGROD, STEERING
-
218GC-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
228GC-23841-00-00 JOINT, UNIVERSAL 1JOINT, UNIVERSAL 1
-
238CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
2495302-10700-00 NUTNUT
-
2590170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
2690105-08321-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
2795702-08500-00 NUT, FLANGENUT, FLANGE
-
2890468-16001-00 CLIPCLIP
-
2995702-10500-00 NUT, FLANGENUT, FLANGE
-
3090468-18189-00 CLIPCLIP
-
318GC-2384E-00-00 ARM, CONTROL 1ARM, CONTROL 1
-
3293317-41767-00 BEARINGBEARING
-
338GK-23881-00-00 BRACKET 1BRACKET 1
-
348GC-23846-00-00 SHAFT, PITMANSHAFT, PITMAN
-
3590201-121U3-00 WASHER, PLATEWASHER, PLATE
-
3695702-10500-00 NUT, WITH WASHERNUT, WITH WASHER
-
3791402-20012-00 PIN, COTTERPIN, COTTER
-
3895812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
398GC-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
408GC-23526-00-00 BUSHBUSH
-
418GC-2389M-01-00 PIVOT ARM ASSY 2PIVOT ARM ASSY 2
-
428GC-2381A-00-00 ARM, INSIDEARM, INSIDE
-
4391312-08025-00 BOLTBOLT
-
448GC-23183-00-00 CIRCLIPCIRCLIP
-
4590201-124G7-00 WASHER, PLATEWASHER, PLATE
-
4690201-25291-00 WASHER, PLATEWASHER, PLATE
-
4790201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
488GC-23346-00-00 BOLT 1BOLT 1
-
4995702-12500-00 NUT, WITH WASHERNUT, WITH WASHER
-
5091402-25020-00 PIN, COTTERPIN, COTTER
-
5190201-220T0-00 WASHER, PLATEWASHER, PLATE
-
5290179-22412-00 NUT, SPEC'L SHAPENUT, SPEC'L SHAPE
-
5391402-20035-00 PIN, COTTERPIN, COTTER
-
548GC-2389H-00-00 BRACKET, PIVOTBRACKET, PIVOT
-
5593315-42536-00 BEARING, CYL.#15BEARING, CYL.#15
-
568GC-23113-00-00 COLLARCOLLAR
-
5795822-10025-00 BOLT, FLANGEBOLT, FLANGE
-
588GC-23826-00-00 ARM, IDLERARM, IDLER
-
5990105-10728-00 BOLT, WASHER BASEDBOLT, WASHER BASED
-
6090387-10070-00 COLLARCOLLAR
-
6190201-100S2-00 WASHER, PLATEWASHER, PLATE
-
628GC-23362-00-00 BUSH 1BUSH 1
-
6390185-10011-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
6491402-20012-00 PIN, COTTERPIN, COTTER
-
658GP-23831-00-00 ROD, TIEROD, TIE
-
668CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
678GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
6895302-10700-00 NUTNUT
-
6990170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
7095702-10500-00 NUT, FLANGENUT, FLANGE
-
7191402-20012-00 PIN, COTTERPIN, COTTER
-
728GC-23493-00-00 BOLTBOLT
-
7395702-08500-00 NUT, FLANGENUT, FLANGE
-
7490201-06018-00 WASHER, PLATEWASHER, PLATE
-
7591402-20012-00 PIN, COTTERPIN, COTTER
