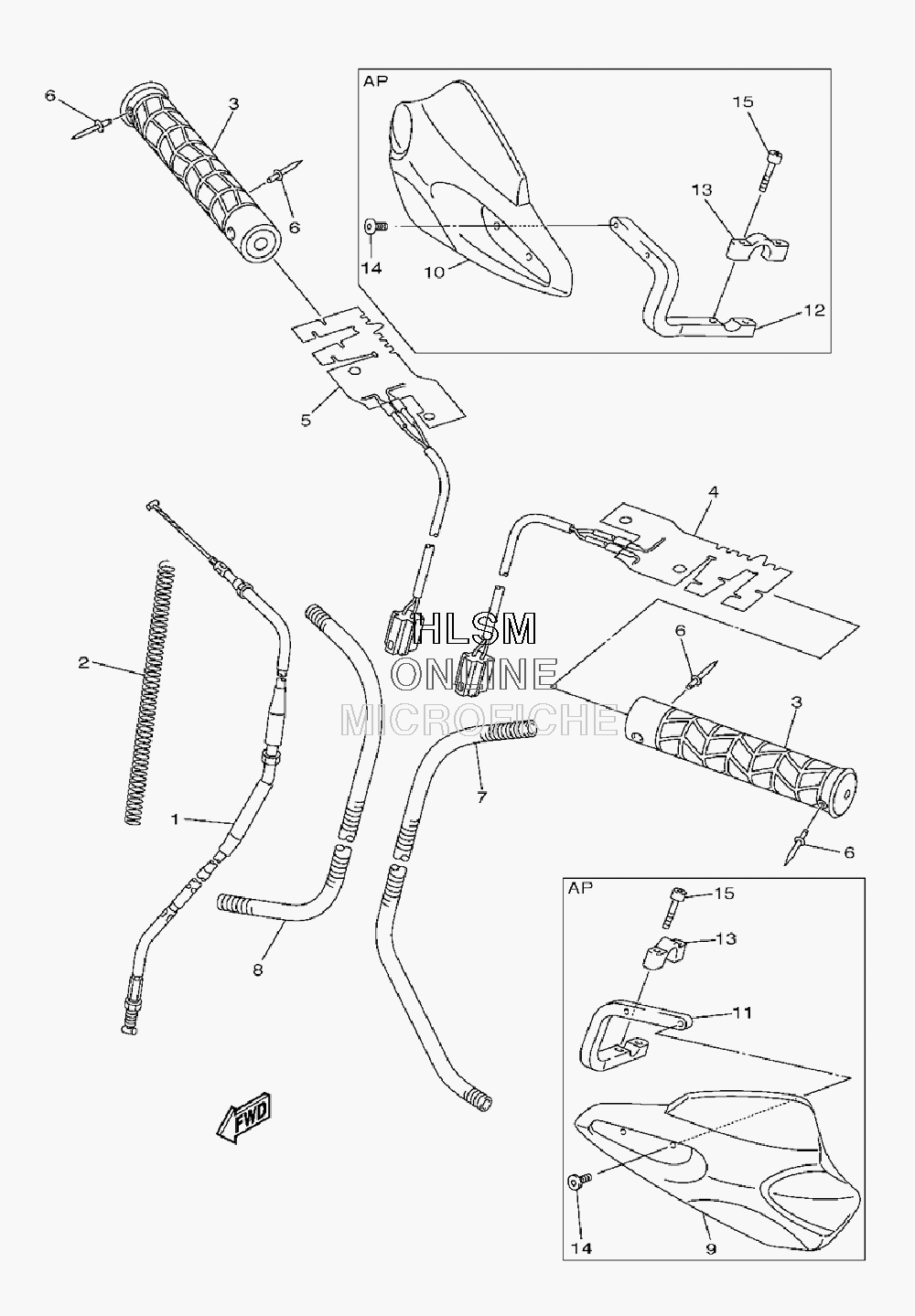

HANDLEBAR - CABLES AND GRIPS для Yamaha PHAZER MTX - 2009 года выпуска`
-
№АртикулНазвание
-
18GC-26311-00-00 CABLE, THROTTLE 1CABLE, THROTTLE 1
-
28GC-26314-00-00 SPRINGSPRING
-
38GF-26241-00-00 GRIPGRIP
-
48HA-2626A-00-00 GRIP, WARMERGRIP, WARMER
-
58HA-2626A-10-00 GRIP, WARMERGRIP, WARMER
-
690267-48014-00 RIVET, BLIND (4.8X15.1 BLACK)RIVET, BLIND (4.8X15.1 BLACK)
-
78FP-82351-00-00 TUBE, CORDTUBE, CORD
-
88GC-82351-00-00 TUBE, CORDTUBE, CORD
-
98GL-26141-00-00 GUARD, BRUSH 1 FOR DPBSEGUARD, BRUSH 1 FOR DPBSE
-
98GL-26141-30-00 GUARD, BRUSH 1 FOR YBGUARD, BRUSH 1 FOR YB
-
108GL-26142-00-00 GUARD, BRUSH 2 FOR DPBSEGUARD, BRUSH 2 FOR DPBSE
-
108GL-26142-30-00 GUARD, BRUSH 2 FOR YBGUARD, BRUSH 2 FOR YB
-
118GL-2612L-01-00 BRACKET 3BRACKET 3
-
128GL-2612M-01-00 BRACKET 4BRACKET 4
-
138GL-2612K-00-00 BRACKET 2BRACKET 2
-
1490109-065F3-00 BOLTBOLT
-
1591312-05030-00 BOLTBOLT
