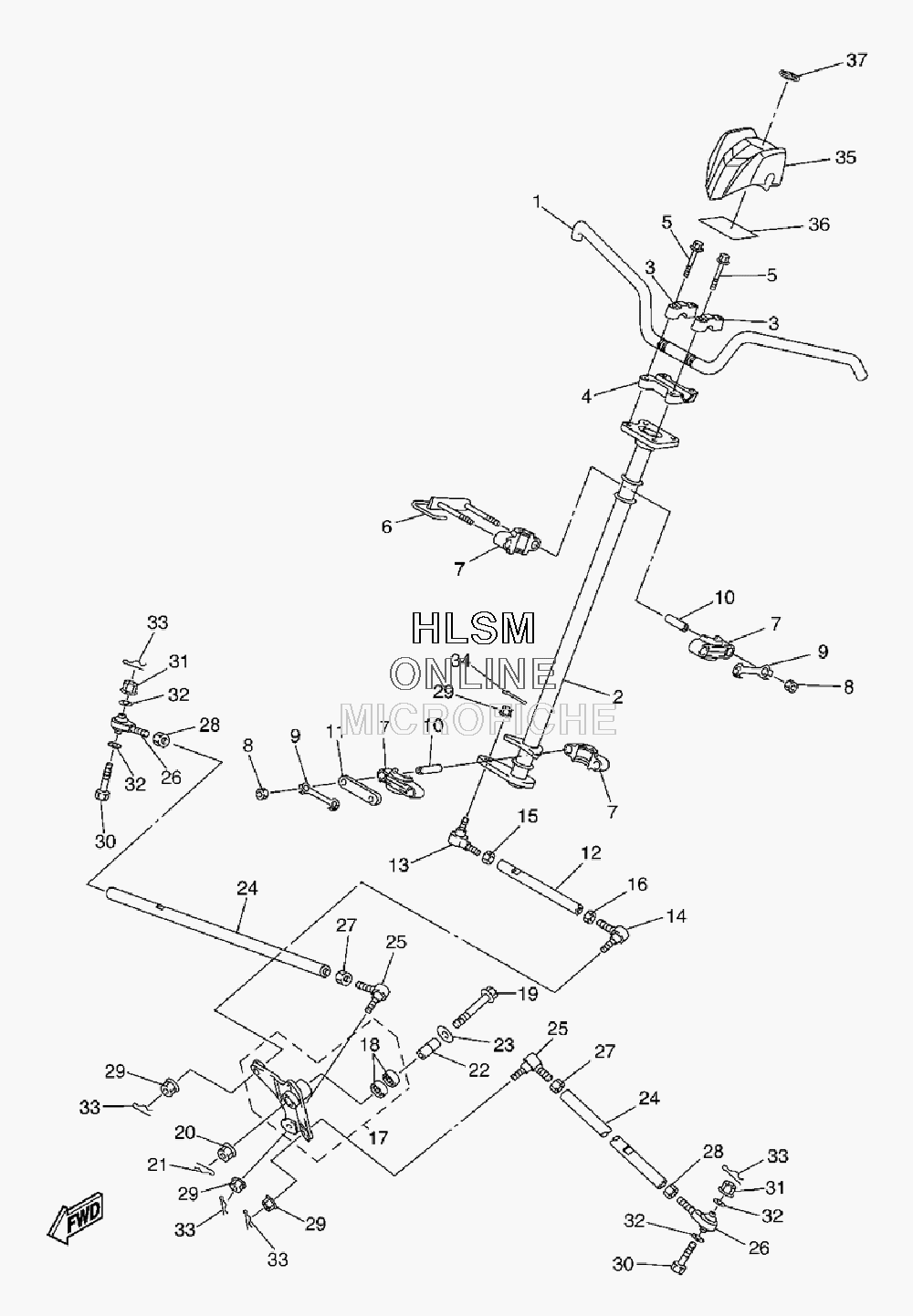

HANDLEBAR ASSY W/ STEERING ASSY для Yamaha FX NYTRO - 2009 года выпуска`
-
№АртикулНазвание
-
18GL-26111-00-00 HANDLEBARHANDLEBAR
-
28GL-23813-00-00 COLUMN, STEERING 2COLUMN, STEERING 2
-
38K1-23814-00-00 HOLDER, HANDLE UPPERHOLDER, HANDLE UPPER
-
48ED-23442-00-00 HOLDER, HANDLE LOWERHOLDER, HANDLE LOWER
-
595812-08055-00 BOLT, FLANGEBOLT, FLANGE
-
68GL-23872-00-00 HOLDER, BEARINGHOLDER, BEARING
-
78FA-23812-00-00 BEARING, STEERINGBEARING, STEERING
-
895312-08600-00 NUTNUT
-
91UY-23894-01-00 WASHER, LOCK 1WASHER, LOCK 1
-
108HF-2412G-00-00 COLLARCOLLAR
-
118FA-23867-00-00 HOLDER 2HOLDER 2
-
128GL-23821-00-00 ROD, STEERING RELAYROD, STEERING RELAY
-
138CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
148CR-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
1595302-10700-00 NUTNUT
-
1690170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
178GL-2389K-00-00 ARM PIVOT ASSYARM PIVOT ASSY
-
1893317-420A7-00 BEARINGBEARING
-
1990105-12070-00 BOLT, FLANGEBOLT, FLANGE
-
2095602-12200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2191402-20025-00 PIN, COTTERPIN, COTTER
-
228GL-2412G-00-00 COLLARCOLLAR
-
2390201-13016-00 WASHER, PLATEWASHER, PLATE
-
248HK-23831-00-00 ROD, TIEROD, TIE
-
258CR-23845-10-00 JOINT, UNIVERSAL 2JOINT, UNIVERSAL 2
-
268GC-23847-00-00 JOINT, UNIVERSAL 3JOINT, UNIVERSAL 3
-
2795302-10700-00 NUTNUT
-
2890170-10186-00 NUT, HEXAGON (L/H THREAD)NUT, HEXAGON (L/H THREAD)
-
2995702-10500-00 NUT, FLANGENUT, FLANGE
-
308GC-23493-00-00 BOLTBOLT
-
3195702-08500-00 NUT, FLANGE (JN5)NUT, FLANGE (JN5)
-
3290201-06018-00 WASHER, PLATEWASHER, PLATE
-
3391402-20012-00 PIN, COTTERPIN, COTTER
-
3491402-20020-00 PIN, COTTERPIN, COTTER
-
358GL-26124-00-00 PROTECTOR, HANDLEBARPROTECTOR, HANDLEBAR
-
368GL-26113-00-00 DAMPERDAMPER
-
378AC-2414B-01-00 EMBLEMEMBLEM
