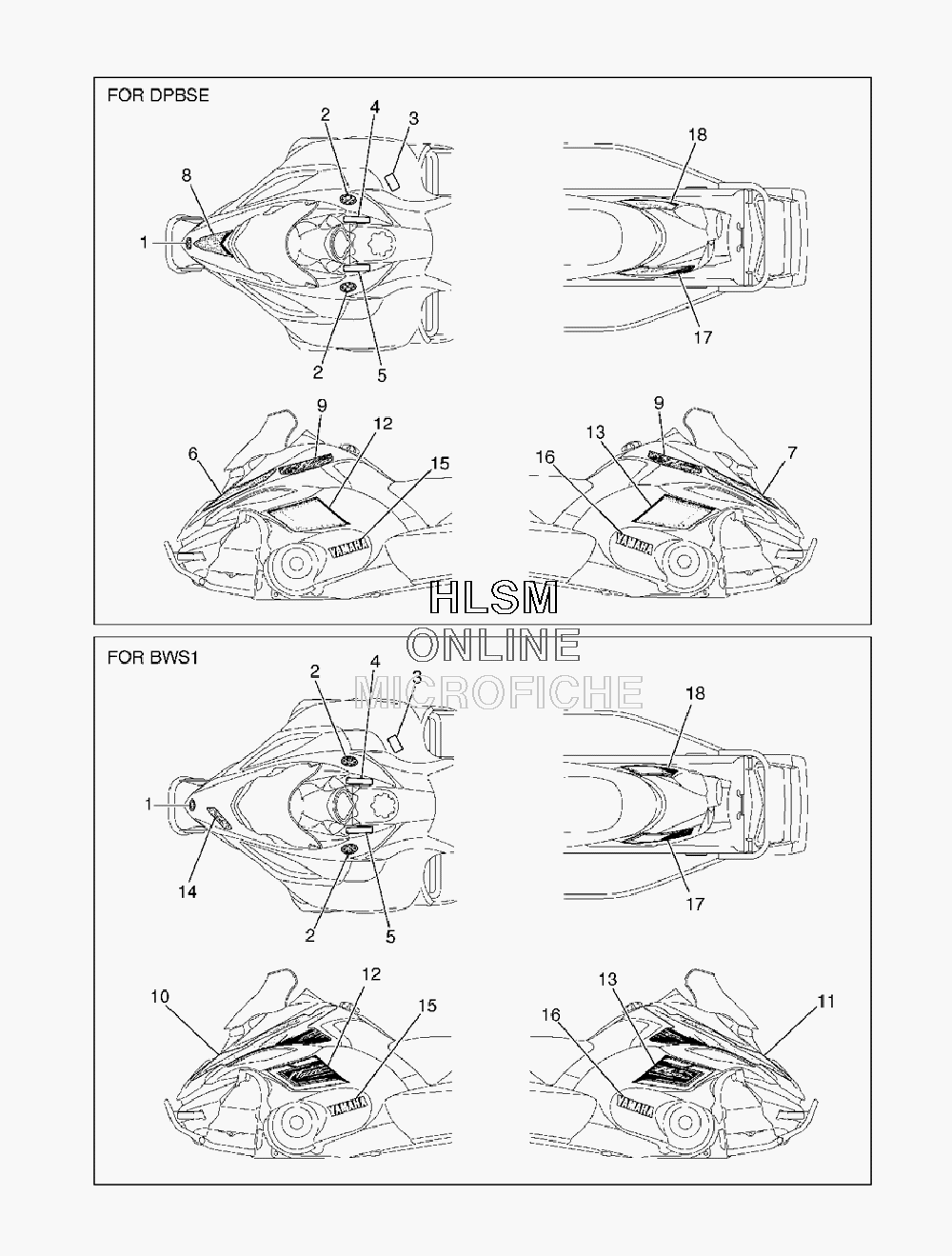

DECALS для Yamaha FX NYTRO - 2009 года выпуска`
-
№АртикулНазвание
-
18GC-2836B-01-00 TUNING FORK MARKTUNING FORK MARK
-
25YU-2411B-01-00 EMBLEMEMBLEM
-
38GL-77763-E1-00 LABEL, WARNING 3LABEL, WARNING 3
-
48ET-2815K-00-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
58ET-2815K-10-00 LABEL, NOTICE WINDSHIELD 1LABEL, NOTICE WINDSHIELD 1
-
68GL-7711F-10-00 GRAPHIC 6 FOR DPBSEGRAPHIC 6 FOR DPBSE
-
78GL-7711G-10-00 GRAPHIC 7 FOR DPBSEGRAPHIC 7 FOR DPBSE
-
88GL-7711C-10-00 GRAPHIC 3 FOR DPBSEGRAPHIC 3 FOR DPBSE
-
98GL-77143-00-00 EMBLEM 3 FOR DPBSEEMBLEM 3 FOR DPBSE
-
108GL-7711A-20-00 GRAPHIC 1 FOR BWS1GRAPHIC 1 FOR BWS1
-
118GL-7711B-20-00 GRAPHIC 2 FOR BWS1GRAPHIC 2 FOR BWS1
-
128GL-7711D-30-00 GRAPHIC 4 FOR DPBSEGRAPHIC 4 FOR DPBSE
-
128GL-7711D-40-00 GRAPHIC 4 FOR BWS1GRAPHIC 4 FOR BWS1
-
138GL-7711E-30-00 GRAPHIC 5 FOR DPBSEGRAPHIC 5 FOR DPBSE
-
138GL-7711E-40-00 GRAPHIC 5 FOR BWS1GRAPHIC 5 FOR BWS1
-
148GL-77142-20-00 EMBLEM 2 FOR FOR BWS1EMBLEM 2 FOR FOR BWS1
-
158GL-2153A-00-00 EMBLEM, YAMAHA FOR DPBSEEMBLEM, YAMAHA FOR DPBSE
-
158GL-2153A-10-00 EMBLEM, YAMAHA FOR BWS1EMBLEM, YAMAHA FOR BWS1
-
168GL-2153A-00-00 EMBLEM, YAMAHA FOR DPBSEEMBLEM, YAMAHA FOR DPBSE
-
168GL-2153A-10-00 EMBLEM, YAMAHA FOR BWS1EMBLEM, YAMAHA FOR BWS1
-
178GL-7755B-10-00 GRAPHIC 1 FOR DPBSEGRAPHIC 1 FOR DPBSE
-
178GL-7755B-20-00 GRAPHIC 1 FOR BWS1GRAPHIC 1 FOR BWS1
-
188GL-7755C-10-00 GRAPHIC 2 FOR DPBSEGRAPHIC 2 FOR DPBSE
-
188GL-7755C-20-00 GRAPHIC 2 FOR BWS1GRAPHIC 2 FOR BWS1
Все узлы модели:
- BELT GUARD W/ TOOL BOX
- BRAKE ASSY
- BUMPER - FRONT AND REAR
- CAMSHAFT W/ CAMSHAFT CHAIN ASSY
- CHAINCASE - SPROCKET AND CHAINS (OPTION)
- CHAINCASE ASSY
- CHAINCASE ASSY 2
- CLUTCH - DRIVE
- CLUTCH - DRIVEN W/ DRIVE AXLE
- CLUTCH - REPAIR KIT (OPTION)
- CLUTCH - TUNE-UP KIT (OPTION)
- CLUTCH - WEIGHTS AND SPRINGS (OPTION)
- CONSOLE ASSY
- COOLING SYSTEM
- CRANKCASE ASSY
- CRANKCASE COVER ASSY
- CRANKSHAFT W/ PISTON ASSY
- CYLINDER W/ HEAD ASSY
- • DECALS
- DRIVE TRAIN ASSEMBLY
- ELECTRICAL - BATTERY ASSY
- ELECTRICAL - COIL, CDI, RECTIFIER, RELAYS AND SWITCHES
- ELECTRICAL - HEADLIGHT ASSY
- ELECTRICAL - INSTRUMENTS
- ELECTRICAL - MAGNETO ASSEMBLY
- ELECTRICAL - TAILLIGHT ASSY
- ENGINE MOUNTING
- EXHAUST SYSTEM
- FUEL TANK ASSY
- HANDLEBAR - CABLES AND GRIPS
- HANDLEBAR - SWITCHES AND LEVERS
- HANDLEBAR ASSY W/ STEERING ASSY
- HANDLEBAR PAD W/ STEERING GATE
- HOOD - WINDSHIELD ASSY
- HOOD ASSY
- INTAKE W/ AIR BOX ASSY - FUEL PUMP
- MODEL INFO - COLOR CHART
- OIL COOLER ASSY W/ OIL FILTER
- OIL PUMP ASSY
- OIL TANK ASSY
- REAR VIEW MIRROR ASSY (OPTION)
- REFLECTOR ASSY
- SEAT ASSY
- STARTER - ELECTRICAL STARTER ASSY
- STARTER - REDUCTION GEAR W/ CLUTCH ASSY
- SUSPENSION - FRONT W/ SKI ASSY
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK
- SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2
- SUSPENSION - SPRING OPTIONS FOR REAR SHOCKS
- THROTTLE BODY ASSY
- TUNNEL ASSEMBLY W/ LOWER NOSEPAN
- VALVE ASSY
- WATER PUMP ASSY
