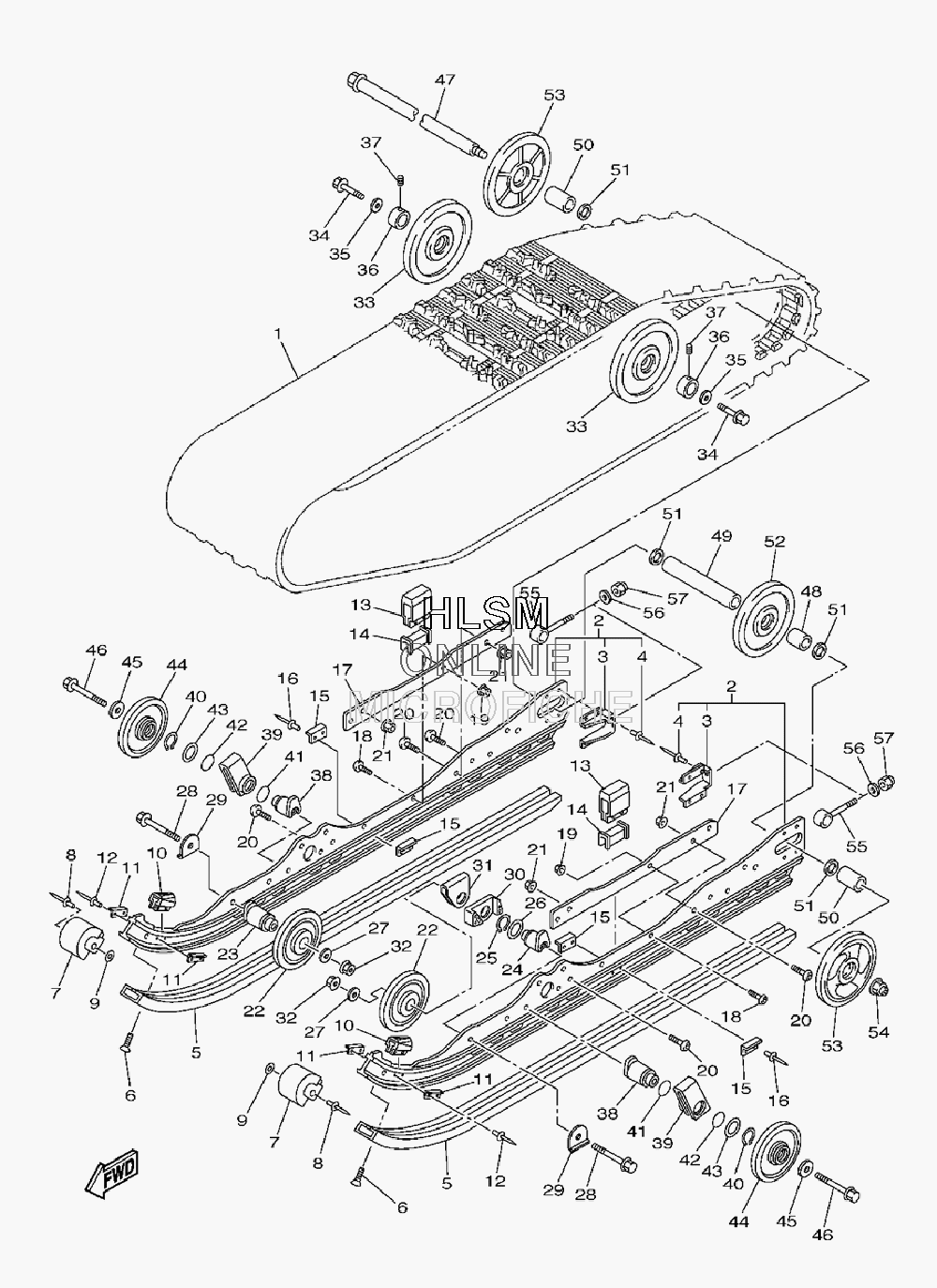

SUSPENSION - IDLER WHEELS W/ TRACK для Yamaha FX NYTRO RTX SE - 2009 года выпуска`
-
№АртикулНазвание
-
18FA-47110-00-00 TRACK ASSY 15X121X1.TRACK ASSY 15X121X1.
-
28HK-W4741-00-00 FRAME, SLIDINGFRAME, SLIDING
-
38DM-4741B-00-00 BRACKETBRACKET
-
48V0-47468-00-00 RIVETRIVET
-
58GL-47421-00-00 RUNNER, SLIDING 1RUNNER, SLIDING 1
-
690151-06010-00 SCREW, COUNTERSUNKSCREW, COUNTERSUNK
-
78GL-47422-00-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890267-48194-00 RIVET, BLIND (4.8X28 SILVER)RIVET, BLIND (4.8X28 SILVER)
-
990201-047R8-00 WASHER, PLATEWASHER, PLATE
-
108ES-47456-00-00 DAMPER 1DAMPER 1
-
118K2-47458-01-00 PLATE, DAMPERPLATE, DAMPER
-
1290267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
138GL-47457-00-00 DAMPER 2DAMPER 2
-
148HK-47573-00-00 SPACERSPACER
-
158AX-47458-00-00 PLATE, DAMPERPLATE, DAMPER
-
1690267-48199-00 RIVET, BLIND (4.8X28.3)RIVET, BLIND (4.8X28.3)
-
178HK-4741C-00-00 FRAME, SLIDING CFRAME, SLIDING C
-
1892012-08025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
1995602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2092012-10025-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
2195602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
238ES-47419-00-00 BRACKET 7BRACKET 7
-
248ES-47419-10-00 BRACKET 7BRACKET 7
-
2599009-35400-00 CIRCLIPCIRCLIP
-
2690201-35013-00 WASHER, PLATEWASHER, PLATE
-
2790201-10038-00 WASHER, PLATEWASHER, PLATE
-
2895812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
2990214-10003-00 WASHER, CLAWWASHER, CLAW
-
308HB-47464-00-00 BRACKET 6BRACKET 6
-
318HB-47446-00-00 HOOK 1HOOK 1
-
3295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
338CR-47550-00-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
3490109-10030-00 BOLTBOLT
-
3590201-10064-00 WASHER, PLATEWASHER, PLATE
-
368FS-47365-00-00 COLLAR 1COLLAR 1
-
3790113-06039-00 BOLT, SETBOLT, SET
-
388ES-47419-10-00 BRACKET 7BRACKET 7
-
398ES-47446-00-00 HOOK 1HOOK 1
-
4099009-35400-00 CIRCLIPCIRCLIP
-
4193210-35537-00 O-RINGO-RING
-
4293210-34504-00 O-RINGO-RING
-
4390201-35013-00 WASHER, PLATEWASHER, PLATE
-
448ET-47310-00-00 SUSPENSION WHEEL ASSYSUSPENSION WHEEL ASSY
-
4590201-10038-00 WASHER, PLATEWASHER, PLATE
-
4695812-10080-00 BOLT, FLANGEBOLT, FLANGE
-
478L8-47520-10-00 REAR AXLE COMP.REAR AXLE COMP.
-
4890387-20015-00 COLLARCOLLAR
-
4990387-20016-00 COLLARCOLLAR
-
5090387-20019-00 COLLARCOLLAR
-
5190201-20022-00 WASHER, PLATEWASHER, PLATE
-
528CR-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
538EK-47550-10-00 GUIDE WHEEL ASSYGUIDE WHEEL ASSY
-
5495602-14200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
558DM-47479-00-00 COLLAR 3COLLAR 3
-
5692902-10600-00 WASHER, PLATEWASHER, PLATE
-
5795702-10300-00 NUT, NYLONNUT, NYLON
