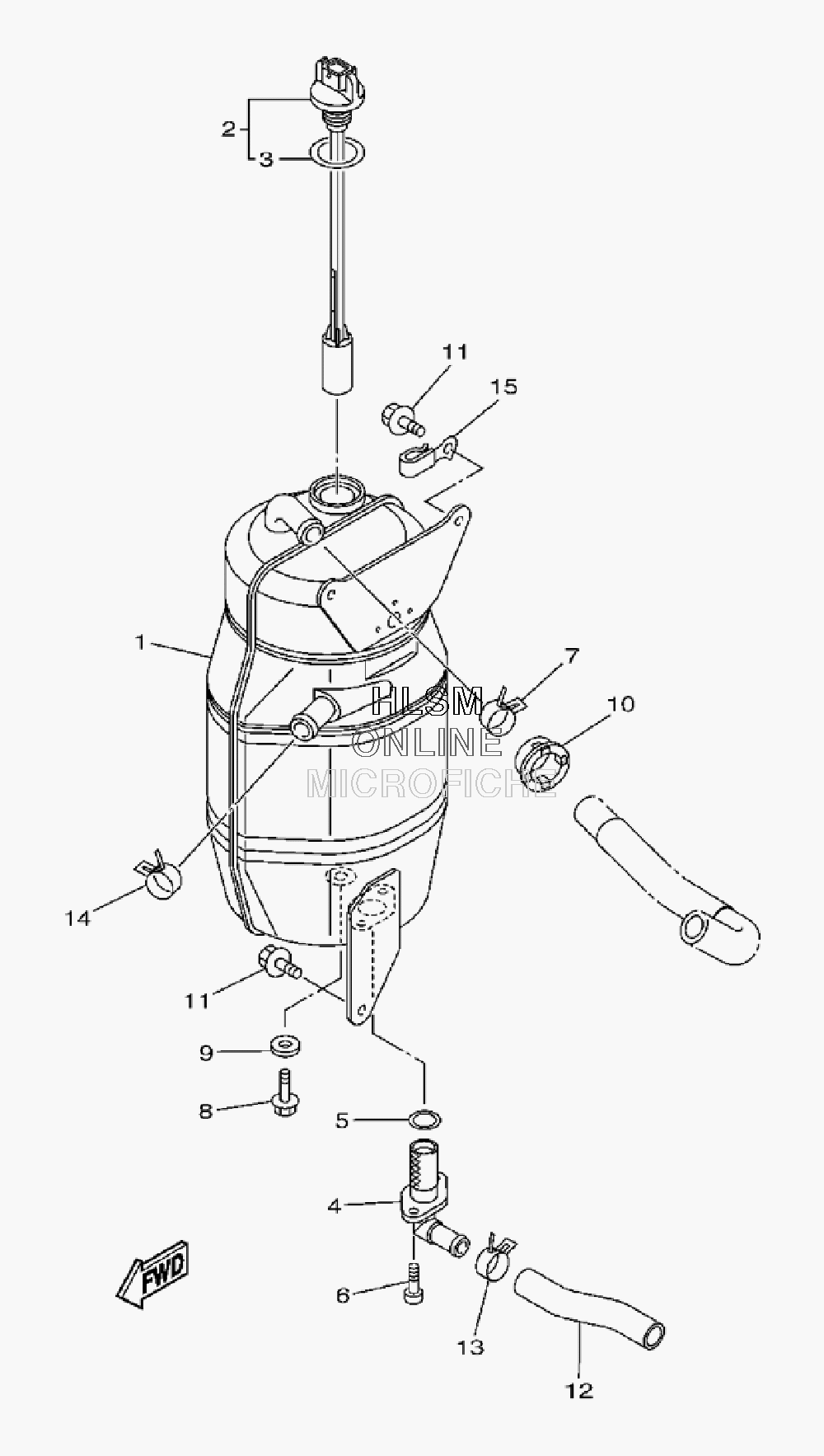

OIL TANK ASSY для Yamaha FX NYTRO RTX SE - 2009 года выпуска`
-
№АртикулНазвание
-
18GL-21751-00-00 TANK, OILTANK, OIL
-
28GL-85720-00-00 OIL LEVEL GAUGE ASSYOIL LEVEL GAUGE ASSY
-
38FP-85075-00-00 O-RINGO-RING
-
48GL-13406-00-00 OIL PIPE COMP. 2OIL PIPE COMP. 2
-
593210-24001-00 O-RINGO-RING
-
691312-06016-00 BOLTBOLT
-
790467-22097-00 CLIPCLIP
-
895802-08012-00 BOLT, FLANGEBOLT, FLANGE
-
990430-08204-00 GASKETGASKET
-
1090480-27001-00 GROMMETGROMMET
-
1195812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
128GL-13465-00-00 HOSE, OIL 2HOSE, OIL 2
-
1390467-22097-00 CLIPCLIP
-
1490467-22097-00 CLIPCLIP
-
1590465-08125-00 CLAMPCLAMP
