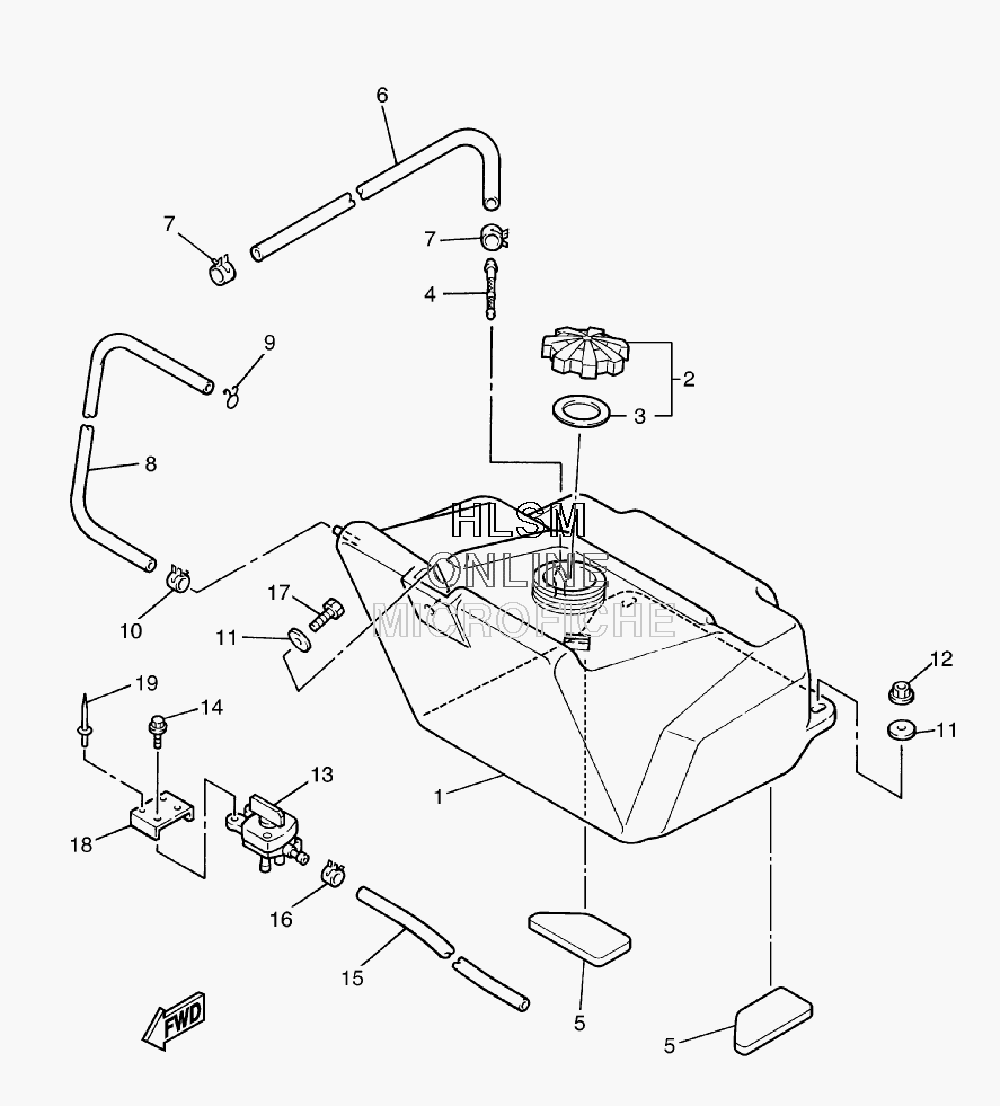

FUEL TANK ASSY 2 для Yamaha BRAVO T - 2009 года выпуска`
-
№АртикулНазвание
-
18BD-24211-10-00 TANK, FUELTANK, FUEL
-
28BD-24610-10-00 CAP ASSYCAP ASSY
-
38BD-24641-10-00 ...GASKET, CAP 1...GASKET, CAP 1
-
422F-24514-01-00 NET, FILTER 1NET, FILTER 1
-
58BD-24141-00-00 PROTECTOR, FUEL TANKPROTECTOR, FUEL TANK
-
68BD-24312-00-00 PIPE 2PIPE 2
-
790467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
890445-09032-00 HOSEHOSE
-
990467-08017-00 CLIP, SCISSORCLIP, SCISSOR
-
1090467-09026-00 CLIP, SCISSORCLIP, SCISSOR
-
1190201-08784-00 WASHER, PLATEWASHER, PLATE
-
1295707-08300-00 NUT, NYLONNUT, NYLON
-
138BD-24500-00-00 FUEL COCK ASSY 1FUEL COCK ASSY 1
-
1495807-06008-00 BOLT, FLANGEBOLT, FLANGE
-
158BD-24313-00-00 PIPE 3PIPE 3
-
1690467-11028-00 CLIP, SCISSORCLIP, SCISSOR
-
1797027-08020-00 BOLT, HEXAGONBOLT, HEXAGON
-
188BD-24544-00-00 BRACKET, FUEL COCKBRACKET, FUEL COCK
-
1990267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
