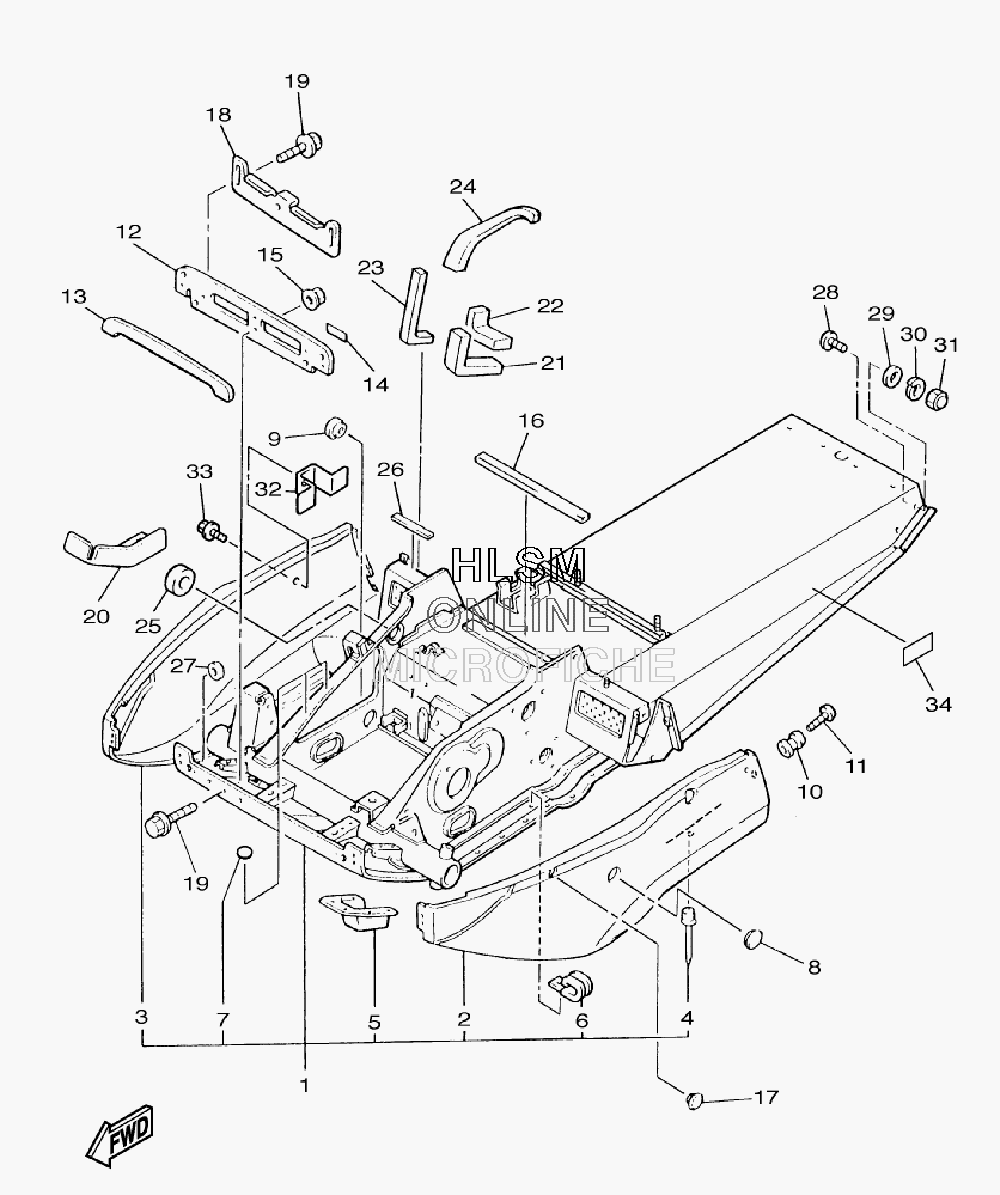

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha BRAVO T - 2009 года выпуска`
-
№АртикулНазвание
-
18BD-21910-00-00 FRAME COMP.FRAME COMP.
-
284A-21982-00-00 ...HOOD 1...HOOD 1
-
384A-21983-00-00 ...HOOD 2...HOOD 2
-
490267-48060-00 ...RIVET, BLIND (4.8X12.9 BLACK)...RIVET, BLIND (4.8X12.9 BLACK)
-
580F-2198G-00-00 ...COVER 2...COVER 2
-
690465-08028-00 ...CLAMP...CLAMP
-
780F-21998-00-00 ...SPACER...SPACER
-
890338-40099-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
990480-40047-00 GROMMETGROMMET
-
108M6-77175-00-00 HOLDER, LATCHHOLDER, LATCH
-
1198907-06030-00 SCREW, BINDSCREW, BIND
-
128V7-2198F-00-00 COVER 1COVER 1
-
138V7-77198-01-00 DAMPER 1DAMPER 1
-
148AC-2815P-E0-00 LABEL, NOTICE 1LABEL, NOTICE 1
-
1595707-06500-00 NUT, FLANGENUT, FLANGE
-
168R4-23891-00-00 SHIELD, NOISE 1SHIELD, NOISE 1
-
1790338-09127-00 PLUG, SPEC'L SHAPEPLUG, SPEC'L SHAPE
-
188V7-2198G-00-00 COVER 2COVER 2
-
1995807-06012-00 BOLT, FLANGEBOLT, FLANGE
-
2080F-2199H-00-00 SHIELD, HEATSHIELD, HEAT
-
218V7-21961-00-00 PATCH 1PATCH 1
-
228V7-21962-00-00 PATCH 2PATCH 2
-
238V7-21963-00-00 PATCH 3PATCH 3
-
2482X-21964-00-00 PATCH 4PATCH 4
-
2580F-21967-00-00 PATCH 7PATCH 7
-
2680F-21988-00-00 PATCH 8PATCH 8
-
2780F-21989-00-00 PATCH 1PATCH 1
-
2898907-08016-00 SCREW, BINDSCREW, BIND
-
2992907-08600-00 WASHER, PLATEWASHER, PLATE
-
3092907-08100-00 WASHER, SPRINGWASHER, SPRING
-
3195307-08800-00 NUTNUT
-
328BD-77338-00-00 STAY, BELTSTAY, BELT
-
3395827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
348BD-2179D-20-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
