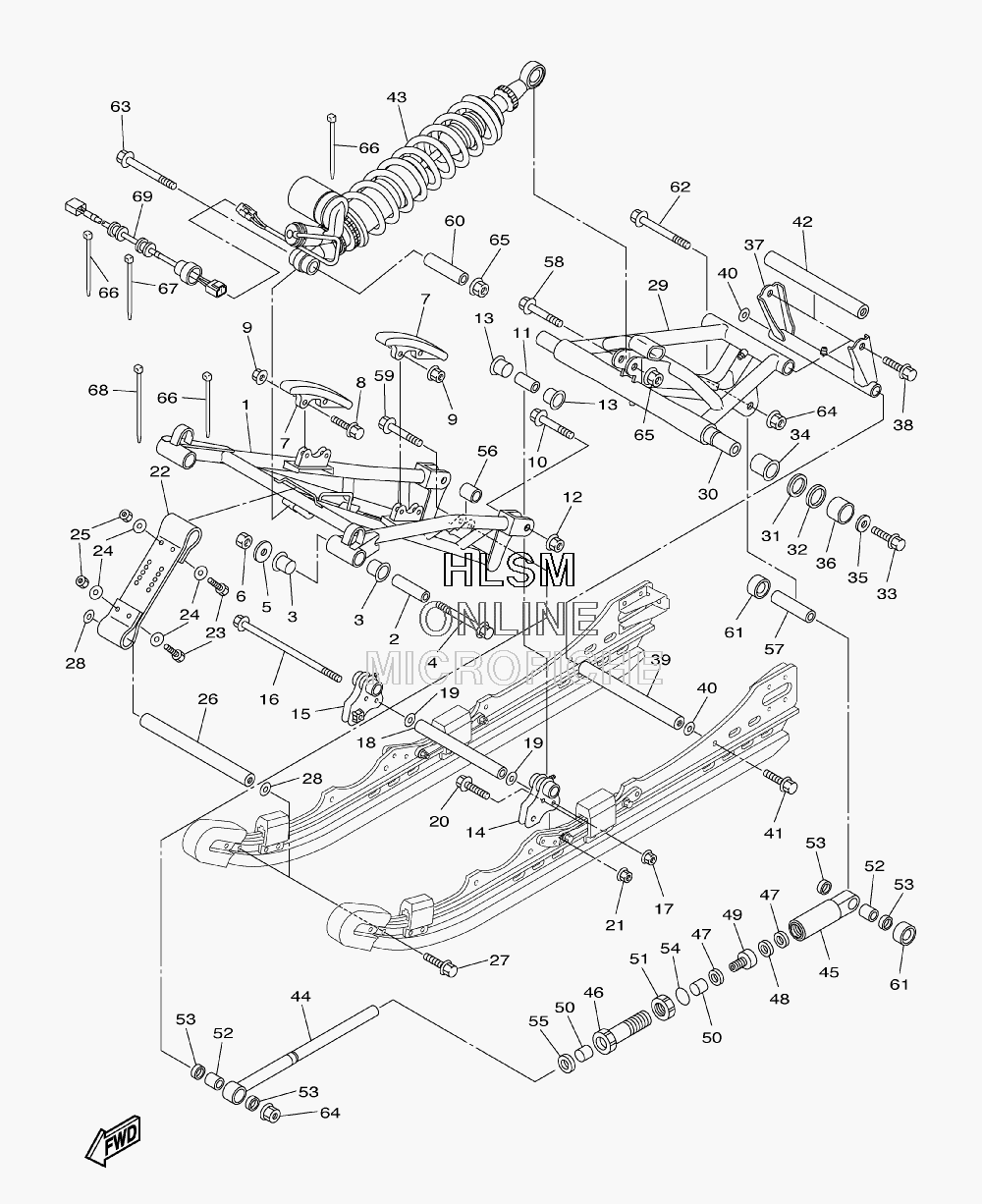

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha APEX GT - 2009 года выпуска`
-
№АртикулНазвание
-
18FT-47331-01-00 ARM, PIVOT 1ARM, PIVOT 1
-
290387-10042-00 COLLARCOLLAR
-
390386-22002-00 BUSHBUSH
-
490105-10150-00 BOLT, FLANGEBOLT, FLANGE
-
590201-104A7-00 WASHER, PLATEWASHER, PLATE
-
690185-10060-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
78F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
890105-06557-00 BOLT, FLANGEBOLT, FLANGE
-
995607-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1090105-10090-00 BOLT, FLANGEBOLT, FLANGE
-
1190387-10033-00 COLLARCOLLAR
-
1295607-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1390386-15002-00 BUSHBUSH
-
148FU-47415-11-00 BRACKET 1BRACKET 1
-
158FU-47418-11-00 BRACKET 4BRACKET 4
-
1690105-08119-00 BOLT, FLANGEBOLT, FLANGE
-
1795607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1890387-08037-00 COLLARCOLLAR
-
1990201-08649-00 WASHER, PLATEWASHER, PLATE
-
2095812-08030-00 BOLT, FLANGEBOLT, FLANGE
-
2195602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
228GM-47495-00-00 STOPPER 1STOPPER 1
-
2397002-06025-00 BOLTBOLT
-
2490201-06081-00 WASHER, PLATEWASHER, PLATE
-
2595702-06300-00 NUT, FLANGENUT, FLANGE
-
268FU-47485-00-00 SHAFT 3SHAFT 3
-
2790105-10433-00 BOLT, FLANGEBOLT, FLANGE
-
2890201-10126-00 WASHER, PLATEWASHER, PLATE
-
298FU-47332-12-00 ARM, PIVOT 2ARM, PIVOT 2
-
308FU-47475-00-00 SHAFT 2SHAFT 2
-
3190201-251G8-00 WASHER, PLATEWASHER, PLATE
-
3290201-250T6-00 WASHER, PLATEWASHER, PLATE
-
3390105-10146-00 BOLT, FLANGEBOLT, FLANGE
-
3490381-28108-00 BUSH, SOLIDBUSH, SOLID
-
3590201-103U4-00 WASHER, PLATEWASHER, PLATE
-
3690387-25005-00 COLLARCOLLAR
-
378FU-47417-11-00 BRACKET 3BRACKET 3
