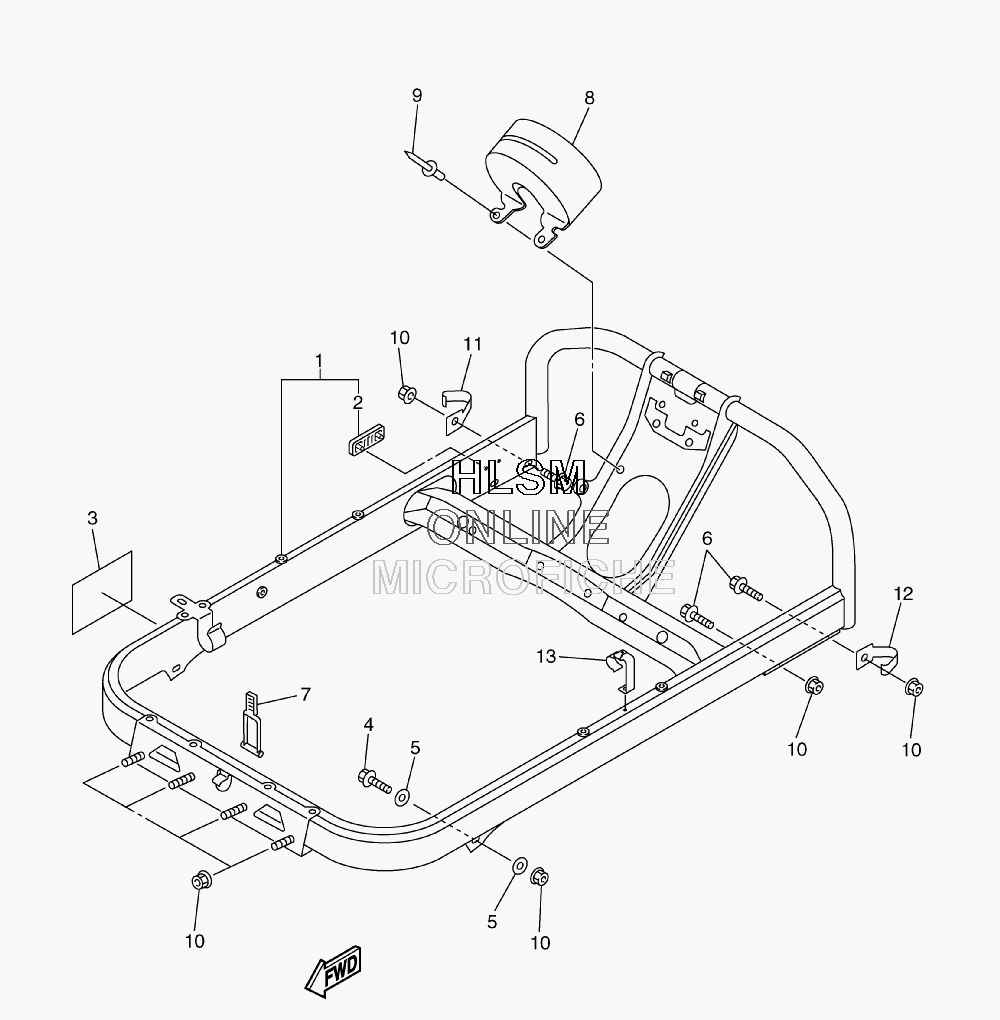

HANDLEBAR PAD W/ STEERING GATE для Yamaha APEX GT - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-23870-01-00 STEERING GATE COMP.STEERING GATE COMP.
-
28FA-83614-00-00 ...BRACKET...BRACKET
-
38FA-2389C-E0-00 LABEL, CAUTIONLABEL, CAUTION
-
490105-081A7-00 BOLT, FLANGEBOLT, FLANGE
-
590201-08326-00 WASHER, PLATEWASHER, PLATE
-
695822-08030-00 BOLT, FLANGEBOLT, FLANGE
-
78FA-2389E-00-00 LATCHLATCH
-
88FP-2384G-00-00 CASE 1CASE 1
-
990269-06083-00 RIVETRIVET
-
1095602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1190462-10022-00 CLAMPCLAMP
-
1290462-10035-00 CLAMPCLAMP
-
138FP-23466-00-00 CLAMPCLAMP
