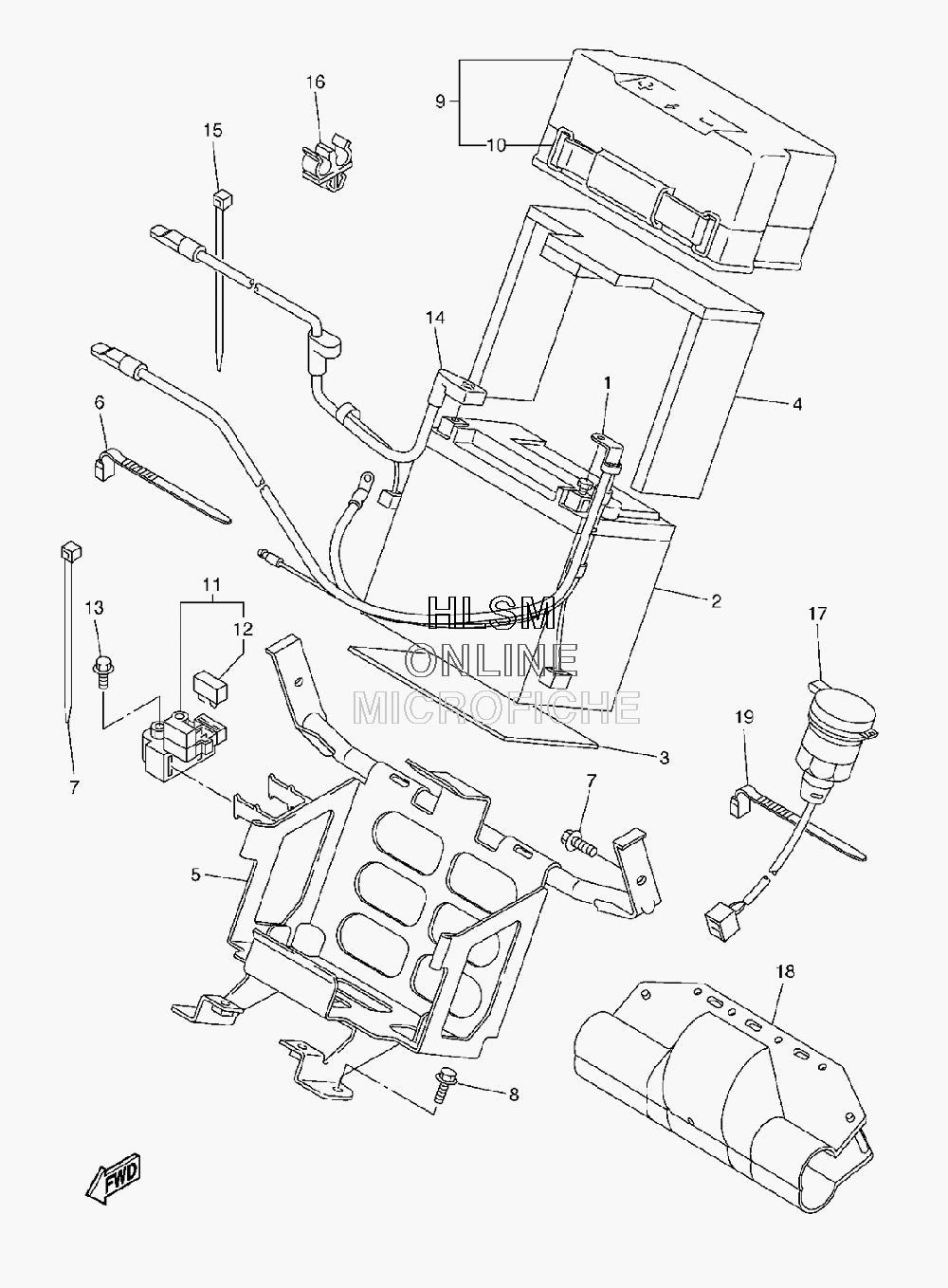

ELECTRICAL - BATTERY ASSY для Yamaha APEX ER - 2009 года выпуска`
-
№АртикулНазвание
-
18FP-82116-00-00 WIRE, MINUS LEADWIRE, MINUS LEAD
-
2NGK-YTX14-BS-00 BATTERY ASSY (YUASA YTX14-BS)BATTERY ASSY (YUASA YTX14-BS)
-
38FA-82122-00-00 SEAT, BATTERYSEAT, BATTERY
-
48FU-82136-00-00 PLATE, BATTERY FITTINGPLATE, BATTERY FITTING
-
58FP-2199G-00-00 BRACKET, BATTERYBRACKET, BATTERY
-
690464-15195-00 CLAMPCLAMP
-
790464-13073-00 CLAMPCLAMP
-
895822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
98FU-82129-00-00 COVER, BATTERYCOVER, BATTERY
-
108DM-82131-10-00 BAND, BATTERYBAND, BATTERY
-
115LW-81940-02-00 STARTER RELAY ASSYSTARTER RELAY ASSY
-
1242X-82151-00-00 FUSE (10A-BL)FUSE (10A-BL)
-
1395022-06008-00 BOLT, FLANGEBOLT, FLANGE
-
148FP-82115-00-00 WIRE, PLUS LEADWIRE, PLUS LEAD
-
1590464-13073-00 CLAMPCLAMP
-
1690464-08126-00 CLAMPCLAMP
-
178FP-8254B-00-00 TERMINAL COMP.TERMINAL COMP.
-
188FP-8252U-00-00 COVERCOVER
-
1990464-15195-00 CLAMPCLAMP
