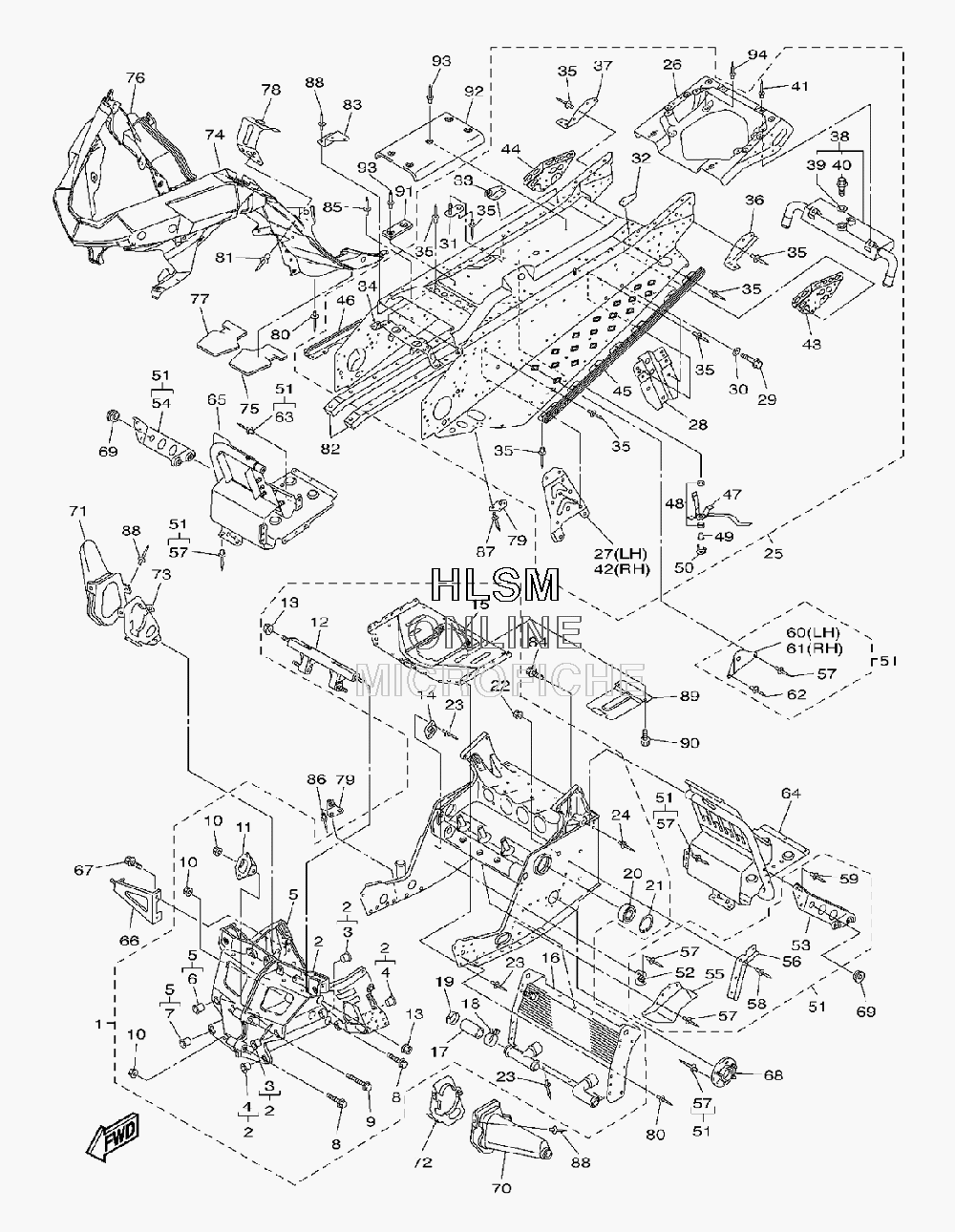

TUNNEL EXTENSION ASSEMBLY для Yamaha APEX ER - 2009 года выпуска
-
№АртикулНазвание
-
18FR-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28FA-W2197-11-00 BULKHEADBULKHEAD
-
390381-15001-00 BUSH, SOLIDBUSH, SOLID
-
490381-16001-00 BUSH, SOLIDBUSH, SOLID
-
58FA-W2198-11-00 BULKHEAD 2BULKHEAD 2
-
690381-15001-00 BUSH, SOLIDBUSH, SOLID
-
790381-16001-00 BUSH, SOLIDBUSH, SOLID
-
895827-08060-00 BOLT, FLANGEBOLT, FLANGE
-
995827-08065-00 BOLT, FLANGEBOLT, FLANGE
-
1095607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
118FA-2128A-01-00 BRACKET, REGULATORBRACKET, REGULATOR
-
128FG-21947-00-00 BRACKET, STEERING 1BRACKET, STEERING 1
-
1395607-10200-00 NUT, U FLANGENUT, U FLANGE
-
148CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
158FR-2193A-00-00 PROTECTORPROTECTOR
-
168FA-12440-00-00 HEAT EXCHANGER ASSYHEAT EXCHANGER ASSY
-
178FA-12551-00-00 HOSE 7HOSE 7
-
1890467-28046-00 CLIPCLIP
-
1990450-35001-00 HOSE CLAMP ASSYHOSE CLAMP ASSY
-
2093306-20650-00 BEARINGBEARING
-
2199009-62500-00 CIRCLIPCIRCLIP
-
2295607-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
2390267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
2490267-48176-00 RIVET, BLIND (4.8X17 YELLOW)RIVET, BLIND (4.8X17 YELLOW)
-
258GU-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
268FA-W2199-10-00 REINEFORCEMENT, FRAME REAR 1REINEFORCEMENT, FRAME REAR 1
-
278GT-21943-00-00 BRACKET, MAIN TRACK 1BRACKET, MAIN TRACK 1
-
288ES-21944-00-00 BRACKET, RR. TRACK SUSPENSIONBRACKET, RR. TRACK SUSPENSION
-
2995814-10022-00 BOLT, FLANGEBOLT, FLANGE
-
3090201-10064-00 WASHER, PLATEWASHER, PLATE
-
318CR-2194N-00-00 BRACKET, FUEL TANK 1BRACKET, FUEL TANK 1
-
328FA-2194X-00-00 BRACKET 1BRACKET 1
-
338FA-2195X-00-00 BRACKET 2BRACKET 2
-
348FA-2194H-01-00 PROTECTOR, MUFFLERPROTECTOR, MUFFLER
-
3590267-47195-00 RIVET, BLIND (4.7X16.4 YELLOWRIVET, BLIND (4.7X16.4 YELLOW
-
368FA-21963-00-00 PATCH 3PATCH 3
-
378FA-21964-00-00 PATCH 4PATCH 4
-
388ET-1241A-02-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
3990210-06006-00 WASHER, SEALWASHER, SEAL
-
4095812-06016-00 BOLT, FLANGEBOLT, FLANGE
-
4190267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
428GT-21953-00-00 BRACKET, MAIN TRACK 2BRACKET, MAIN TRACK 2
-
438FP-21928-00-00 REINF., SUB FRAME 1REINF., SUB FRAME 1
-
448FP-21938-00-00 REINF., SUB FRAME 2REINF., SUB FRAME 2
-
458FU-21926-00-00 REINFORCEMENT, FOOTREST 1REINFORCEMENT, FOOTREST 1
-
468FU-21936-00-00 REINFORCEMENT, FOOTREST 2REINFORCEMENT, FOOTREST 2
-
478FR-2194L-00-00 STAY, MUFFERSTAY, MUFFER
-
488FA-14737-00-00 DAMPER, MUFFLERDAMPER, MUFFLER
-
4990387-08084-00 COLLARCOLLAR
-
508FR-2194J-00-00 STAY, MUFFLERSTAY, MUFFLER
-
518GU-W2195-00-00 FRAME CONNECTION KITFRAME CONNECTION KIT
-
528CR-21939-01-00 BRACKET, CHAIN HOUSINGBRACKET, CHAIN HOUSING
-
538FP-2196M-00-00 BRACKET, 5BRACKET, 5
-
548FP-2197M-00-00 BRACKET, 6BRACKET, 6
-
558FP-2198G-00-00 COVER 2COVER 2
-
568FA-21999-00-00 CLAMP, WIRE HARNESSCLAMP, WIRE HARNESS
-
5790267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
5890267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
5990267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
-
608GT-21966-10-00 PATCH 6PATCH 6
-
618GT-21967-10-00 PATCH 7PATCH 7
-
6290267-47197-00 RIVET, BLIND (4.7X19.5 SILVER)RIVET, BLIND (4.7X19.5 SILVER)
-
6390267-47186-00 RIVET, BLIND (4.7X16.4 BLACK)RIVET, BLIND (4.7X16.4 BLACK)
-
648FP-21960-01-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
658FP-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
668ES-2193E-00-00 BRACKET, OIL TANK 1BRACKET, OIL TANK 1
-
6795822-08014-00 BOLT, FLANGEBOLT, FLANGE
-
688EK-21920-01-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
6990480-13567-00 GROMMETGROMMET
-
708FU-2198F-00-00 COVER 1COVER 1
-
718FU-2198J-00-00 COVER 3COVER 3
-
728FU-2195E-01-00 PLATE, STEERING BRACKET 1PLATE, STEERING BRACKET 1
-
738FU-2195F-01-00 PLATE, STEERING BRACKET 2PLATE, STEERING BRACKET 2
-
748FP-2196A-01-00 FRAME UNDER 1FRAME UNDER 1
-
758FP-77374-00-00 DAMPER 2DAMPER 2
-
768FP-2196E-01-00 FRAME, UNDER 2FRAME, UNDER 2
-
778FP-77375-00-00 DAMPER 3DAMPER 3
-
788FP-21972-00-00 BRACKET, GUARD FITTINGBRACKET, GUARD FITTING
-
798FA-2196F-00-00 BRACKET 3BRACKET 3
-
8090267-48018-00 RIVET, BLIND (4.8X18.6 BLACK)RIVET, BLIND (4.8X18.6 BLACK)
-
8190267-47200-00 RIVET, BLIND (4.7X19.5 BLACK)RIVET, BLIND (4.7X19.5 BLACK)
-
828FA-21978-01-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
838FA-2197N-01-00 BRACKET 7BRACKET 7
-
8495822-08020-00 BOLT, FLANGEBOLT, FLANGE
-
8590267-48169-00 RIVET, BLIND (4.8X14.1 BLACK)RIVET, BLIND (4.8X14.1 BLACK)
-
8690267-48083-00 RIVET, BLIND (4.8X15.2 SILVER)RIVET, BLIND (4.8X15.2 SILVER)
-
8790267-48095-00 RIVET, BLIND (4.8X12.6 SILVER)RIVET, BLIND (4.8X12.6 SILVER)
-
8890267-47195-00 RIVET, BLIND (4.7X16.4 YELLOW)RIVET, BLIND (4.7X16.4 YELLOW)
-
898FR-2197E-00-00 PROTECTOR, FRAME FRPROTECTOR, FRAME FR
-
9092012-06012-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
918FA-21998-00-00 SPACERSPACER
-
928FG-23892-00-00 SHIELD, HEATSHIELD, HEAT
-
9390267-48059-00 RIVET, BLIND (4.8X12.3)RIVET, BLIND (4.8X12.3)
-
9490267-48177-00 RIVET, BLIND (4.8X14 YELLOW)RIVET, BLIND (4.8X14 YELLOW)
