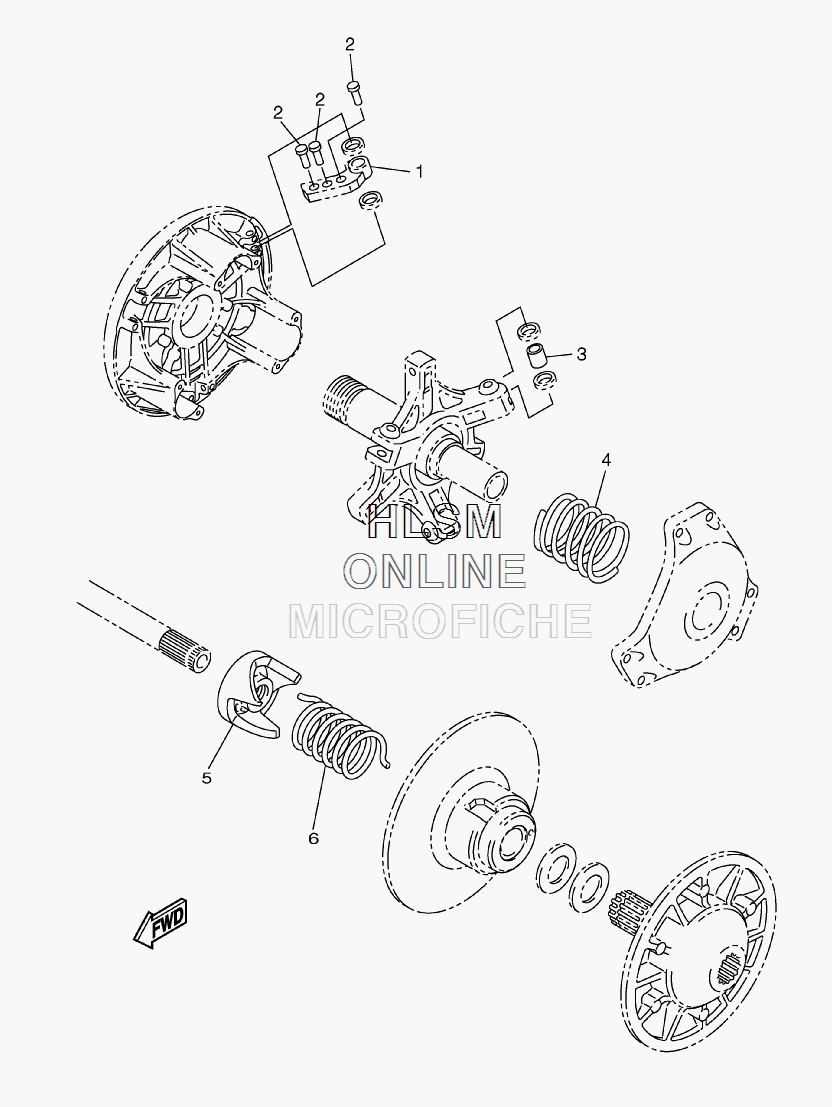

CLUTCH - WEIGHTS AND SPRINGS (OPTION) для Yamaha PHAZER - 2008 года выпуска`
-
№АртикулНазвание
-
18FA-17605-10-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18ES-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18BU-17605-20-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FP-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FN-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18FS-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18GC-17605-00-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
18DN-17605-30-00 WEIGHT COMP (OPT)WEIGHT COMP (OPT)
-
290261-06019-00 RIVET, COUNTERSUNK (ST13.3MM) (OPT)RIVET, COUNTERSUNK (ST13.3MM) (OPT)
-
290261-06015-00 RIVET, COUNTERSUNK (ST10.3MM) (OPT)RIVET, COUNTERSUNK (ST10.3MM) (OPT)
-
290261-06028-00 RIVET, COUNTERSUNK (AL10.3MM) (OPT)RIVET, COUNTERSUNK (AL10.3MM) (OPT)
-
290261-06033-00 RIVET, COUNTERSUNK (ST17.2MM) (OPT)RIVET, COUNTERSUNK (ST17.2MM) (OPT)
-
290261-06034-00 RIVET, COUNTERSUNK (ST13.9MM) (OPT)RIVET, COUNTERSUNK (ST13.9MM) (OPT)
-
38FG-17624-20-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-00-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-10-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-30-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
38FG-17624-40-00 ROLLER, COMP (OPT)ROLLER, COMP (OPT)
-
490501-553G6-00 SPRING, COMPRESSION (OPT) (WH-Y-WH)SPRING, COMPRESSION (OPT) (WH-Y-WH)
-
490501-527G1-00 SPRING, COMPRESSION (OPT) (R-BL-R)SPRING, COMPRESSION (OPT) (R-BL-R)
-
490501-556G7-00 SPRING, COMPRESSION (OPT) (Y-BL-Y)SPRING, COMPRESSION (OPT) (Y-BL-Y)
-
490501-606G9-00 SPRING, COMPRESSION (OPT) (P-BL-P)SPRING, COMPRESSION (OPT) (P-BL-P)
-
490501-507G2-00 SPRING, COMPRESSION (OPT) (GO-BL-GO)SPRING, COMPRESSION (OPT) (GO-BL-GO)
-
490501-556G5-00 SPRING, COMPRESSION (OPT) (WH-BL-WH)SPRING, COMPRESSION (OPT) (WH-BL-WH)
-
490501-607G0-00 SPRING, COMPRESSION (OPT) (GR-BL-GR)SPRING, COMPRESSION (OPT) (GR-BL-GR)
-
490501-556G6-00 SPRING, COMPRESSION (OPT) (BLUE)SPRING, COMPRESSION (OPT) (BLUE)
-
490501-604G0-00 SPRING, COMPRESSION (OPT) (P-Y-P)SPRING, COMPRESSION (OPT) (P-Y-P)
-
490501-524G5-00 SPRING, COMPRESSION (OPT) (GO-Y-GO)SPRING, COMPRESSION (OPT) (GO-Y-GO)
-
490501-524G4-00 SPRING, COMPRESSION (OPT) (R-Y-R)SPRING, COMPRESSION (OPT) (R-Y-R)
-
490501-553G0-00 SPRING, COMPRESSION (OPT) (BL-Y-BL)SPRING, COMPRESSION (OPT) (BL-Y-BL)
-
490501-605G7-00 SPRING, COMPRESSION (OPT) (GR-Y-GR)SPRING, COMPRESSION (OPT) (GR-Y-GR)
-
490501-521J6-00 SPRING, COMPRESSION (OPT) (GO-P-GO)SPRING, COMPRESSION (OPT) (GO-P-GO)
-
490501-550J8-00 SPRING, COMPRESSION (OPT) (WH-P-WH)SPRING, COMPRESSION (OPT) (WH-P-WH)
-
490501-582J1-00 SPRING, COMPRESSION (OPT) (Y-P-Y)SPRING, COMPRESSION (OPT) (Y-P-Y)
-
490501-602J0-00 SPRING, COMPRESSION (OPT) (PINK)SPRING, COMPRESSION (OPT) (PINK)
-
490501-481J1-00 SPRING, COMPRESSION (OPT) (SL-BL-SL)SPRING, COMPRESSION (OPT) (SL-BL-SL)
-
490501-581J7-00 SPRING, COMPRESSION (OPT) (YELLOW)SPRING, COMPRESSION (OPT) (YELLOW)
-
490501-586J0-00 SPRING, COMPRESSION (OPT) (Y-SL-Y)SPRING, COMPRESSION (OPT) (Y-SL-Y)
-
490501-525J8-00 SPRING, COMPRESSION (OPT) (BL-P-BL)SPRING, COMPRESSION (OPT) (BL-P-BL)
-
490501-585J3-00 SPRING, COMPRESSION (OPT) (GR-P-GR)SPRING, COMPRESSION (OPT) (GR-P-GR)
-
490501-605J5-00 SPRING, COMPRESSION (OPT) (OR-P-OR)SPRING, COMPRESSION (OPT) (OR-P-OR)
-
490501-555J9-00 SPRING, COMPRESSION (OPT) (WH-SL-WH)SPRING, COMPRESSION (OPT) (WH-SL-WH)
-
490501-526J9-00 SPRING, COMPRESSION (OPT) (R-P-R)SPRING, COMPRESSION (OPT) (R-P-R)
-
490501-487G8-00 SPRING, COMPRESSION (OPT) (GOLD)SPRING, COMPRESSION (OPT) (GOLD)
-
490501-507G7-00 SPRING, COMPRESSION (OPT) (R-GR-R)SPRING, COMPRESSION (OPT) (R-GR-R)
-
490501-526G4-00 SPRING, COMPRESSION (OPT) (BL-GO-BL)SPRING, COMPRESSION (OPT) (BL-GO-BL)
-
490501-557G5-00 SPRING, COMPRESSION (OPT) (Y-GO-Y)SPRING, COMPRESSION (OPT) (Y-GO-Y)
-
490501-557G6-00 SPRING, COMPRESSION (OPT) (WH-GO-WH)SPRING, COMPRESSION (OPT) (WH-GO-WH)
-
490501-607G4-00 SPRING, COMPRESSION (OPT) (GR-GO-GR)SPRING, COMPRESSION (OPT) (GR-GO-GR)
-
490501-607G3-00 SPRING, COMPRESSION (OPT) (P-GO-P)SPRING, COMPRESSION (OPT) (P-GO-P)
-
588R-17684-03-00 SEAT, SECONDARY SPRING (OPT)SEAT, SECONDARY SPRING (OPT)
-
58AT-17684-01-00 SEAT, SECONDARY SPRING (OPT)SEAT, SECONDARY SPRING (OPT)
-
589N-17684-01-00 SEAT, SECONDARY SPRING (OPT)SEAT, SECONDARY SPRING (OPT)
-
690508-50571-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
690508-50746-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
690508-55007-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
690508-55012-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
690508-58007-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
-
690508-60015-00 SPRING, TORSION (OPT)SPRING, TORSION (OPT)
