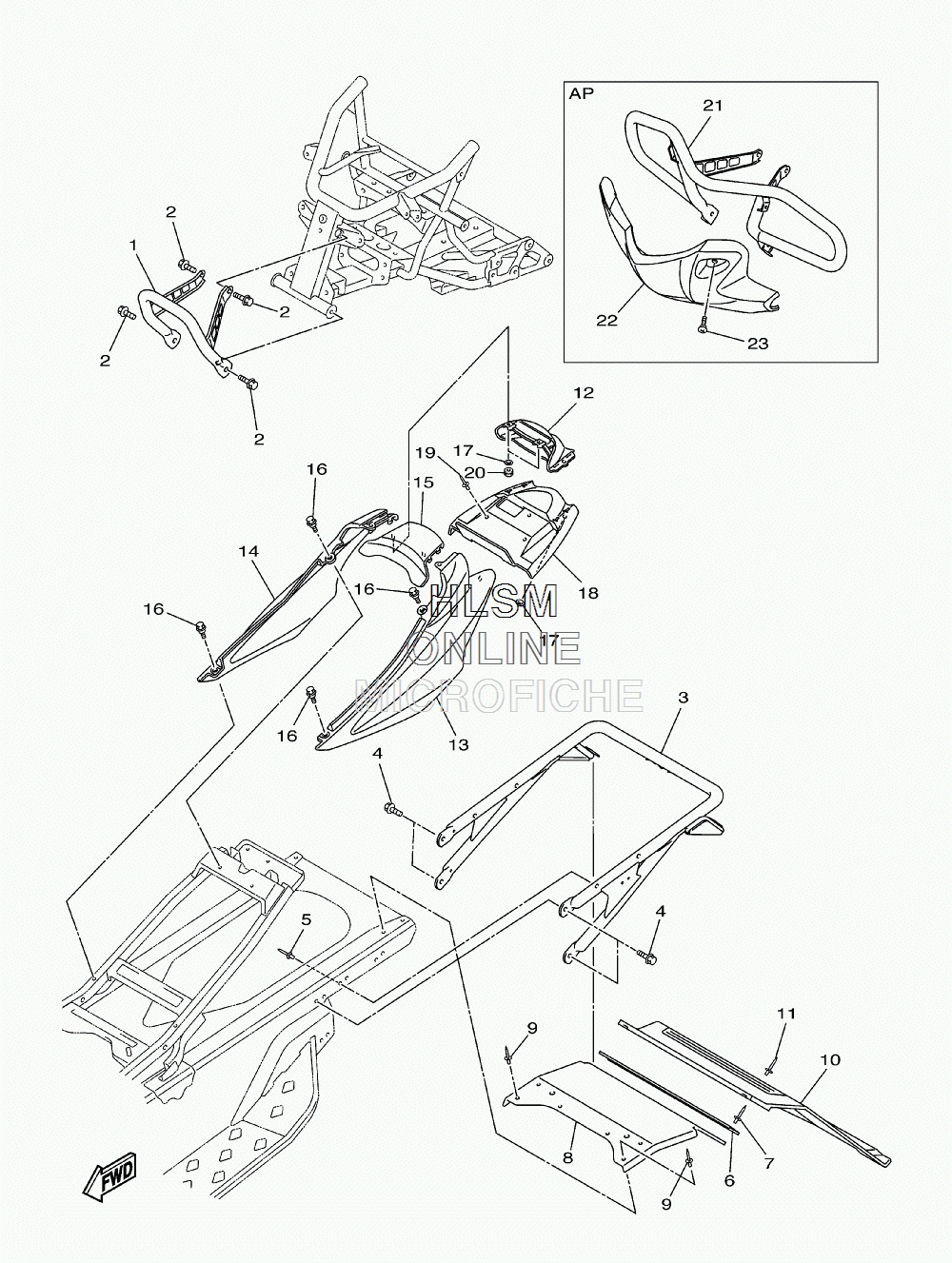

BUMPER - FRONT AND REAR для Yamaha PHAZER - 2008 года выпуска`
-
№АртикулНазвание
-
18GC-77511-00-00 BUMPER, FRONT 1BUMPER, FRONT 1
-
295822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
38GC-77541-01-00 BUMPER, REAR 1BUMPER, REAR 1
-
495822-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590267-47195-00 RIVET, BLINDRIVET, BLIND
-
68GC-77596-00-00 STOPPER, FLAPSTOPPER, FLAP
-
790267-47195-00 RIVET, BLINDRIVET, BLIND
-
88GC-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
990267-47195-00 RIVET, BLINDRIVET, BLIND
-
108GC-K7595-00-00 FLAPFLAP
-
1190267-47187-00 RIVET, BLINDRIVET, BLIND
-
128GC-84516-01-00 COVER, TAILLIGHTCOVER, TAILLIGHT
-
138GC-77551-00-00 PROTECTOR 1 FOR DPBSEPROTECTOR 1 FOR DPBSE
-
138GC-77551-30-00 PROTECTOR 1 FOR BWS1PROTECTOR 1 FOR BWS1
-
138GC-77551-40-00 PROTECTOR 1 FOR YBPROTECTOR 1 FOR YB
-
148GC-77552-00-00 PROTECTOR 2 FOR DPBSEPROTECTOR 2 FOR DPBSE
-
148GC-77552-30-00 PROTECTOR 2 FOR BWS1PROTECTOR 2 FOR BWS1
-
148GC-77552-40-00 PROTECTOR 2 FOR YBPROTECTOR 2 FOR YB
-
158GC-77553-00-00 PROTECTOR 3 FOR DPBSEPROTECTOR 3 FOR DPBSE
-
158GC-77553-40-00 PROTECTOR 3 FOR YBPROTECTOR 3 FOR YB
-
158GC-77553-30-00 PROTECTOR 3 FOR BWS1PROTECTOR 3 FOR BWS1
-
1690109-06220-00 BOLTBOLT
-
1790183-06011-00 NUT, SPRINGNUT, SPRING
-
188GC-2117E-00-00 BRACKET, TAILLIGHTBRACKET, TAILLIGHT
-
1990267-47187-00 RIVET, BLINDRIVET, BLIND
-
2090480-11454-00 GROMMETGROMMET
-
218GR-77511-00-00 BUMPER, FRONT 1 (OPT)BUMPER, FRONT 1 (OPT)
-
228GR-77555-00-00 PROTECTOR 5 (OPT)PROTECTOR 5 (OPT)
-
2390149-06263-00 SCREW, SPEC'L SHAPE (OPT)SCREW, SPEC'L SHAPE (OPT)
