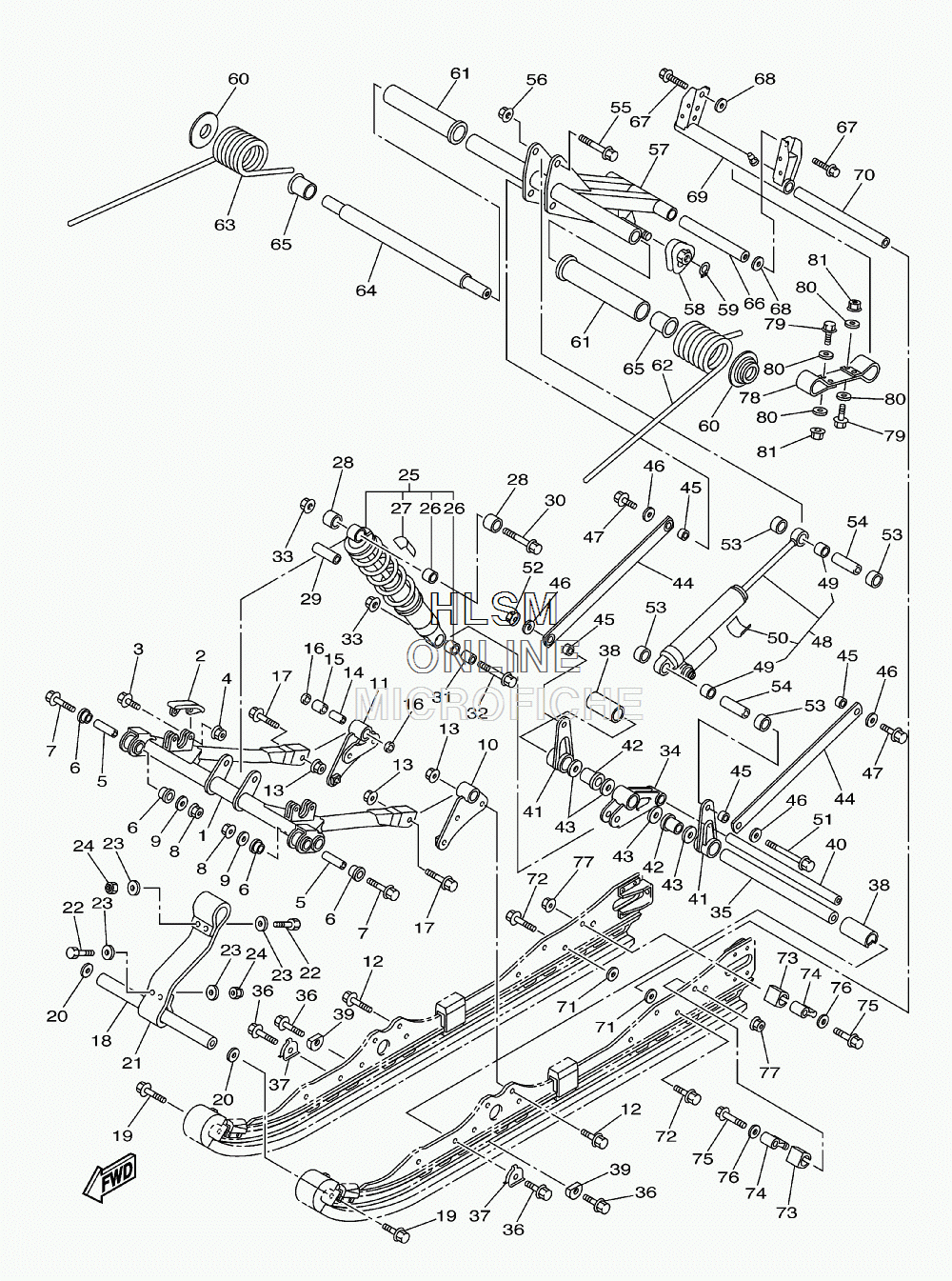

SUSPENSION - IDLER WHEELS W/ RAIL ASSY - TRACK 2 для Yamaha FX NYTRO - 2008 года выпуска`
-
№АртикулНазвание
-
18GL-47331-00-00 ARM, PIVOT 1ARM, PIVOT 1
-
28F3-47422-01-00 RUNNER, SLIDING 2RUNNER, SLIDING 2
-
390105-06164-00 BOLT, FLANGEBOLT, FLANGE
-
495602-06200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
58GL-47465-00-00 SHAFT 1SHAFT 1
-
690381-18068-00 BUSH, SOLIDBUSH, SOLID
-
790105-10135-00 BOLT, FLANGEBOLT, FLANGE
-
895602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
990201-10046-00 WASHER, PLATEWASHER, PLATE
-
108GL-47415-00-00 BRACKET 1BRACKET 1
-
118GL-47418-00-00 BRACKET 4BRACKET 4
-
1295812-10025-00 BOLT, FLANGEBOLT, FLANGE
-
1395602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
1490387-1012A-00 COLLARCOLLAR
-
1593315-31758-00 BEARINGBEARING
-
1693109-17071-00 OIL SEALOIL SEAL
-
1795812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
188FU-47485-00-00 SHAFT 3SHAFT 3
-
1990105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
2090201-10126-00 WASHER, PLATEWASHER, PLATE
-
218GL-47495-00-00 STOPPER 1STOPPER 1
-
2297002-06025-00 BOLTBOLT
-
2390201-06036-00 WASHER, PLATEWASHER, PLATE
-
2495702-06300-00 NUT, NYLONNUT, NYLON
-
258GL-47481-00-00 SHOCK ABSORBER 2SHOCK ABSORBER 2
-
2690384-17N50-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
274AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
288FU-47341-00-00 SPACERSPACER
-
2990387-10034-00 COLLARCOLLAR
-
3095812-10075-00 BOLT, FLANGEBOLT, FLANGE
-
3190387-10064-00 COLLARCOLLAR
-
3295812-10045-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
348GL-47349-00-00 BRACKET, ARM PIVOTBRACKET, ARM PIVOT
-
358GL-47487-00-00 SHAFT 5SHAFT 5
-
3690105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
378GL-47384-00-00 WASHERWASHER
-
3890387-26010-00 COLLARCOLLAR
-
398GL-47341-00-00 SPACERSPACER
-
408GL-47486-00-00 SHAFT 4SHAFT 4
-
418GL-47416-00-00 BRACKET 2BRACKET 2
-
4290386-25002-00 BUSHBUSH
-
4390201-256E4-00 WASHER, PLATE (T=1.5)WASHER, PLATE (T=1.5)
-
448GL-47490-00-00 RELAY ROD ASSYRELAY ROD ASSY
-
4590387-10066-00 COLLARCOLLAR
-
4690201-16027-00 WASHER, PLATEWASHER, PLATE
-
4790105-10287-00 BOLT, FLANGEBOLT, FLANGE
-
488GL-47480-00-00 SHOCK ABSORBERSHOCK ABSORBER
-
4990384-17N50-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
504AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
5190105-10288-00 BOLT, FLANGEBOLT, FLANGE
-
5295602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
538FU-47341-00-00 SPACERSPACER
-
5490387-10034-00 COLLARCOLLAR
-
5595812-10075-00 BOLT, FLANGEBOLT, FLANGE
-
5695602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
578GL-47332-00-00 ARM, PIVOT 2ARM, PIVOT 2
-
588ES-47447-00-00 HOOK 2HOOK 2
-
5999009-14400-00 CIRCLIPCIRCLIP
-
608ES-47467-00-00 PLATE, GUIDEPLATE, GUIDE
-
618GL-47445-00-00 PROTECTORPROTECTOR
-
628GL-47473-00-00 SPRING, REAR 1 (K=1900NMM/DEG)SPRING, REAR 1 (K=1900NMM/DEG)
-
628GL-47473-10-00 SPRING, REAR 1 (K=2100NMM/DEG) (OPT)SPRING, REAR 1 (K=2100NMM/DEG) (OPT)
-
638GL-47474-00-00 SPRING, REAR 2 (K=1900NMM/DEG)SPRING, REAR 2 (K=1900NMM/DEG)
-
638GL-47474-10-00 SPRING, REAR 2 (K=2100NMM/DEG) (OPT)SPRING, REAR 2 (K=2100NMM/DEG) (OPT)
-
648GL-47475-00-00 SHAFT 2SHAFT 2
-
6590381-28108-00 BUSH, SOLIDBUSH, SOLID
-
668GC-47488-00-00 SHAFT 6SHAFT 6
-
6790105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
6890201-19008-00 WASHER, PLATEWASHER, PLATE
-
698GC-47417-10-00 BRACKET 3BRACKET 3
-
708FU-47485-00-00 SHAFT 3SHAFT 3
-
7190201-10136-00 WASHER, PLATEWASHER, PLATE
-
7290105-10237-00 BOLT, FLANGEBOLT, FLANGE
-
738GC-47496-00-00 STOPPER 2STOPPER 2
-
748GN-47338-00-00 COLLARCOLLAR
-
7597012-10050-00 BOLTBOLT
-
7690201-10061-00 WASHER, PLATEWASHER, PLATE
-
7795602-10200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
788GL-47496-00-00 STOPPER 2STOPPER 2
-
7997002-06025-00 BOLTBOLT
-
8090201-06036-00 WASHER, PLATEWASHER, PLATE
-
8195702-06300-00 NUT, NYLONNUT, NYLON
