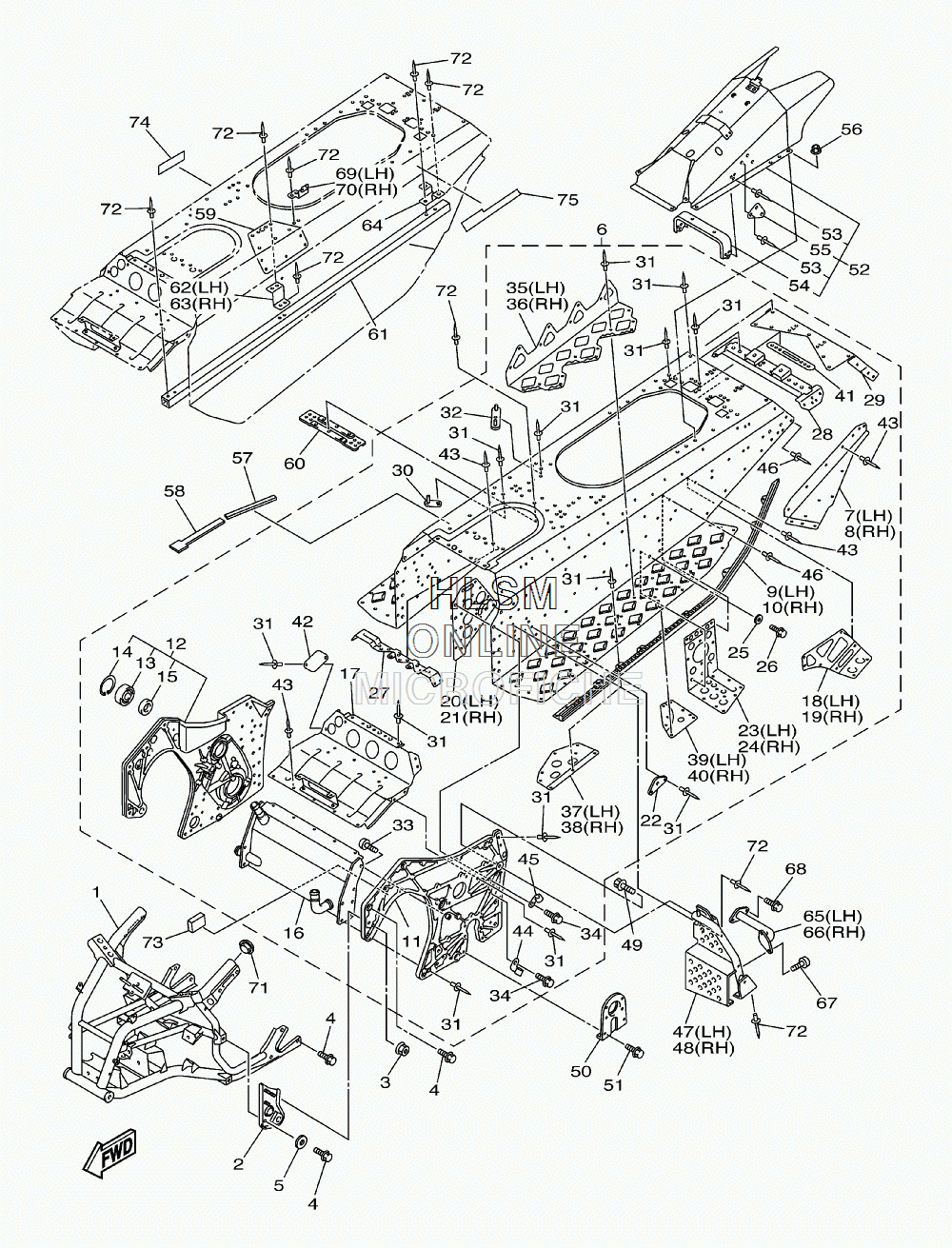

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO - 2008 года выпуска
-
№АртикулНазвание
-
18GL-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68GL-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
78GL-27452-00-00 ...BRACKET, FOOTREST 1...BRACKET, FOOTREST 1
-
88GL-27462-00-00 ...BRACKET, FOOTREST 2...BRACKET, FOOTREST 2
-
98GL-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
108GL-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
118GL-21925-00-00 ...REINF., HOUSING 1...REINF., HOUSING 1
-
128GL-21930-00-00 ...HOUSING, REINF SUB-ASSY (R.H)...HOUSING, REINF SUB-ASSY (R.H)
-
1393306-20601-00 ...BEARING...BEARING
-
1499009-62500-00 ...CIRCLIP...CIRCLIP
-
1593102-30012-00 ...OIL SEAL...OIL SEAL
-
168GL-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
178GL-21915-00-00 ...PANEL, SUB FRAME 4...PANEL, SUB FRAME 4
-
188GL-21963-00-00 ...PATCH 3...PATCH 3
-
198GL-21964-00-00 ...PATCH 4...PATCH 4
-
208GL-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
218GL-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
228FU-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
238GL-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
248GL-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
2590201-10064-00 ...WASHER, PLATE...WASHER, PLATE
-
2695812-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
278GL-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
288GL-2197N-00-00 ...BRACKET 7...BRACKET 7
-
298GL-21923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
308CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
3190267-47195-00 ...RIVET, BLIND (QTY:194)...RIVET, BLIND (QTY:194)
-
328GL-22512-00-00 ...BRACKET 8...BRACKET 8
-
3392012-08016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3495022-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
358HB-21927-00-00 ...REINFORCEMENT, RR. FOOTREST 1...REINFORCEMENT, RR. FOOTREST 1
-
368HB-21937-00-00 ...REINFORCEMENT, RR. FOOTREST 2...REINFORCEMENT, RR. FOOTREST 2
-
378GL-21961-00-00 ...PATCH 1...PATCH 1
-
388GL-21962-00-00 ...PATCH 2...PATCH 2
-
398GL-21965-00-00 ...PATCH 5...PATCH 5
-
408GL-21966-00-00 ...PATCH 6...PATCH 6
-
418GL-21295-00-00 ...NUT...NUT
-
428GL-2131D-00-00 ...PLATE, COVER...PLATE, COVER
-
4390267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
4490462-08061-00 ...CLAMP...CLAMP
-
4590462-08064-00 ...CLAMP...CLAMP
-
4690267-48016-00 ...RIVET, BLIND...RIVET, BLIND
-
478GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
488GL-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
4995827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
508GL-21920-00-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
5195812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
528GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
5390267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
548GL-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
558GL-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
5690176-06055-00 NUT, CROWNNUT, CROWN
-
578GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
588GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
598GL-21967-00-00 PATCH 7PATCH 7
-
608GL-21988-00-00 PATCH 8PATCH 8
-
618GL-21978-00-00 PROTECTOR, FRAMEPROTECTOR, FRAME
-
628GL-2196M-00-00 BRACKET, 5BRACKET, 5
-
638GL-2197M-00-00 BRACKET, 6BRACKET, 6
-
648GL-21443-00-00 BRACKET, PROTECTOR REARBRACKET, PROTECTOR REAR
-
658GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
668GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
6792012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6895822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
698GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
708GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
71180-22117-00-00 CAPCAP
-
7290267-47195-00 RIVET, BLINDRIVET, BLIND
-
738GL-21852-00-00 DAMPERDAMPER
-
748GL-2179D-00-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
758GL-2199A-00-00 GRAPHIC 1 FOR DPBSEGRAPHIC 1 FOR DPBSE
-
758GL-2199A-20-00 GRAPHIC 1 FOR BWS1GRAPHIC 1 FOR BWS1
