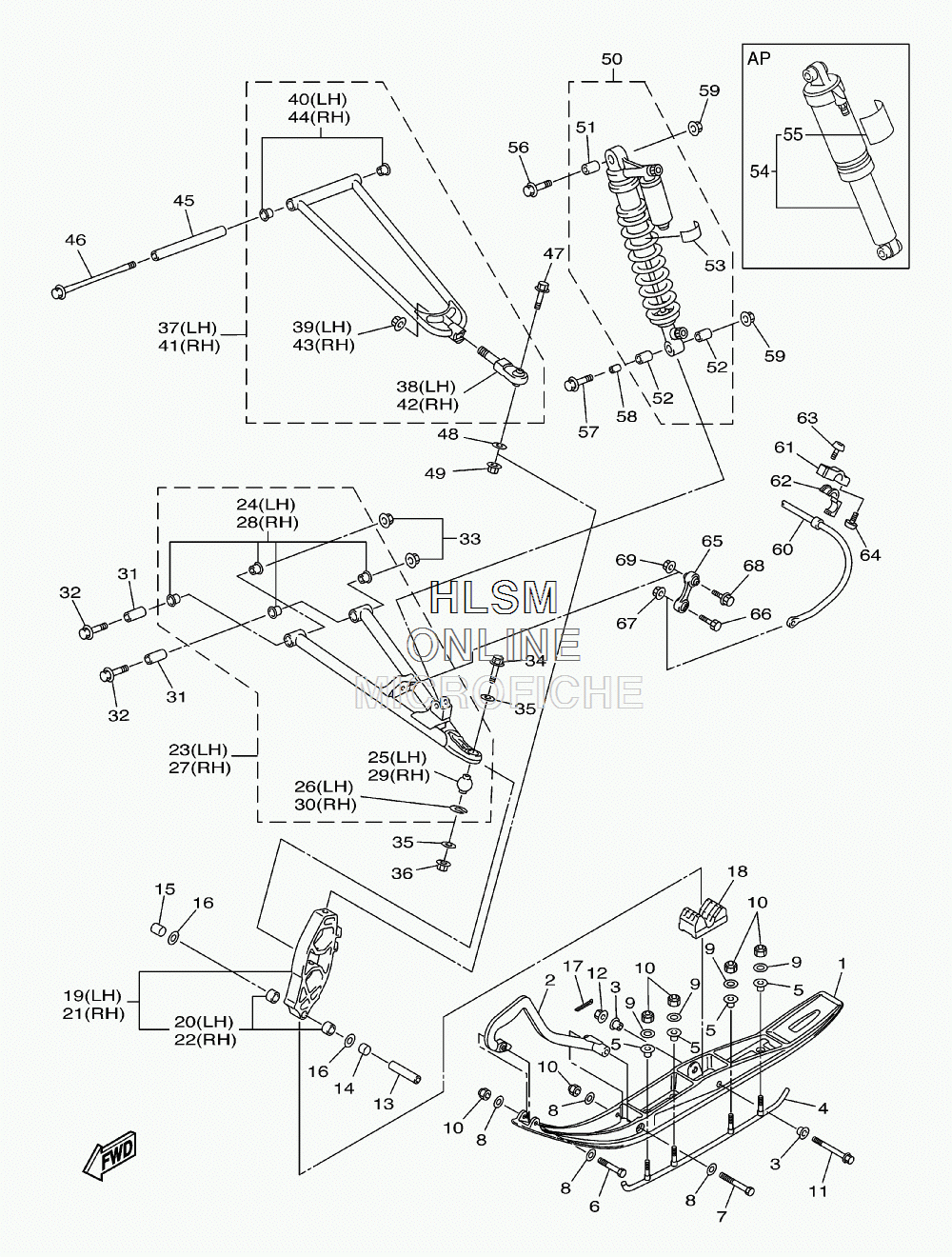

SUSPENSION - FRONT W/ SKI ASSY для Yamaha FX NYTRO - 2008 года выпуска`
-
№АртикулНазвание
-
18EX-F3711-00-BK SKI 1SKI 1
-
28EK-F3712-00-00 BLUE 8DM HANDLE PLASIC FOR DPBSE (OPT)BLUE 8DM HANDLE PLASIC FOR DPBSE (OPT)
-
28ES-F3712-00-00 8DM HANDLE PLASIC FOR BWS1 (OPT)8DM HANDLE PLASIC FOR BWS1 (OPT)
-
38EX-F3754-00-00 COLLAR, 1COLLAR, 1
-
48EK-F3731-01-00 RUNNER 1RUNNER 1
-
58EK-F3751-00-00 BUSH, SKI 1BUSH, SKI 1
-
69702M-08055-00 BOLTBOLT
-
79702M-08100-00 BOLTBOLT
-
890201-08784-00 WASHER, PLATEWASHER, PLATE
-
990201-086P8-00 WASHER, PLATEWASHER, PLATE
-
109570M-08300-00 NUT, NYLONNUT, NYLON
-
1190105-10070-00 BOLT, FLANGEBOLT, FLANGE
-
1295602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
1390387-1012H-00 COLLARCOLLAR
-
1490387-16017-00 COLLARCOLLAR
-
1590387-16018-00 COLLARCOLLAR
-
1690201-16022-00 WASHER, PLATEWASHER, PLATE
-
1791401-20020-00 PIN, COTTERPIN, COTTER
-
188GL-23743-00-00 STOPPER 1STOPPER 1
-
198GL-23501-00-00 STEERING KNUCKLE ASSY (LEFT)STEERING KNUCKLE ASSY (LEFT)
-
2090384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
218GL-23502-00-00 STEERING KNUCKLE ASSY (RIGHT)STEERING KNUCKLE ASSY (RIGHT)
-
2290384-16N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
238GL-23570-00-P0 FRONT LOWER ARM COMP. (LEFT) (S8 FOR DPBSE)FRONT LOWER ARM COMP. (LEFT) (S8 FOR DPBSE)
-
238GL-23570-00-P1 FRONT LOWER ARM COMP. (LEFT) (LRYS1 FOR BWS1)FRONT LOWER ARM COMP. (LEFT) (LRYS1 FOR BWS1)
-
2490381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
258GK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
2699009-35700-00 ...CIRCLIP...CIRCLIP
-
278GL-23580-00-P0 FRONT LOWER ARM COMP. (RIGHT) (S8 FOR DPBSE)FRONT LOWER ARM COMP. (RIGHT) (S8 FOR DPBSE)
-
278GL-23580-00-P1 FRONT LOWER ARM COMP. (RIGHT) (LRYS1 FOR BWS1)FRONT LOWER ARM COMP. (RIGHT) (LRYS1 FOR BWS1)
-
2890381-18N51-00 ...BUSH, SOLID...BUSH, SOLID
-
298GK-23579-00-00 ...BALL JOINT 2...BALL JOINT 2
-
3099009-35700-00 ...CIRCLIP...CIRCLIP
-
3190387-10065-00 COLLARCOLLAR
-
3290105-10211-00 BOLT, FLANGEBOLT, FLANGE
-
3395602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
3490105-10210-00 BOLT, FLANGEBOLT, FLANGE
-
3590201-10051-00 WASHER, PLATEWASHER, PLATE
-
3695602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
378GL-23540-00-P0 FRONT UPPER ARM COMP. (LEFT) (S8 FOR DPBSE)FRONT UPPER ARM COMP. (LEFT) (S8 FOR DPBSE)
-
378GL-23540-00-P1 FRONT UPPER ARM COMP. (LEFT) (LRYS1 FOR BWS1)FRONT UPPER ARM COMP. (LEFT) (LRYS1 FOR BWS1)
-
388GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
3995602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4090381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
418GL-23550-00-P0 FRONT UPPER ARM COMP. (RIGHT) (S8 FOR DPBSE)FRONT UPPER ARM COMP. (RIGHT) (S8 FOR DPBSE)
-
418GL-23550-00-P1 FRONT UPPER ARM COMP. (RIGHT) (LRYS1 FOR BWS1)FRONT UPPER ARM COMP. (RIGHT) (LRYS1 FOR BWS1)
-
428GK-23549-00-00 ...BALL JOINT 1...BALL JOINT 1
-
4395602-14200-00 ...NUT, SELF-LOCKING...NUT, SELF-LOCKING
-
4490381-15N50-00 ...BUSH, SOLID...BUSH, SOLID
-
4590387-10058-00 COLLARCOLLAR
-
4690105-10213-00 BOLT, FLANGEBOLT, FLANGE
-
4791312-10045-00 BOLTBOLT
-
4890201-10052-00 WASHER, PLATEWASHER, PLATE
-
4995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
508GL-2376A-00-00 ABSORBER ASSY 1ABSORBER ASSY 1
-
518FA-2331R-00-00 ...DAMPER, BUSH B...DAMPER, BUSH B
-
5290384-15N51-00 ...BUSH, BIMETAL FORMED...BUSH, BIMETAL FORMED
-
534AA-22259-70-00 ...LABEL, WARNING...LABEL, WARNING
-
548HB-2376A-00-00 ABSORBER ASSY 1 (OPT)ABSORBER ASSY 1 (OPT)
-
558GT-22259-50-00 ...LABEL, WARNING (OPT)...LABEL, WARNING (OPT)
-
5690105-10122-00 BOLT, FLANGEBOLT, FLANGE
-
5790105-10209-00 BOLT, FLANGEBOLT, FLANGE
-
5890387-10N59-00 COLLARCOLLAR
-
5995602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
608GN-2386E-10-00 BAR, STABILIZER FRONTBAR, STABILIZER FRONT
-
618GL-2386C-00-00 HOLDER, STABILIZER FRONTHOLDER, STABILIZER FRONT
-
628GN-2386G-10-00 BUSH, STABILIZER FRONTBUSH, STABILIZER FRONT
-
6392012-08030-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6492012-08016-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
658GN-2385L-00-00 JOINT, STABILIZER 1JOINT, STABILIZER 1
-
6697012-10035-00 BOLTBOLT
-
6795602-10200-00 NUT, SELF LOCKINGNUT, SELF LOCKING
-
6895812-08040-00 BOLT, FLANGEBOLT, FLANGE
-
6995602-08200-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
