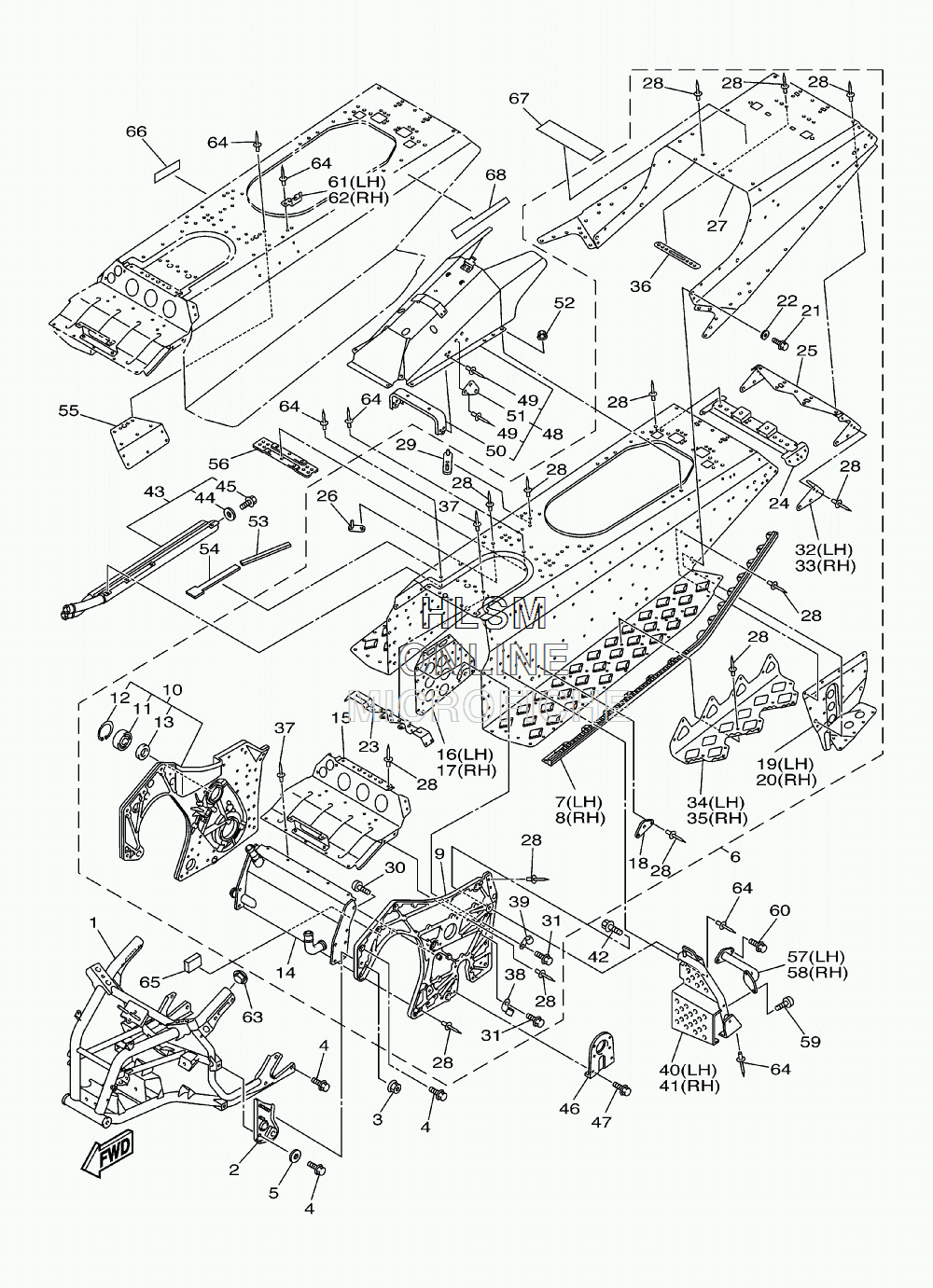

TUNNEL ASSEMBLY W/ LOWER NOSEPAN для Yamaha FX NYTRO MTX - 2008 года выпуска
-
№АртикулНазвание
-
18GL-21940-00-00 FRONT FRAME COMP.FRONT FRAME COMP.
-
28GL-2194E-00-00 BRACKET, ENGINEBRACKET, ENGINE
-
390185-08054-00 NUT, SELF-LOCKINGNUT, SELF-LOCKING
-
495827-08016-00 BOLT, FLANGEBOLT, FLANGE
-
590201-086A3-00 WASHER, PLATEWASHER, PLATE
-
68HA-21950-00-00 REAR FRAME COMP.REAR FRAME COMP.
-
78HA-21926-00-00 ...REINFORCEMENT, FOOTREST 1...REINFORCEMENT, FOOTREST 1
-
88HA-21936-00-00 ...REINFORCEMENT, FOOTREST 2...REINFORCEMENT, FOOTREST 2
-
98GL-21925-00-00 ...REINF., HOUSING 1...REINF., HOUSING 1
-
108GL-21930-00-00 ...HOUSING, REINF SUB-ASSY (R.H)...HOUSING, REINF SUB-ASSY (R.H)
-
1193306-20601-00 ...BEARING...BEARING
-
1299009-62500-00 ...CIRCLIP...CIRCLIP
-
1393102-30012-00 ...OIL SEAL...OIL SEAL
-
148HA-12440-00-00 ...HEAT EXCHANGER ASSY...HEAT EXCHANGER ASSY
-
158GL-21915-00-00 ...PANEL, SUB FRAME 4...PANEL, SUB FRAME 4
-
168HA-21943-00-00 ...BRACKET, MAIN TRACK 1...BRACKET, MAIN TRACK 1
-
178HA-21953-00-00 ...BRACKET, MAIN TRACK 2...BRACKET, MAIN TRACK 2
-
188FU-21919-00-00 ...BRACKET, MAIN TRACK 3...BRACKET, MAIN TRACK 3
-
198HA-21944-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
208HA-21954-00-00 ...BRACKET, RR. TRACK SUSPENSION...BRACKET, RR. TRACK SUSPENSION
-
2195812-10020-00 ...BOLT, FLANGE...BOLT, FLANGE
-
2290201-10035-00 ...WASHER, PLATE...WASHER, PLATE
-
238GL-2194H-00-00 ...PROTECTOR, MUFFLER...PROTECTOR, MUFFLER
-
248GL-2197N-00-00 ...BRACKET 7...BRACKET 7
-
258HA-21923-00-00 ...REINEFORCEMENT, FRAME REAR 1...REINEFORCEMENT, FRAME REAR 1
-
268CR-2194N-00-00 ...BRACKET, FUEL TANK 1...BRACKET, FUEL TANK 1
-
278HA-21917-00-00 ...PANEL, SUB FRAME 6...PANEL, SUB FRAME 6
-
2890267-47195-00 ...RIVET, BLIND (QTY:267)...RIVET, BLIND (QTY:267)
-
298GL-22512-00-00 ...BRACKET 8...BRACKET 8
-
3092012-08016-00 ...BOLT, BUTTON HEAD...BOLT, BUTTON HEAD
-
3195022-08016-00 ...BOLT, FLANGE...BOLT, FLANGE
-
328HA-21961-00-00 ...PATCH 1...PATCH 1
-
338HA-21962-00-00 ...PATCH 2...PATCH 2
-
348HB-21927-00-00 ...REINFORCEMENT, RR. FOOTREST 1...REINFORCEMENT, RR. FOOTREST 1
-
358HB-21937-00-00 ...REINFORCEMENT, RR. FOOTREST 2...REINFORCEMENT, RR. FOOTREST 2
-
368GL-21295-00-00 ...NUT...NUT
-
3790267-48010-00 ...RIVET, BLIND...RIVET, BLIND
-
3890462-08061-00 ...CLAMP...CLAMP
-
3990462-08064-00 ...CLAMP...CLAMP
-
408GL-21960-00-00 FOOTREST COMP. 1FOOTREST COMP. 1
-
418GL-21970-00-00 FOOTREST COMP. 2FOOTREST COMP. 2
-
4295827-10030-00 BOLT, FLANGEBOLT, FLANGE
-
438HA-1241A-00-00 HEAT EXCHANGER ASSY 4HEAT EXCHANGER ASSY 4
-
4490210-06006-00 ...WASHER, SEAL...WASHER, SEAL
-
4597022-06010-00 ...BOLT...BOLT
-
468GL-21920-00-00 HOUSING, REINF SUB-ASSY (L.H)HOUSING, REINF SUB-ASSY (L.H)
-
4795812-08020-00 BOLT, FLANGEBOLT, FLANGE
-
488GL-21916-00-00 PANEL, SUB FRAME 5PANEL, SUB FRAME 5
-
4990267-47195-00 ...RIVET, BLIND...RIVET, BLIND
-
508GL-2194L-00-00 ...STAY, MUFFER...STAY, MUFFER
-
518GL-21946-00-00 ...BRACKET, SEAT FITTING...BRACKET, SEAT FITTING
-
5290176-06055-00 NUT, CROWNNUT, CROWN
-
538GL-22151-00-00 SEAL, GUARDSEAL, GUARD
-
548GL-22152-00-00 SEAL, GUARDSEAL, GUARD
-
558GL-21967-00-00 PATCH 7PATCH 7
-
568GL-21988-00-00 PATCH 8PATCH 8
-
578GL-27471-00-00 BAR, FOOTREST 1BAR, FOOTREST 1
-
588GL-27472-00-00 BAR, FOOTREST 2BAR, FOOTREST 2
-
5992012-06014-00 BOLT, BUTTON HEADBOLT, BUTTON HEAD
-
6095822-06012-00 BOLT, FLANGEBOLT, FLANGE
-
618GL-21151-00-00 BRACKET, REAR FENDER 1BRACKET, REAR FENDER 1
-
628GL-21152-00-00 BRACKET, REAR FENDER 2BRACKET, REAR FENDER 2
-
63180-22117-00-00 CAPCAP
-
6490267-47195-00 RIVET, BLINDRIVET, BLIND
-
658GL-21852-00-00 DAMPERDAMPER
-
668GL-2179D-00-00 PLATE, EPA OFFROAD 2PLATE, EPA OFFROAD 2
-
678HA-77762-E0-00 LABEL, WARNING 2LABEL, WARNING 2
-
688GL-2199A-00-00 GRAPHIC 1GRAPHIC 1
